Product description:
- Name: Laser Head Engraving Module
- Material: hard aluminum + brass
- Finish: Black anodized + sandblasting

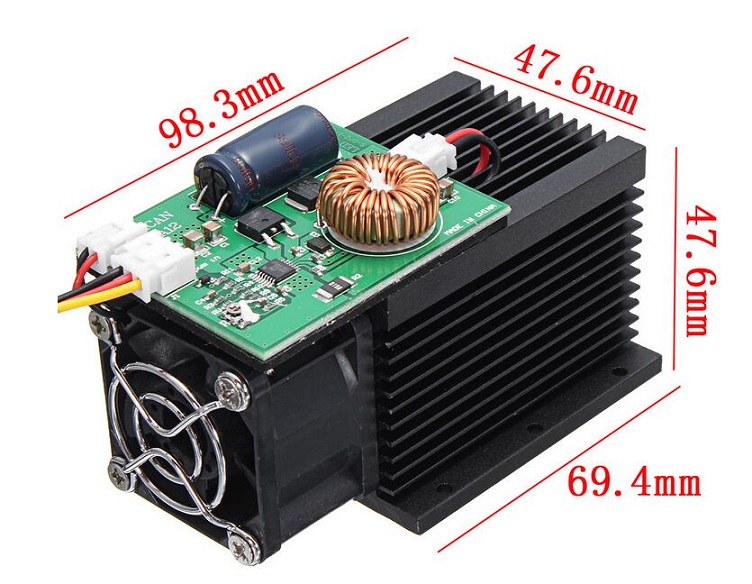

- Size: approx. 47.6mm x 47.6mm x 98.3mm
- Wavelength: 445-450nm (Blu-ray)
- Output Power: pulse 15W average 8W
- Modulation frequency: TTL can be modulated,0v- Off,5v open,pwm frequency <9Khz
- Operating voltage:DC12V
- Working Current: <3A
- Focal length: 16mm
- Focusable:Yes
- Working Temperature:+15℃--+45℃
- Heat dissipation: Fan
Application materials: stainless steel,iron,aluminum,ceramics,stone,wood,bamboo,leather,plastics,etc.
Note:
1.Do not expose the eyes,otherwise it will cause permanent blindness,the consequences at your own risk.
2.Prohibited for use in flammable and gas atmospheres.
3.Prohibit children from exposure to this laser product.
4.Do not open the module to avoid damage.
Package List:

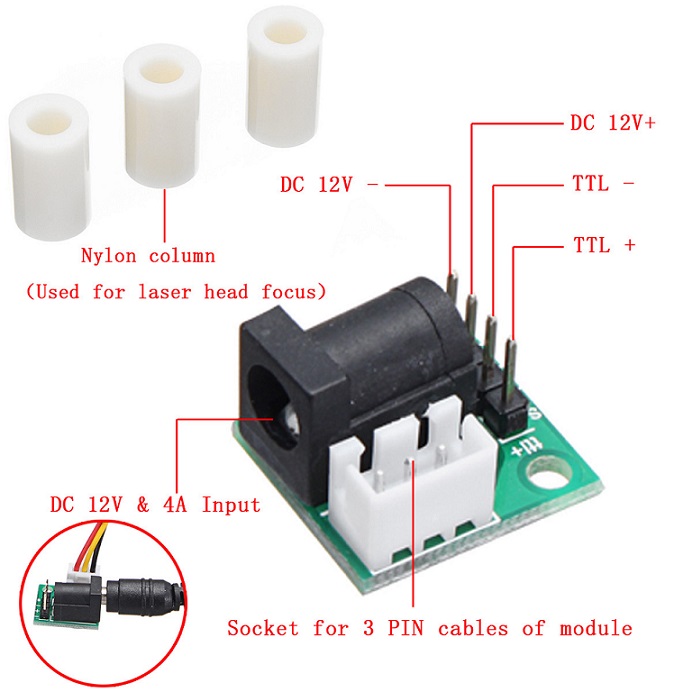

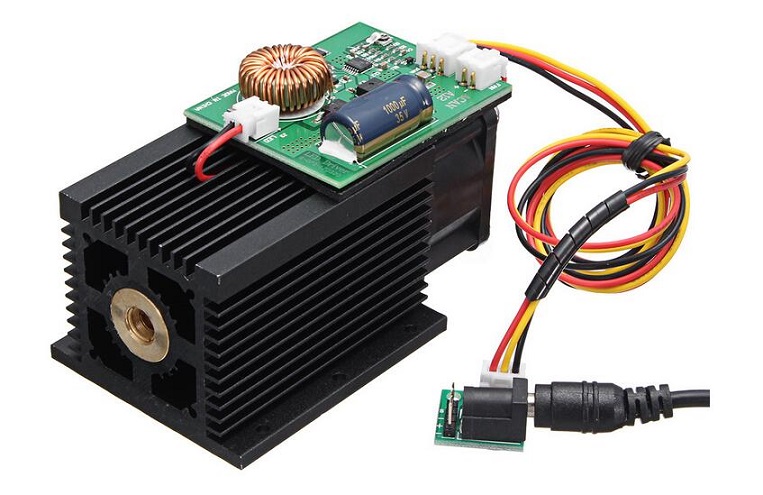

- 1 x Laser module with TTL Driver board
