Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $53.96 | $52.86 | $51.21 | $49.00 | Contact US |

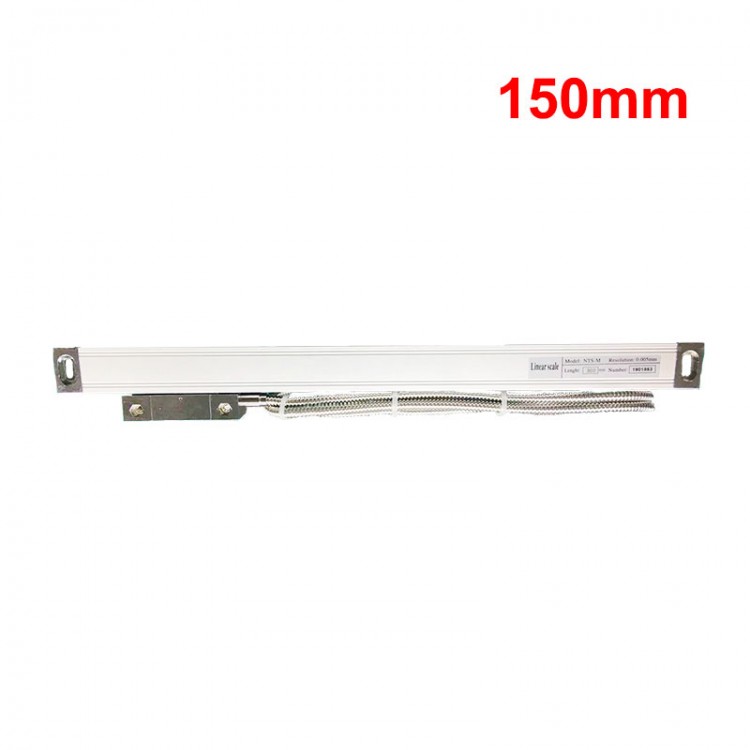

150MM/5.9" 5μm Linear Scale Grating Ruler Perfect for Digital Readout Grinding Milling EDM Machines
Features:
- 150mm/5.9" 5μm linear scale
- Premium quality and affordable price
- Marked by laser; resistant to interference and high temperature
- Made of anode treated aluminum alloy
- Soft metal housing protects signal cable
- The average service life is more than 10 years
- Can be used with digital readout
- Suitable for milling, grinding and EDM machines, etc.
Specifications:
- Measuring range: 150mm/5.9"
- Mounting length: 140mm/5.5"
- Total length: 290mm/11.4"
- Resolution: 5μm (0.005mm) default
- Voltage: 5V±5% 80mA default (24V optional)
- Signal output: TTL default (ELA422 optional)
- Cable length: 3m/9.8ft by default (other lengths can be customized for an additional fee)
- Accuracy: ±3/±5/±10
- Traveling speed: 60m/min
- Working temperature: 0-50°C
- Plug: DB9 pin
- Grating period: 0.02mm (50 line pairs/mm)
Package Included:
- 1 x Linear Scale
