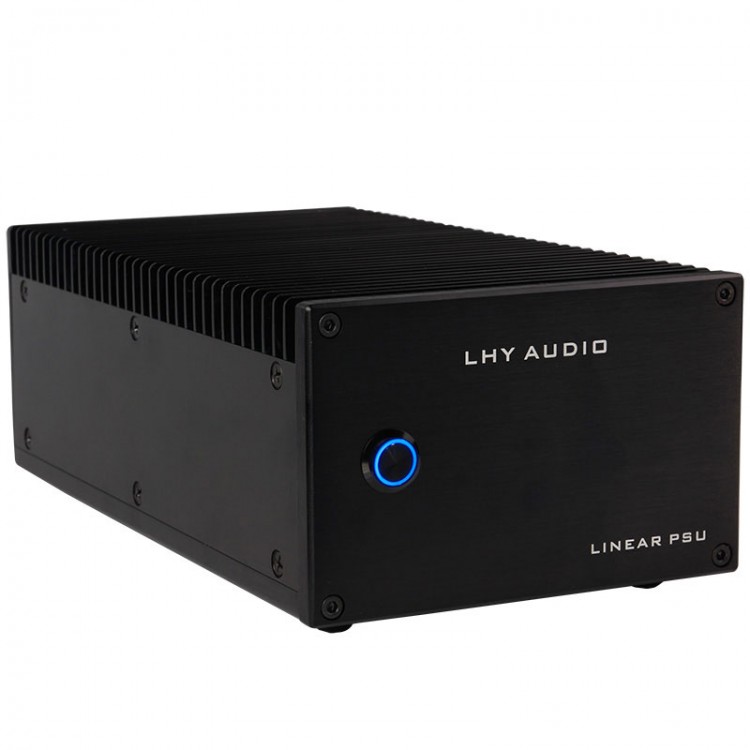

160W Power Supply for DAPHILE Digital Broadcast Small Host DC Linear Regulated Power Supply
Description:

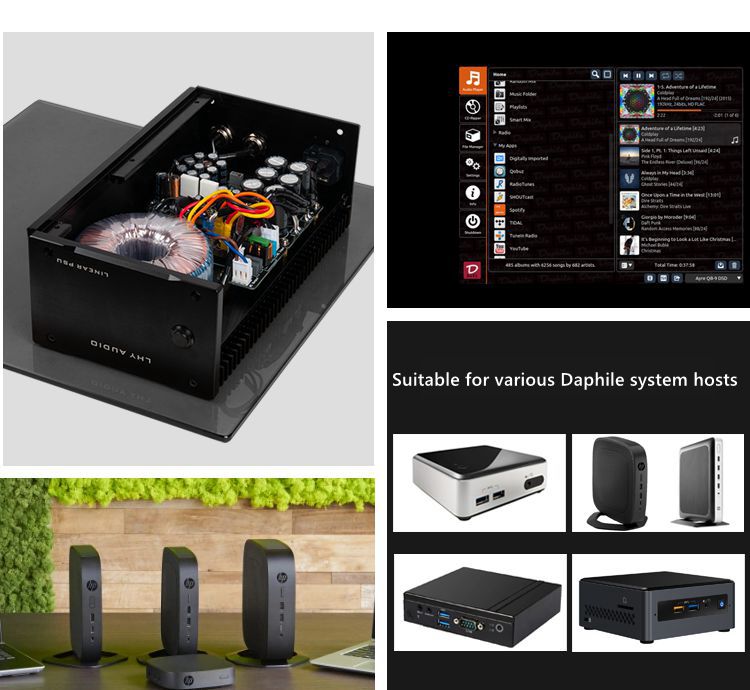

- Now it is launched to provide 120W \160W finished linear power supply for DAPHIL host. Adopt new imported high-power ring cow, ultra-low noise OP+MOS discrete voltage regulator circuit with excellent performance, high-speed and low-resistance fever electrolytic capacitors and other fever materials.
- The transformer adopts imported for TALEMA /multicomp PRO /RS PRO /NORATEL120VA or 160VA ring cattle
- The fuse adopts for Swiss Schute gold-plated fuse
- The output line is standard with pure manual oxygen-free copper silver-plated line 2P to DC5.5/2.5
Parameters:
- Output voltage: DC12V \DC18V \DC19V \DC20V, you can choose one, please note when placing an order, the default is DC12V

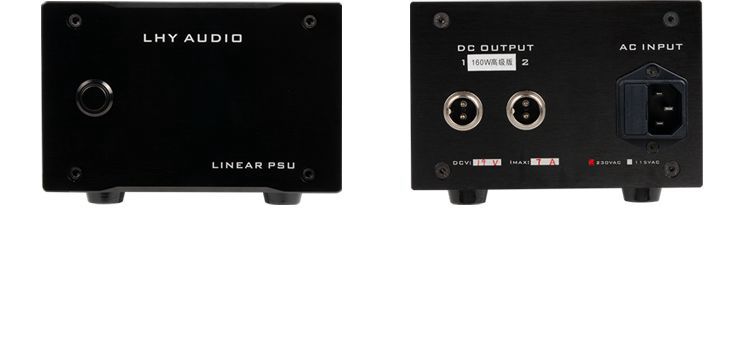

- Output terminals: 2 x 2P aviation output female sockets
- Size: L140 x W260 x H90MM
- Power: 120W/160W
- Weight: 4KG / 4.5KG
Package Included:
- 1 x 160W power supply
- 1 x DC line
- 1 x Chinese standard power cable (British standard or American standard can be required)
