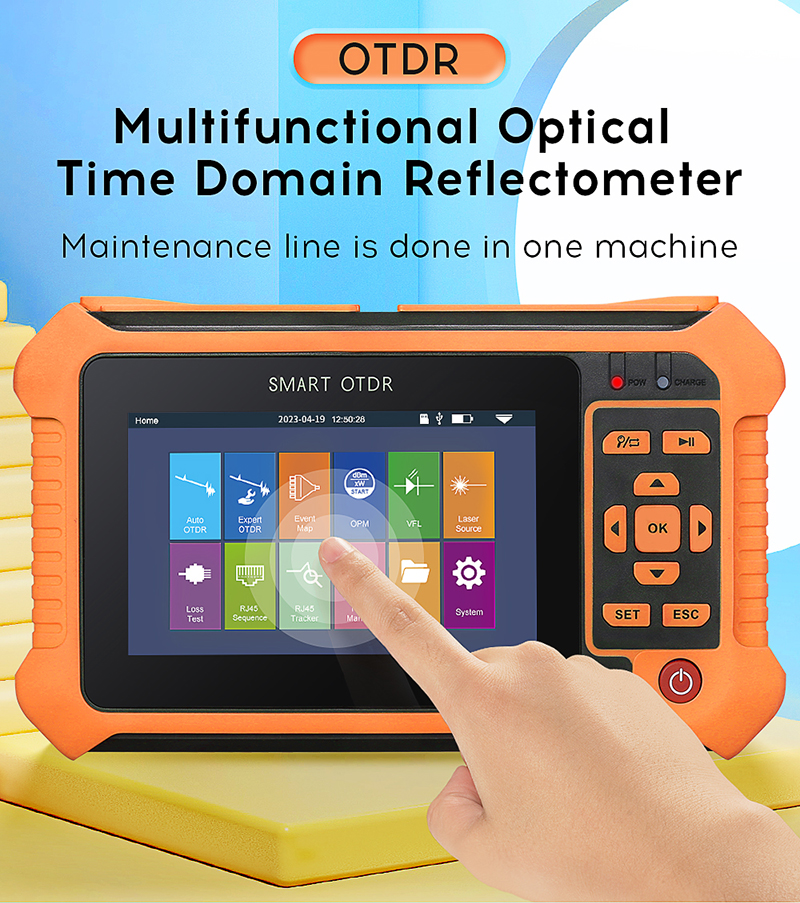

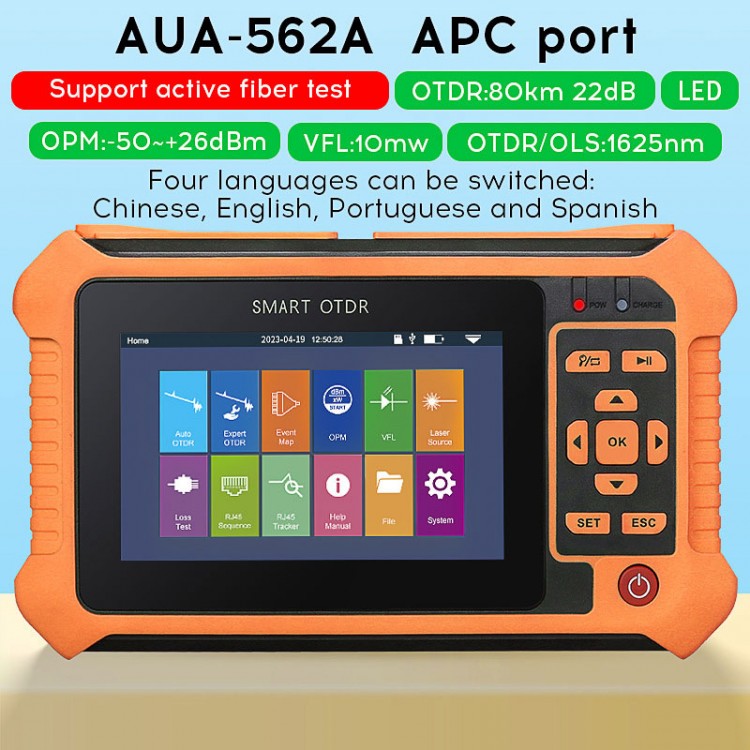

1625nm AUA562A APC Port OTDR Optical Time Domain Reflectometer Support Active Fiber Test 4.3-inch Touch Screen

1625nm AUA562A APC Port OTDR Optical Time Domain Reflectometer Support Active Fiber Test 4.3-inch Touch Screen

Specification:

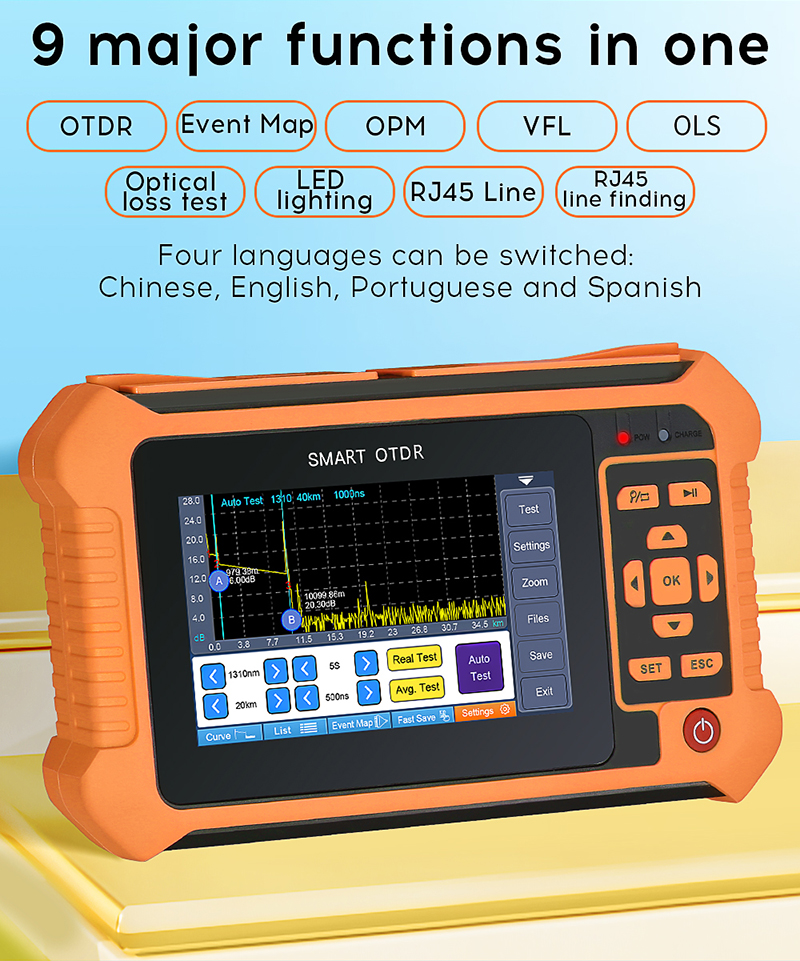

OTDR:
- Wavelength: 1625nm
- Dynamic range: 22dB
- Measuring distance: 0 - 80km
- Optical type: 9/125um SM
- Interface: APC
- Peak value: ≥30mW
- Reflection event blind spot: 2m
- Blind spot of depletion events: 12m
- Measuring accuracy: about±(1m + 2 x 10(-4) x distance)
- Storage testing records: >100,000 groups

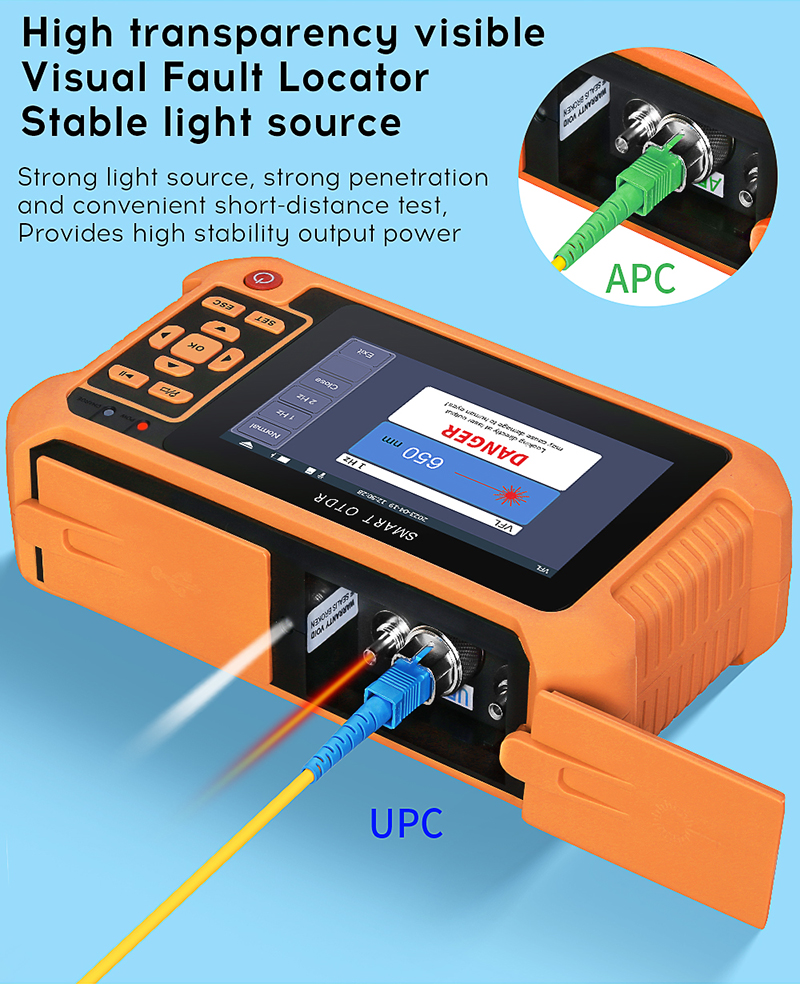

Visual Fault Locator:
- Wavelength: 650nm
- Output power: ≥10mW
- Output mode: CW, 1Hz, 2Hz
- Testing fiber type: SM/MM

Optical Power Meter:
- Measuring range: -50 ~ +26dBm
- Wavelength: 800 ~ 1650nm
- Testing wavelength (nm): 850/980/1270/1300/1310/1490/1550/1577/1625/1650
- Detector type: InGaAs
- Measuring precision: <±3% (-10dBm/22℃)
- Resolution: linearity: 0.1%; non-linearity: 0.01dBm
- Adapter type: 2.5mm general interface

Stable Light Source:
- Luminous type: FP-LD
- Output wavelength (nm): same as OTDR (1625nm)
- Interface type: SC/FC
- Output power: ≥-5dBm
- Output stability (dBm): ±0.04 at 20℃ at 15min
- Output frequency: CW/270Hz/1KHz/2KHz
- Testing optical type: SM

Optical Loss Testing:
- Interface type: FC/SC
- Testing range: 0 - 30dB
- Measuring accuracy: 10%

Others:

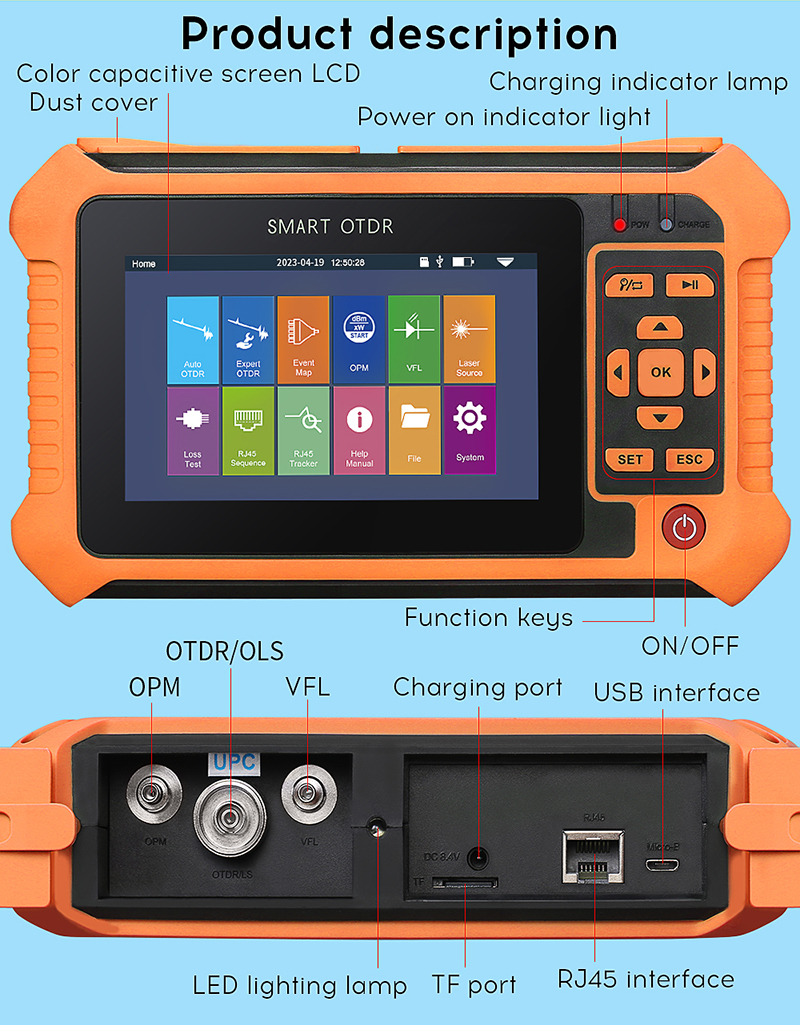

- LCD: 4.3-inch, 800 x 480 pixel, IPS capacitor type touch screen

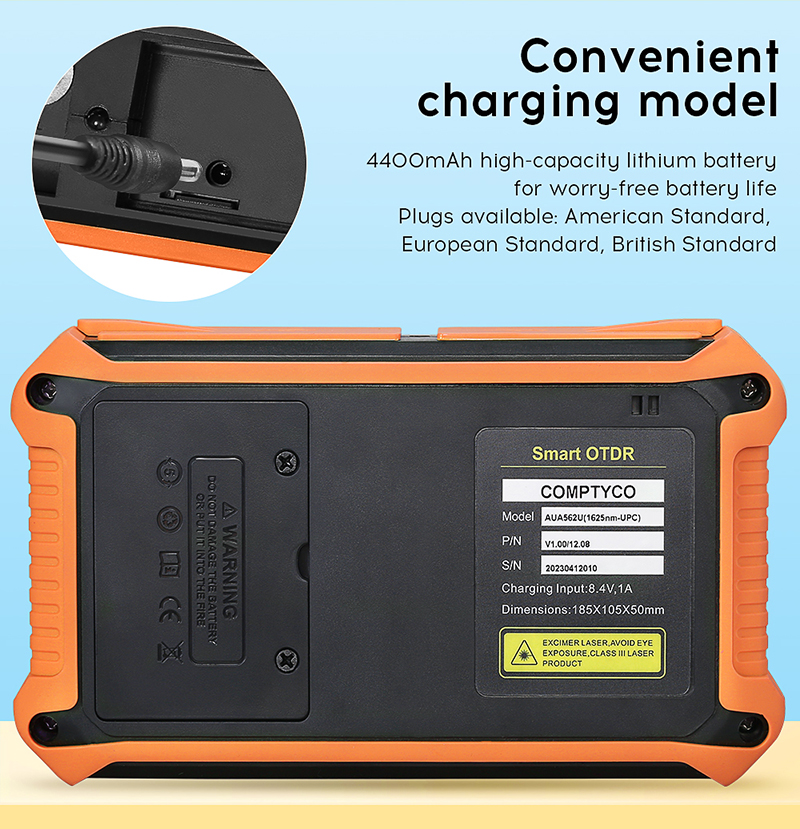

- Battery: built-in 7.4V/4400mAH lithium battery, >5000 times test
- Temperature: testing temperature: -5 ~ 50℃; storage temperature: -10 ~ 60℃
- Humidity: 0 ~ 85% (non-condensing)

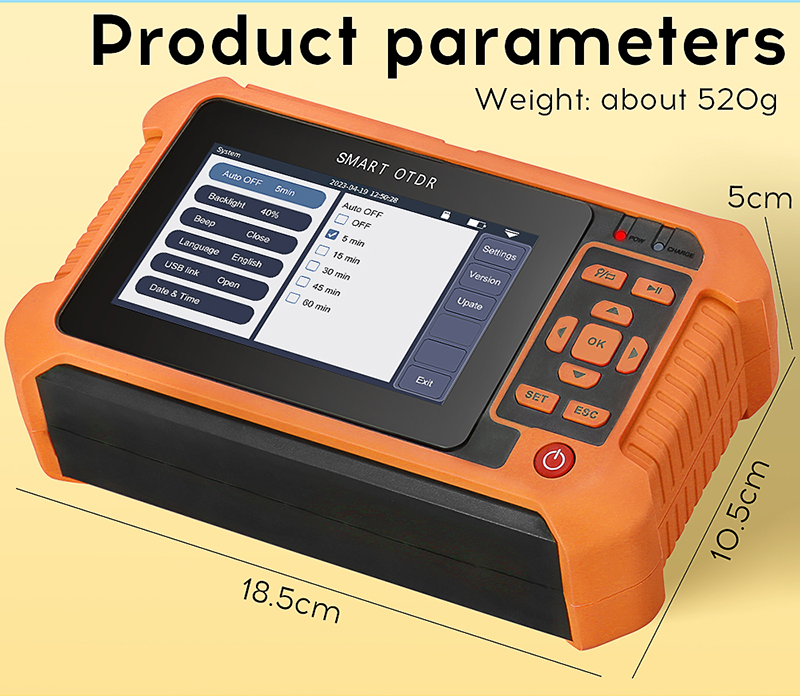

- Size: 185 x 105 x 50mm
- Weight: 520g

Package Included:
- 1 x Host

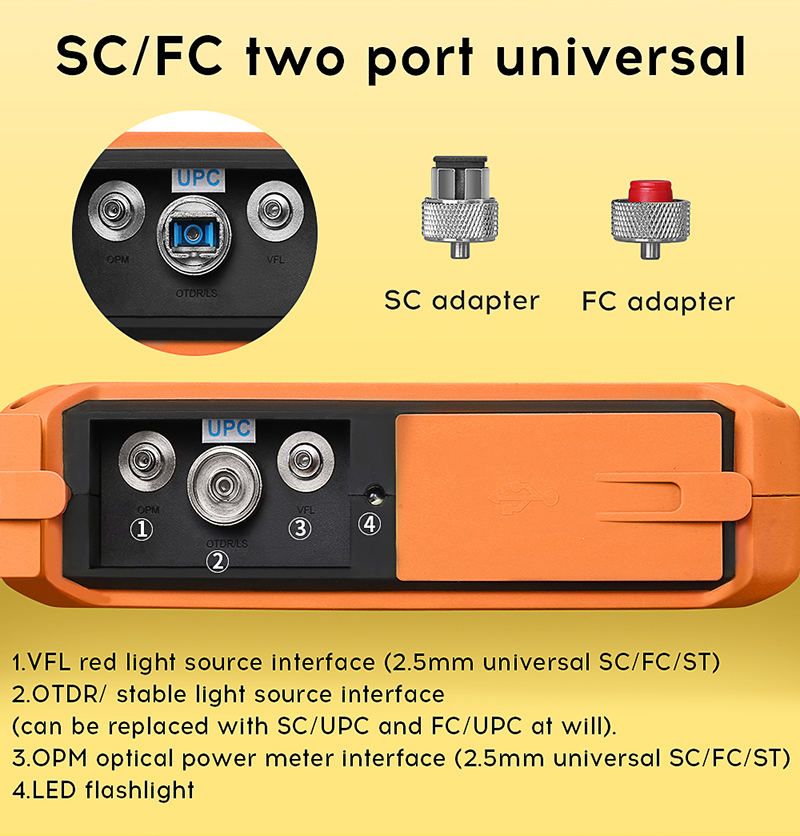

- 1 x SC Adapter
- 1 x FC Adapter (installed on the machine)

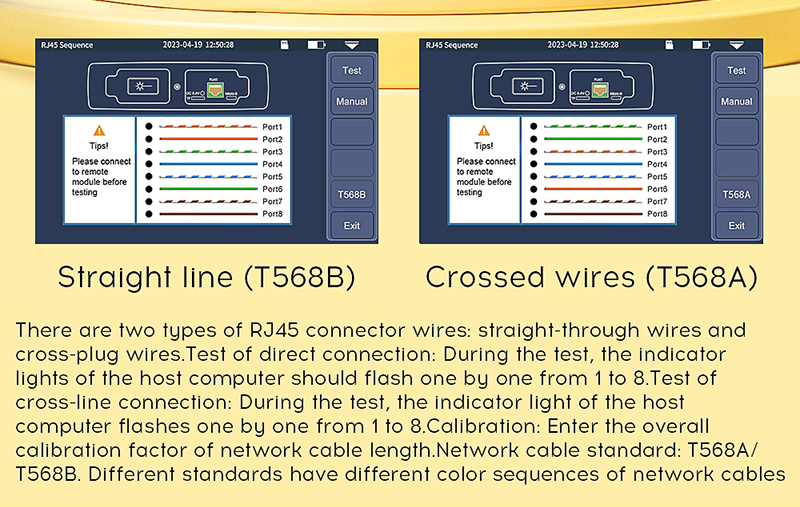

- 1 x RJ45 Receiver
- 1 x RJ45 Adapter Cable

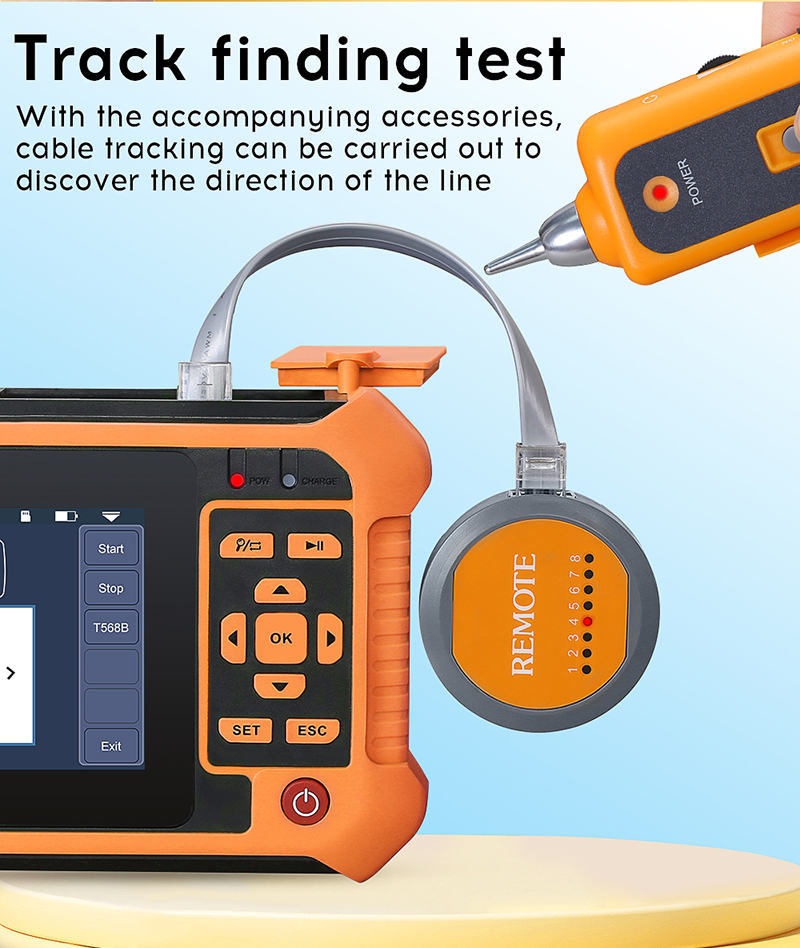

- 1 x RJ45 Remote Adapter
- 1 x RJ11 Alligator Clip
- 1 x Charger
- 1 x Data Cable
- 1 x Cleaning Cotton
- 1 x Earphone
- 1 x User Manual
- 1 x Portable Bag
