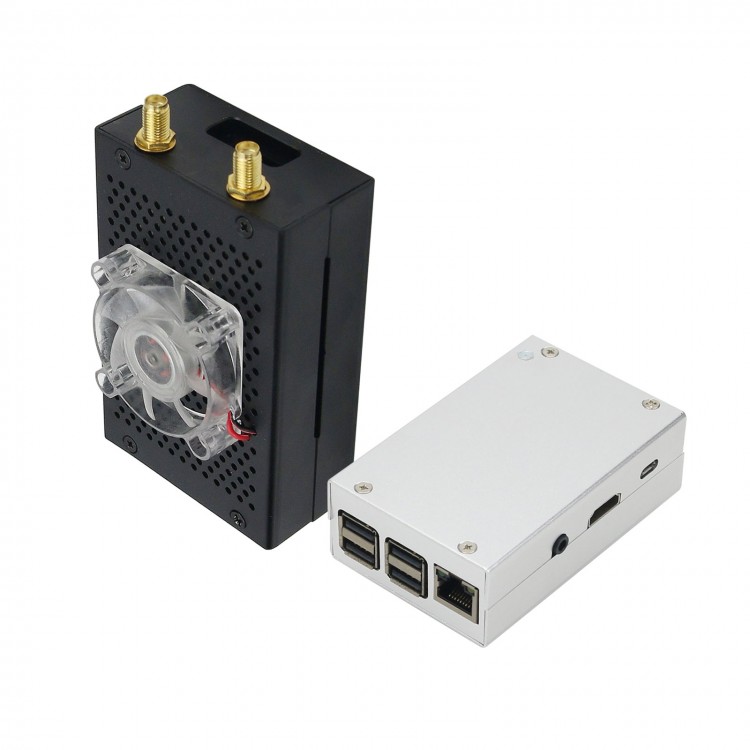

16bit 62M Real-time Bandwidth Network Shared SDR Receiver Support GPS Positioning

16bit 62M Real-time Bandwidth Network Shared SDR Receiver Support GPS Positioning

Description:
-This SDR has been doing well for several months and is now released.

-62M real-time bandwidth, spike a group of 32M bandwidth, ruthlessly even works that kill yourself.

-The software and hardware refer to and draw on the famous kiwisdr. The hardware, FPGA and software are all designed according to 16bit, using LTC2208 16bit ADC, direct sampling, and the maximum real-time bandwidth is adjusted to 62M.

-Using Raspberry Pi 3B as the bottom plate, the performance is not at the same level as BBK. It starts quickly, compiles quickly, decodes quickly, and the operating speed is greatly improved. Can support 4 DRM online at the same time.

-At present, the maximum number of simultaneous online users kiwisdr remains the same, and will try to increase it in the future.

-Support GPS positioning, you can correct the local clock after GPS lock, no frequency offset problem. You can set up sharing and remote access via public IP or reverse proxy. Or access via LAN.

-Support online upgrade, (independent branch maintenance), part of the code of this project has entered the kiwisdr code warehouse, kiwisdr can be compatible with the project software through the adapter board, but due to kiwisdr hardware limitations, it can not achieve 62M bandwidth and 16bit bit depth sampling.

Package Included:
1 x SDR Receiver
