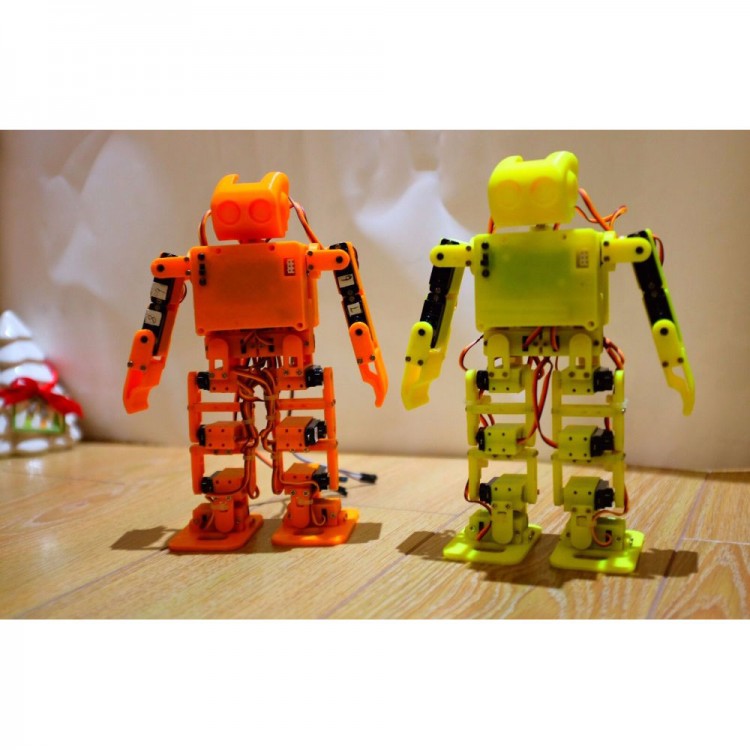

17DOF Dancing Robot Kit Educational Robot Kit Set Unassembled for Arduino Support WiFi Control
Features:
- 17 DOF robot for educational and DIY uses
- Support wireless remote control WiFi, new graphical debugging software
- Provide 3D assembly instructions, robot control programs, etc.
- 17 servo motors, from which the internal feedback ensures accurate output angle
- High-strength composite pla material, beautiful shape, light and compact structure
- The robot can complete walking, dancing, fighting and other actions, players can also debug and program a variety of interesting action programs.
- Cost-effective high quality robot kit
Parameters:
- Controller Drive Board: Robot-specific control panel
- Control Way: Support USB online programming, wireless WiFi remote control
- Port Expansion: 2 x Connecting Ports; 1 x SPI Port; 1 x Uart Series Port
- Debugging Programming: support for graphical programming
- Optional Color: Orange, Yellow
- Robot Size: 25 x 12 x 15 cm
- Weight: 1kg
Structural Features:
- 17 degrees of freedom: legs with 10 dof, hands with 6 dof, head with 1 dof
- Professional Servos: standard 180 degree motion range, PWM pulse width control mode, 2 kg torque, high precision
- High-strength composite PLA for whole body structural parts, M2 and below for all mounting holes, less error, easy to install
Package Included:
- 1 x Set of Robot Frame
- 17 x Servos
- 17 x Plastic Servo Holders
- 14 x Bearings
- 1 x Power Cord
- 1 x Set of Screws
- 1 x Charger
- Several Ribbons
- 1 x Assembly Manual
- 1 x Controller Information
Note:
- Self assembling is needed.
- Please leave a message about your favorite color when purchasing. Thank you!
- This robot is not a children's toy. Please use the supervision of your teacher or parent when using it.
