| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $12.60 | $12.35 | $11.96 | $11.45 | Contact US |
1GHz–8.5GHz Linearly Polarized UWB Antenna Ultra Wideband Antenna w/ High Gain SMA Female Connector
Purchase Notice:
Due to potential variations in testing instruments and methods between our store and individual customers, as well as differences arising from prototyping and manual soldering during production, product parameters are controlled within a certain acceptable range. Therefore, all test data provided in the product description represent typical values (approximately 80% accuracy).
Please note that returns will not be accepted on the basis of specification discrepancies that are not considered quality issues.
Description:

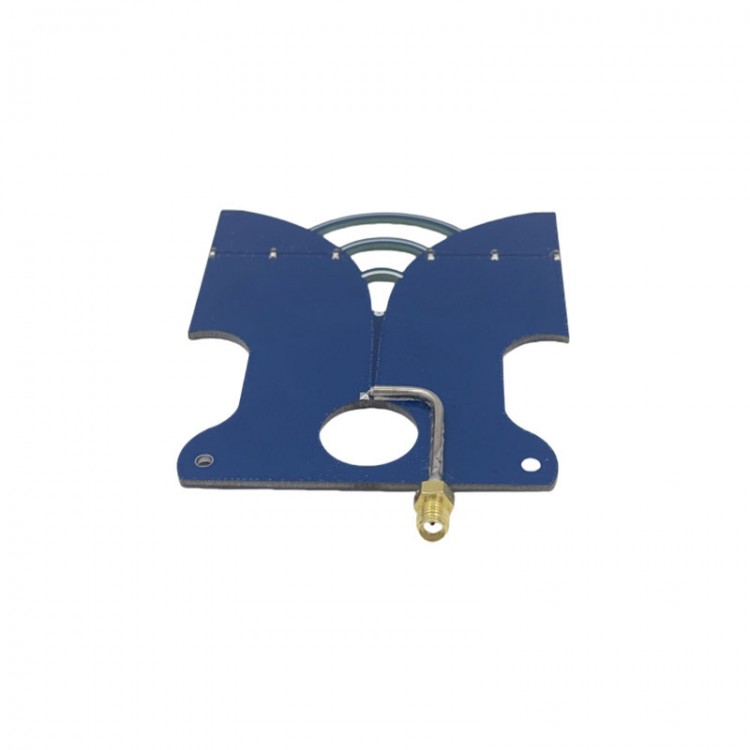

This is a coplanar linearly polarized directional ultra-wideband (UWB) antenna. The final operating frequency ranges from 1 GHz to 8.5 GHz, with a VSWR of ≤1.8 (typical), and a return loss of less than -12 dB (typical) across the working bandwidth. This antenna is suitable for signal transmission and reception in applications such as UHF communication, aviation, positioning systems, image transmission, meteorology, and astronomy.
Specifications:
* Operating Frequency: 1 GHz – 8.5 GHz
* Impedance: 50 Ω
* Gain: 4–11dBi
* VSWR: <1.8 (typical)
* Maximum Input Power: 50 W
* Optional Connector Types: SMA female or SMA male
* Antenna Size: 100mm x 89mm (excluding the size of the connector)
Packing List:
* 1 x Ultra Wideband Antenna
Packaging Details:
* G.W.: 0.22kg
