1Hz-12.4G RF Frequency Counter Precision Frequency Meter 11Bit/s High Speed FA-2-12.4G

1Hz-12.4G RF Frequency Counter Precision Frequency Meter 11Bit/s High Speed FA-2-12.4G

Specifications:
- CH1 frequency range: 1Hz-300MHz
- CH1 input impedance:50 OHM/1 Meg-ohm
- CH1 input sensitivity:
  50 OHM: 25mVrms-2Vrms
  1 Mega-ohm: 25mVrms-2Vrms
- CH1 frequency accuracy:
  0.1s gate: 0.001Hz@10M
  1s gate: 0.0001Hz@10M
  10s gate: 0.00001Hz@10M
- CH1 test speed:11 bit/s@10MHz
- CH1 power test range: -50DBM to +20DBM, 1M-550M@50 OHM
- CH1 power measuring accuracy: 0.5DB@10MHz
- CH1 interface: BNC
- CH2 frequency range: 200M-12.4G
- CH2 input impedance:50 OHM
- CH2 frequency accuracy:
  0.1s gate: 1Hz@1GHz
  1s gate: 0.01Hz@1GHz
  10s gate: 0.001Hz@1GHz
- CH2 input power: -20DBM to +13DBM@0.2-10G
- CH2 Interface: SMA
- Gate time: 0.1S/1S/10S
- Internal frequency reference: 10MHz
- Type of internal reference: OCXO
- Internal reference aging: 0.5Hz/year
- Power of internal reference output port: 4dBm
- Input power of external reference: 0DBM to +20dbm

Operating Modes:
- CH1 frequency measurement mode
- CH1 statistics mode
- CH2 frequency measurement mode
- CH2 statistics mode

Functions of Front Panel:
- MODE: Switch operation modes
- GATE: Select gate time
- RST: Restart to test
- CH1: Channel 1 input
- CH2: Channel 2 input

Functions of Rear Panel:
- 10M REF INPUT: External 10M reference input
- 10M REF OUTPU: 10M reference output
- USB: USB port
- STD ADJ: Internal OCXO frequency trimming
- ON/OFF: Power switch
- With DC socket

Data Types of Statistics Mode:
Including average, maximum, minimum, peak-to-peak value.

Other Parameters:
- Power supply port: 11.7-12.9V
- Start: <0.4A
- Stability: <0.2A
- Weight: 350g

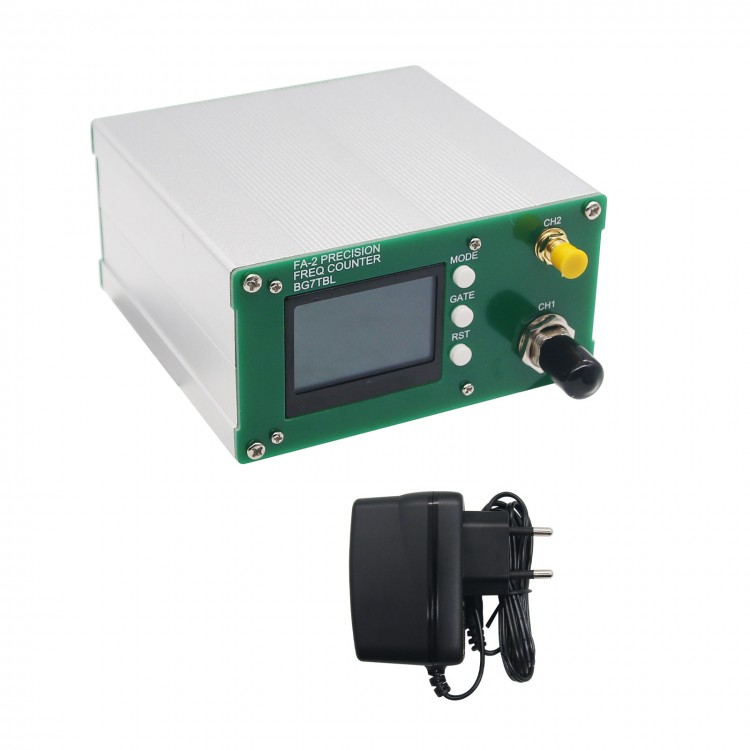

Package Included:
- 1 x Frequency Meter
- 1 x DC12V Power Adapter

Optional Battery Parts:
1. External Battery Parts: with 3pcs 12V 2.6AH 18650 batteries
2. Internal Battery Parts: built-in 2pcs 2.6AH 18650 batteries

Note:
- If battery parts are needed, please contact us to cover the cost.
