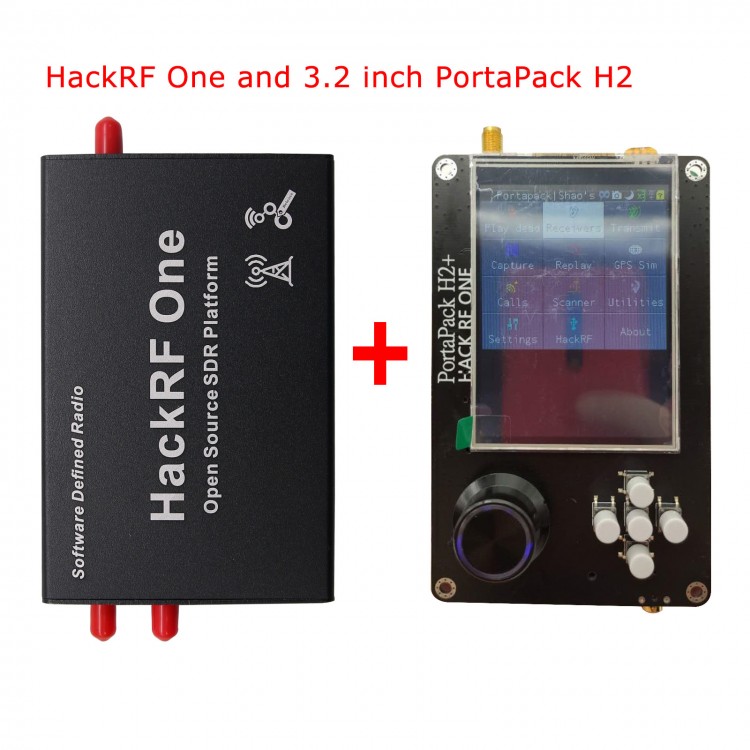

1MHz-6GHz HackRF One SDR Platform w/ Shell + PortaPack H2 3.2" Touch Screen 0.5PPM TCXO Clock

1MHz-6GHz HackRF One SDR Platform w/ Shell + PortaPack H2 3.2" Touch Screen 0.5PPM TCXO Clock

HackRF One:


Taking the receiving process as an example, the flow after the signal enters from the antenna is as follows:
· The RF switch determines whether to amplify via a 14dB amplifier
· High-pass or low-pass filtering of the signal through the image suppression filter
· The signal is mixed with RFFC5072 chip to 2.6GHz fixed intermediate frequency
· The latest firmware supports the option of variable IF
· Intermediate frequency range 2.150GHz-2.750GHz
· The signal is fed into the MAX2837 chip and mixed to the baseband to output a differential IQ signal
· The MAX2837 chip can limit the bandwidth of the signal
· MAX5864 chip digitizes the baseband signal and sends it to CPLD and single chip TODO FIXME
· CPLD
· The LPC4320/4330 processor sends the sampled data to the computer via USB
· Put RFFC5072 and MAX2837 into the shield to protect them, prevent the interference of the outside world and other chips on the board, and try to prevent static electricity from puncturing some chips.

Technical Parameters/Main Hardware:
Basic Parameters:
- Design frequency: 1MHz-6000MHz
- Data bandwidth: 20MHz
- Sampling accuracy ADC/DAC: 8bit
- Sampling rate ADC/DAC: 20Mbps
- Data/power supply interface: USB 2.0
- Open source level: all open source (software, hardware)

RF Index:
- Maximum transmit power: 10dBm (less than the minimum spurious transmit power of radio regulations)
- Maximum received power: -5dBm (note: exceeding this value will burn the board)
- 64QAM launch EVM: 1.5%
- Complex sampling bandwidth: 20MHz

Main Hardware:
- RFFC5072: mixer provides 80MHz to 4200MHz local oscillator signal
- MAX2837: 2.3GHz to 2.7GHz wireless broadband RF transceiver
- MAX5864: ADC/DAC, 22MHz sampling accuracy 8bit
- LPC4320/4330: For ARM Cortex M4 processor, main frequency 204MHz
- Si5351B: I2C programmable arbitrary clock generator for CMOS, provides 40MHz and sampling clock by 800MHz frequency division
- MGA-81563: 0.1-6GHz 3v 14dBm amplifier
- SKY13317: 20MHz-6.0GHz RF single-pole three-throw (SP3T) switch
- SKY13350: 0.01-6.0GHz RF single pole double-throw (SPDT) switch

Portapack H2:
Features:
- With sound input and output function (ADC, DAC)
- With TF card slot (storage data, playback data, frequency management)
- Comes with TCXO high-precision clock (0.5ppm), the frequency is as accurate as the radio
- New firmware automatically switches the external TCXO (you can see the clock source is external in the menu)
- Support offline GPS simulation
- Optional acrylic black case
- Support for Apple or Android headset's MIC to send voice and headset to listen to sound

Supported App/Mode Specifications:
Receivers:
- For ADS-B receiver
- For ACARS receiver
- For AIS
- For AFSK
- For Analog audio receiver
- For POCSAG receiver
- For Radiosonde receiver
- For TPMS
- For APRS
- For DMR framing
- For SIGFOX
- For LoRa
- For SSTV
- For TETRA framing

Transmitters:
- For ADS-B transmitter
- For APRS
- For Xy/Ep transmitter
- For Jammer
- For Key fob
- For LGE tool
- For Microphone transmitter
- For Morse transmitter
- For Burger pagers
- For LCR transmitter
- For Close Call
- For Signal generator
- For Frequency manager
- For OOK encoders
- For POCSAG transmitter
- For RDS transmitter
- For Soundboard
- For SSTV
- For TEDI/LCR AFSK
- For TouchTunes remote
- For Custom remote

Others:
- Play Dead mode
- Pitch RSSI output
- Stealth mode
- Unistroke text entry

Package Included:
- 1 x Set of HackRF One with Portapack H2

Note: Antenna is not included in the package.
