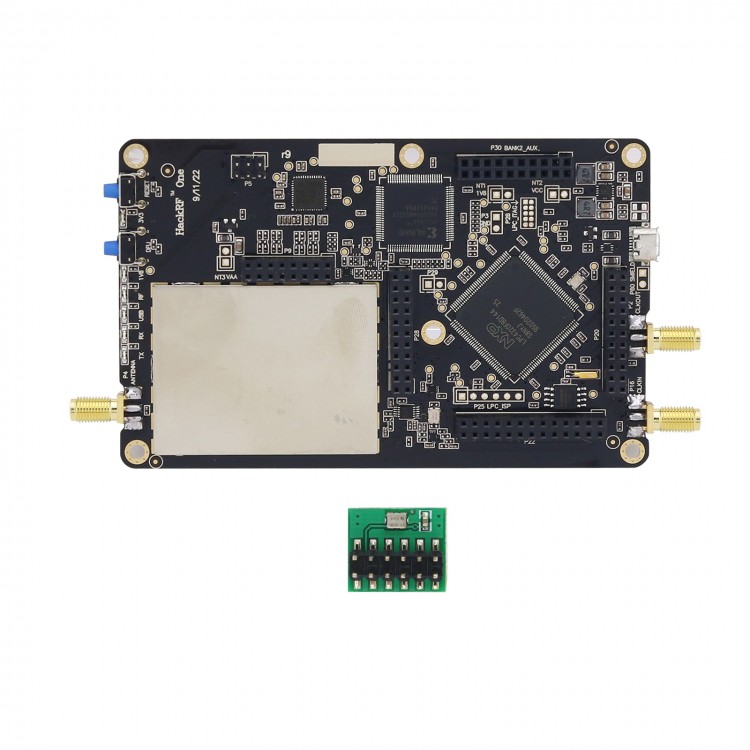

1MHz to 6GHz HackRF One R9 V2.0.0 Starter SDR Board with Shielding Cover + TCXO GPS Simulator
Upgrades of HackRF One R9:
MAX2837 is replaced by MAX2839. Si5351C is replaced by Si5351A with additional clock distribution. A series diode is added to the antenna port power supply.
Attention:
1. The latest firmware is supported, and the current firmware is Mayhem firmware V2.0.0 by default.
2. For certain functionality, like the world map, GPS simulator, and others, you need to prepare a PortaPack H2 and a FAT32 formatted MicroSD card over 1G.
HackRF One Description:
- HackRF One is a Software Defined Radio peripheral capable of transmission or reception of radio signals from 1 MHz to 6 GHz.
- Designed to enable test and development of modern and next generation radio technologies, HackRF One is an open source hardware platform that can be used as a USB peripheral or programmed for stand-alone operation.
HackRF One Specifications:
- 1 MHz to 6 GHz operating frequency
- Half-duplex transceiver
- Up to 20 million samples per second
- 8-bit quadrature samples (8-bit I and 8-bit Q)
- For GNU Radio, SDR#, and the like
- Software-configurable RX and TX gain and baseband filter
- Software-controlled antenna port power (50 mA at 3.3 V)
- SMA female antenna connector
- SMA female clock input and output for synchronization
- Convenient buttons for programming
- Internal pin headers for expansion
- Hi-Speed USB 2.0
- USB-powered
- Open source hardware
- HackRF One 1 MHz to 6 GHz SDR platform software defined radio development board
Using HackRF One's Buttons:
The RESET button resets the microcontroller. This is a reboot that should result in a USB re-enumeration.
The DFU button invokes a USB DFU bootloader located in the microcontroller's ROM. This bootloader makes it possible to unbrick a HackRF One with damaged firmware because the ROM cannot be overwritten.
To invoke DFU mode: Press and hold the DFU button. While holding the DFU button, reset the HackRF One either by pressing and releasing the RESET button or by powering on the HackRF One. Release the DFU button.
The DFU button only invokes the bootloader during reset. This means that it can be used for other functions by custom firmware.
Package Included:
- 1 x Set of HackRF One SDR
