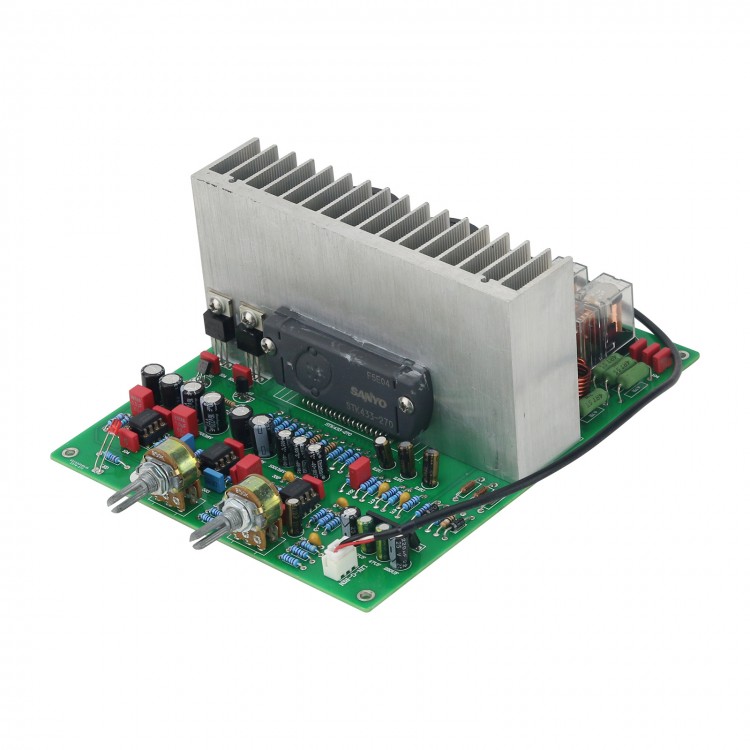

2.1 New STK433-270 3x60W HiFi Power Amplifier Board Power Amp Board Assembled With Heat Sink
Description:
Its actual power is 3x60W at 6Ω, working voltage is recommended to be ±46V, and the maximum working voltage should not exceed ±50V.
The board is assembled and has passed strict tests before delivery. The finished board is equipped with heat sink. It may not enough for medium and high power in actual uses. You can install a heat sink according to your actual use.
There are bass knob and volume knob for adjustment.
Specifications:
- Power Supply Voltage: AC dual 28-35V
- Output Power: 3x60W at 6Ω
- Product Dimensions: 120 x 65 x 140 mm (WxHxD)
Package Included:
- 1 x Power Amp Board
Note:
- It is assembled and ready for use.
- The main filter capacitors are Japanese second-hand. Please make sure that you don't mind before purchasing.
- There is no kit provided for this board. Thank you for you understanding!
