2.4G Remote Control Signal Booster Radio Signal Amplifier Booster For 2.4G Remote Control Transmitter
Description:
This product is designed for 2.4GHz band development, in line with IEEE 802.11b / g / n standard bi-directional power amplifier. The product is compatible with direct sequence (DSSS), orthogonal frequency division multiplexing (OFDM) and other frequency extension techniques. With Time Division Duplex (TDD) fast microwave detection technology and line g power amplifier technology, in the guarantee 802.11b / g / n wireless device transmission rate unchanged, greatly expand the radio frequency communication distance.
Specifications:
- Brand Name: Turbowing
- Item Name: Radio Signal Amplifier Booster
- Working Band: 2.4 - 2.5GHz
- Working Voltage: 6 - 16V
- Receive Gain: 10dB±1
- Transmit Gain: 13dB±1
- Input Power: 3dBm (Min.), 20dBm (Max.)
- Max. Output Power (P1dB): 36dBm (4W)
- EVM: 3%@28dBm 802.11g 54Mbps OFDM 64QAM BW 20MHz
- DC Power Consumption: 435mA@Pout 28dBm 9V
- Noise figure: <2.5dB
- TX / RX Switch Delay: <1us
- LED Status: Green (TX); Red (RX)
- Operating Temperature: -40 ℃ to 70 ℃
- Operating Humidity: <95% RH
- N.W.: 0.058kg
Features:
- 13dB transmit gain, can increase the transmit power 20 times, greatly expand the launch distance.
- 2.5dB noise figure, can improve the product receiving sensitivity, greatly expand the receiving distance.
- 4000mW transmit power, can greatly improve the product coverage area.
- Ultra wide power supply voltage input range of 6-16V, great convenience engineering network.
- Can expand any 2.4G band, suitable for the TDD work mode product.
- Plug and play, no software settings needed.
- All metal shell, greatly improve the heat dissipation performance.
Installation Manual, Click Here: http://img.banggood.com/file/products/20170922033843Turbowing%20RY-2.4%20Manual.pdf

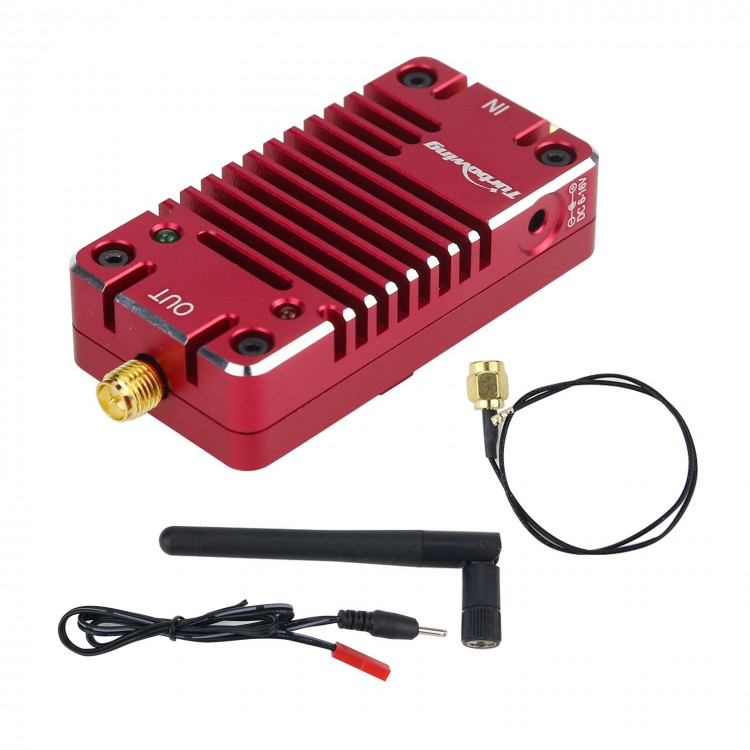

Package Included:
- 1 x 2.4G Radio Signal Amplifier Booster
- 1 x Signal Cable
- 1 x Power Cord
- 1 x 2.4 Rubber Antenna
