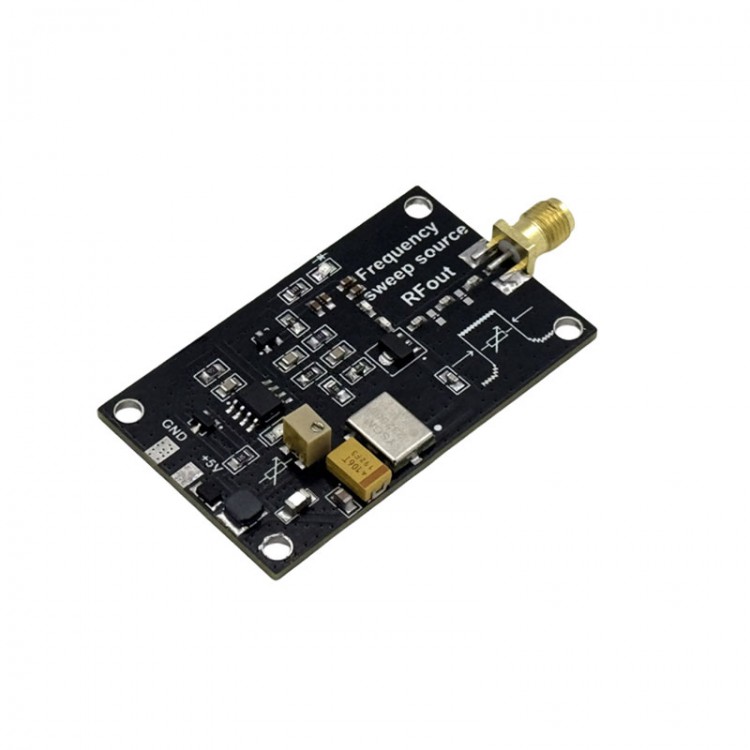

2.4GHz RF Sweep Signal Generator Module Frequency Sweep Source with 2400MHz–2483MHz Sweep Bandwidth
Description:
The 2450MHz (2400MHz–2483MHz) sweep signal generator is used for signal shielding in video transmission, data transmission, drones, remote control, LTE, and more.
Features of 2.4GHz Signal Source:
* Sweep Bandwidth: 2400MHz–2483MHz
* Output Power: 17dBm
* Output Impedance: 50Ω
* Power Supply: 5V
Specifications:
* Output Impedance: 50Ω
* Output Power: 17dBm
* Frequency Range Adjustment: Tunable via potentiometer
* Operating Voltage: 5V
* Operating Current: 56mA
* Module Dimensions: 55mm × 33mm (excluding connector)
* Connector Type: SMA Female
* Ground (GND): Connect to DC 0V (negative terminal)
* +5V: Connect to DC power supply positive terminal
* Weight: 9.4g
* Typical Use: Signal isolation for remote control and data transmission
Packing List:
* 1 x Signal Source
Packaging Details:
* G.W.: 0.22kg
