2 In 1 Multimeter Oscilloscope 25MHz Digital Handheld Scopemeter Voltmeter Capacitance EM125

2 In 1 Multimeter Oscilloscope 25MHz Digital Handheld Scopemeter Voltmeter Capacitance EM125

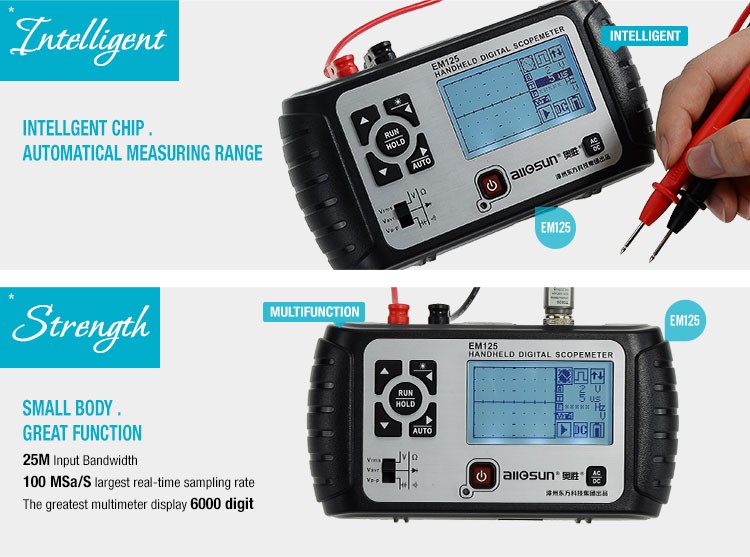

Description:
This handheld oscilloscope is a portable waveform measurement tool and fulfills basic electronic engineering requirements. It is one of best 2 in 1 test tools in outdoor testing or teaching.

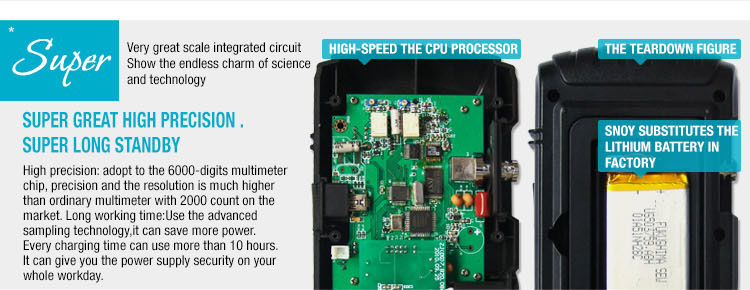

1. The high speed AD sampler and CPU can convert the analog signal into digital signal and show on the 128X64 LCD backlight display.
2. The high speed comparator can get good edge trigger to present steadily.
3. Its multi-meter part uses a dedicated chip (6000-count), which can provide a higher precision.
4. Can ensure 10 hours working after fully charged.

Technical Data:
Basic Performance:

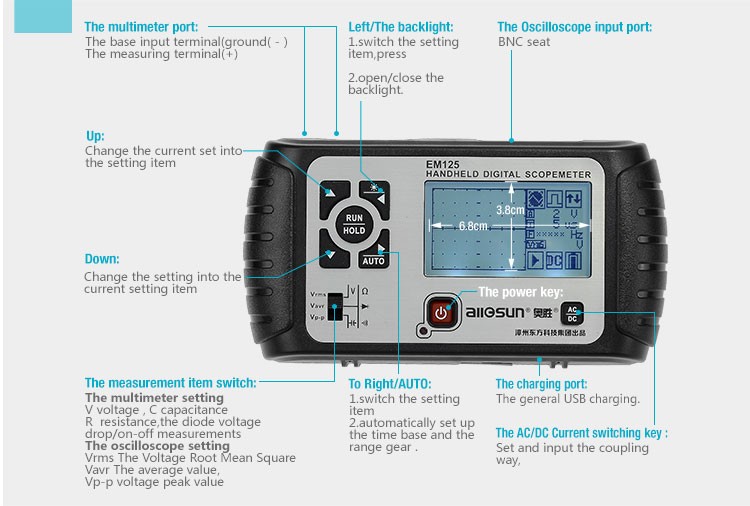

- Screen: 128*64, with LED backlight
- Charger: Input: Voltage 100-240V AC
- Output: DC5V ± 10%, 1000mA
- Size: 174*92*40mm
- Weight: about 330g

Performance of Oscilloscope:
- Bandwidth (-3dB): 25MHz
- Sampling Rate: Max 100MSa/s
- Channel: 1
- Coupling: AC, DC
- Rise Time: <17.5ns
- Input Impendence: 1MΩ, ≤20pF
- Max Input Voltage: 1x CAT III 300VAC 10x, 100x Cat III 600VAC
- Vertical Resolution: 8 bit
- Vertical Sensitivity: 50mV/div - 20V/div
- Horizontal Resolution: 10nS/div
- Horizontal Sensitivity: 10nS/div -5S/div
- Record Length: 0.1K/Channel
- Trigger Mode: Auto, Rising edge, Falling edge

Performance of Multi-meter:
- Display: 6000 counts

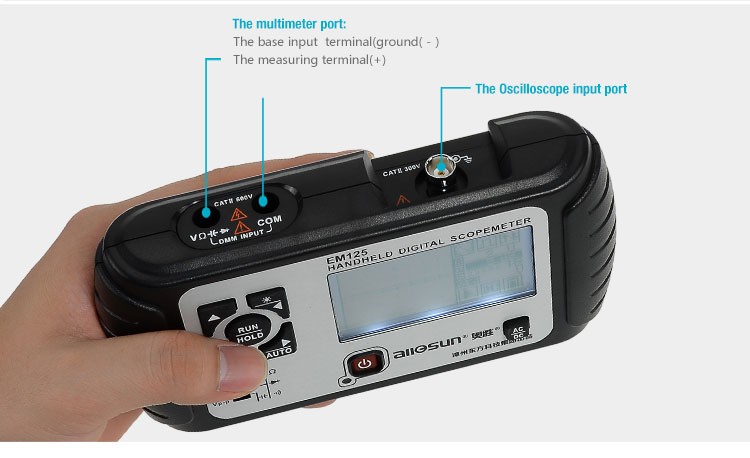

- Input: Max. Input Voltage: 600Vrms CAT II, 300Vrms CAT III
- Continuity Test: In 600Ω range, beeps at <25Ω
- Diode Test: If voltage drop of the diode under test is more than 2V or if input terminals are open, the display will show "OL'. If voltage drop is less than 0.25V, the built-in buzzer will sounds
- Capacitance Measurement: 6.000nF - 6mF, 7 ranges
- Resistance Measurement: 600.0Ω - 60.00MΩ, 6 ranges
- Voltage Measurement: 6V - 600V, 3 ranges

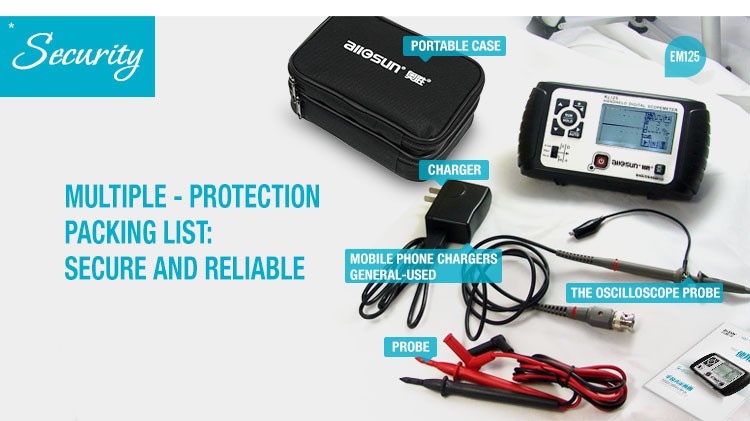

Package Included:
- 1 x Scopemeter
- 1 x 20M (10:1) Probe
- 1 x Pair of Test Pens
- 1 x Charger
- 1 x Warranty Card
- 1 x User Manual
- 1 x Carrying Bag
