| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $16.18 | $15.85 | $15.35 | $14.69 | Contact US |

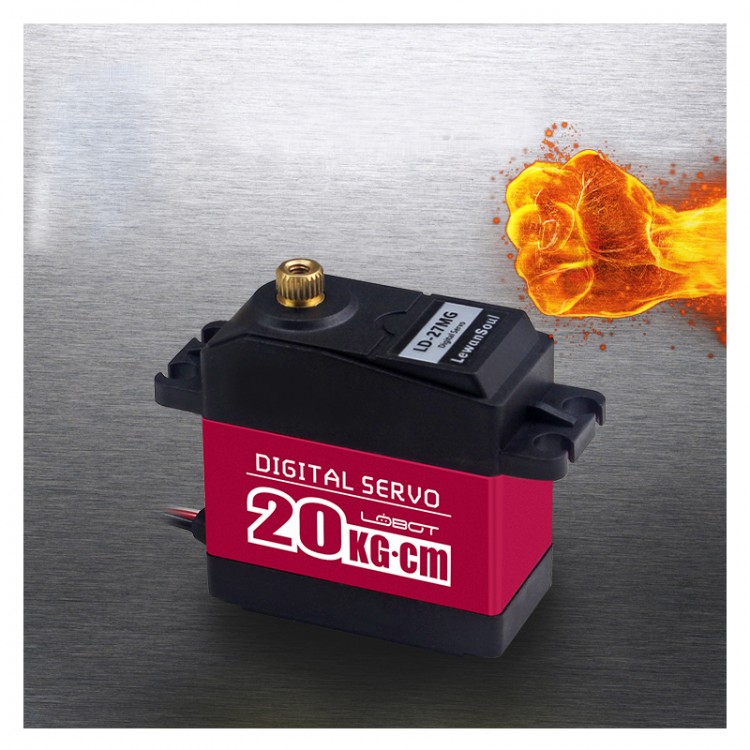

20 kg.cm High Torque Digital Servo Metal Gear 270° Robot Arm Servo for RC Robot Toys LD-27MG
Specifications:
- Weight: 65g (2.32OZ)
- Dimension: 40*20*40.5mm (1.57*0.78*1.59inch)
- Speed: 0.16sec/60° (7.4V)
- Torque: 20 kg.cm (277.6 oz•in) 6.6V
- Working Voltage: 6-7.4V
- Min Working Current: 1A
- No-Load Current: 100mA
- # Spline: 25T (6mm in diameter)
- The servo wire: 30cm (11.8inch) in length
Note:
- Please make sure that the duty cycle of the controller you are using conform to our specifications, otherwise the servo can't turn up to claimed degree.
- Please be sure to avoid locked-rotor when using servo, locked-rotor means that artificially or machine obstructs the servo to rotate normally, the locked-rotor will lead to internal current increased to more than 7 times and the temperature increases, servo will burn out.
Attention:
1. It's recommended that use lithium polymer battery with high rate discharge (min 5C), please don't use dry battery.
2. Please use a short and thick power cord, don't use Dupont cord.
