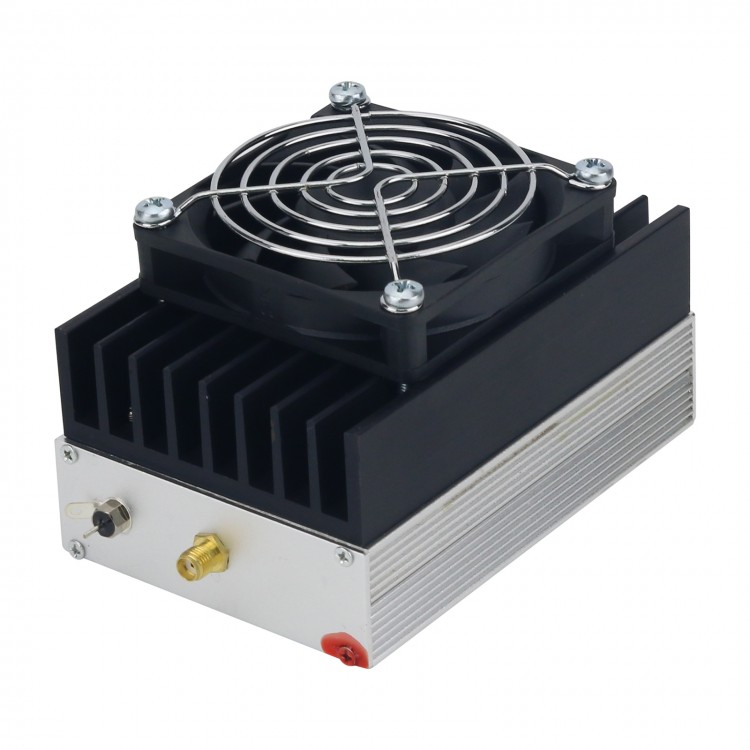

200KHz-10MHz 30W Broadband RF Power Amplifier Long Wave Medium Wave Shortwave Amp Input 15dBm 28V
Description:
This radio frequency amplifier is a linear power amplifier. It features low distortion and wide frequency range. It can be applied to various forms of signal amplification, such as tpms transmission, wireless charging and other communications or remote control, etc., act as the final power amplifier to enhance transmission power and increase transmission distance.
This long-wave, medium-wave, and high-frequency amplifier can be used in universities, scientific research institutes and for radio enthusiasts.
Main Parameters:
- Amplifier frequency: 200KHz-10MHz
- Single power supply: voltage 28V, static 0.5A, working current less than 2A
- Amplifier gain: about 30dB. That is, input about 15dBm (32mW) and output 30W
- Typical output signal harmonics: -13 to 14dB
- Input and output impedance: 50 ohms
- Input and output connectors: SMA (female)
- Overall dimensions: 110×75×50mm (excluding the sizes of input and output SMA connectors and power supply connectors)
- Output Power at Different Frequencies is as follows:
Frequency & Output Power:
* 0.2MHZ, 25W
* 0.3MHZ, 30W
* 0.4MHZ, 30 W
* 0.5MHZ, 29.5W
* 0.6MHZ, 29W
* 0.7MHZ, 29W
* 0.8MHZ, 28.8W
* 0.9MHZ, 28.5W
* 1MHZ, 28.3W
* 2MHZ, 26W
* 3MHZ, 23.5W
* 4MHZ, 21W
* 5MHZ, 19W
* 6MHZ, 17W
* 7MHZ, 15W
* 8MHZ, 13.5W
* 9MHZ, 12W
* 10MHZ, 11W
Package Included:
- 1 x Linear Power Amplifier
