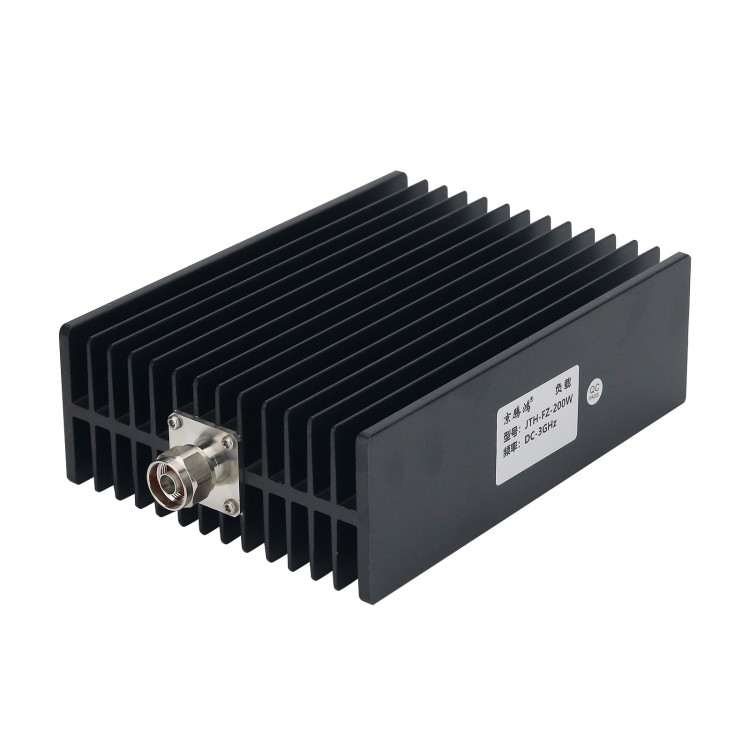

200W DC-3G 50 Ohm Coaxial Dummy Load with N Type Male Connector for Walkie Talkie Mobile Radio
Description:
The coaxial fixed load is mainly used to absorb the power of a radio frequency or microwave system, and can be used as the dummy load of the antenna and the transmitter terminal. It can also be used as a matching port for multi-port microwave devices such as circulators and directional couplers to ensure that the characteristic impedance is matched for accurate measurement. The average power of PREFIX = OTF series coaxial fixed load is 2W-300W and the frequency range is DC-3GHz. It is with wide operating frequency, low standing wave coefficient, good anti-pulse and anti-burnout performance.
Indicator Parameters:
- Item name: 200W/N-J load
- Frequency range: 0-3000MHz
- VSWR: ≤1.2
- Characteristic impedance: 50Ω
- Power capacity: 200W
- Connector: N-J
- Dimensions: 195 x 135 x 60mm/7.7 x 5.3 x 2.4"
- Product weight: 1500g/3.3lb
- Operating temperature: -30 to 65°C
Package Included:
- 1 x Dummy Load
Note:
- Due to different brands and production batches, the goods may vary slightly in appearance but with the same effect. And items are delivered at random. Please make sure that you don't mind before purchasing. If you have special requirements, please contact customer service in advance. Thank you!
