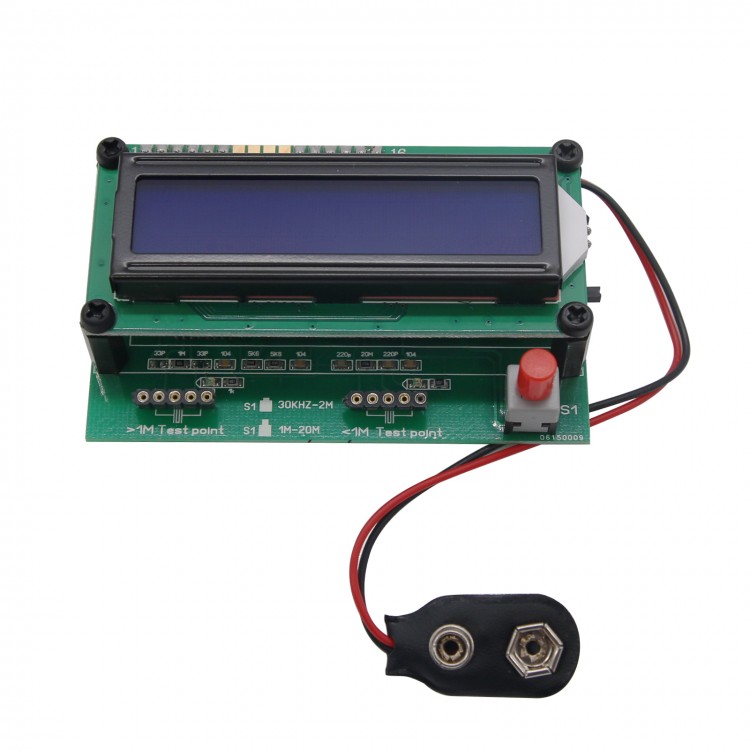

2018 20M Crystal Oscillator Tester Meter Low/High Frequency 3M-20M 30KHZ-2M ADC 49S

Availability: In stock, usually dispatched in 1 business day

  • Price:$25.75
  • Price in reward points: 258 Reward Points: 3
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $25.24 $24.72 $23.95 $22.92 Contact US
Quantity:

2018 20M Crystal Oscillator Tester Meter Low/High Frequency 3M-20M 30KHZ-2M ADC 49S

Specifications:
-Technical data:
- power supply: 9V batteries (must be owned by customers)
- Measurement of crystal type: 49S cylindrical
- low frequency crystal oscillator test range: 30KHZ - 2M (red switch press)
- high frequency crystal test range: 3M - 20M (red switch release) (PCB board, silk screen as 1-30M,    please follow this instruction!)
- General ADC measurement range.
- Accuracy: 30KHZ-2M (10KHZ error + 0.005KHZ)
                   3M - 20M (1MHZ error + 0.010MHZ)
- Dimension: 81*49*22 (MM)


 Intimate hint: if 49S crystal can not be measured normally, please change the quality is slightly better!
Or cut the two pin a little shorter
Instructions:
1: customers use their own 9V battery connection, open the right side of the switch, boot display.
2:S1 press down to measure the low frequency crystal, while the low frequency measure LED indicator light (right).
3:S1 press the jump to measure the high frequency crystal, while the high frequency measurement LED indicator light (left).
