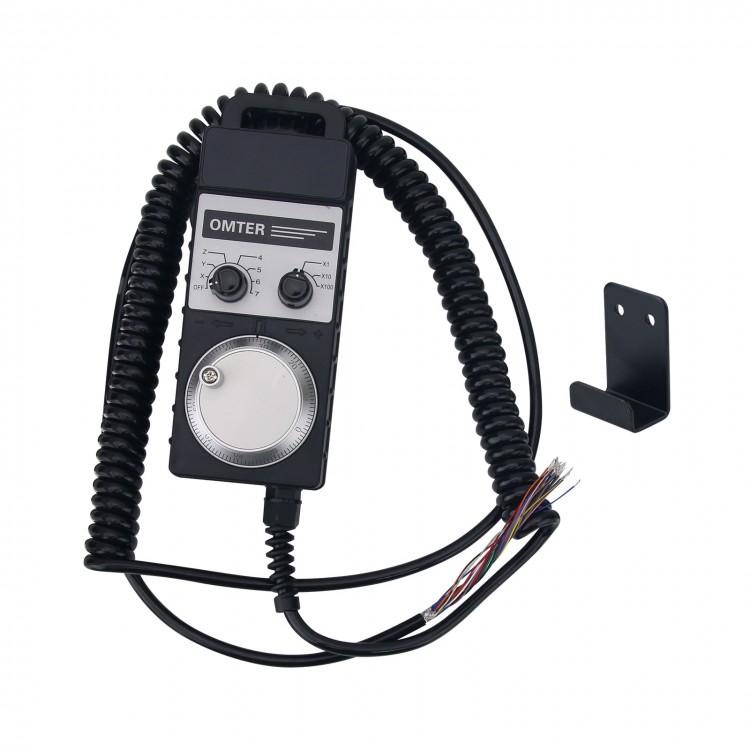

24E 7Axis MPG Universal Manual Pulse Generator CNC Handwheel 100PPR 24V without Emergency Stop Button for PLC

Differences:

5L Handwheel:
- Voltage: 5V
- Pulse: 100PPR
- Output phase: A, B, A-, B-
- Compatibility: It fits for 98% of Chinese systems
5-12E Handwheel:
- Voltage: 12V
- Pulse: 25PPR
- Output phase: A, B
- Compatibility: for Mitsubishi systems
24E Handwheel:
- Voltage: 24V
- Pulse: 100PPR
- Output phase: A, B
- Compatibility: for PLC systems

Features:
- 7-Axis MPG manual pulse generator
- Its switch is provided by well-known producer
- Light weight and metal panel
- Perfect for manual pulse input such as NC line board, CNC machines, zero correction and division of printing machinery
- Elegant appearance and fine workmanship

Electrical Parameters:
- Output Waveform: Square Wave
- Output Phase: AB Phases
- Current Consumption: ≤100mA
- Response Frequency: 0 to 20KHz
- Duty Ratio: 0.5T±0.1T
- Phase Difference: 90°±45°
- Output Voltage: High Level ≥ 85%Vcc, Low Level ≤ 0.3V
- Number of Pulses: 100 PPR

Mechanical Specifications:
- Position Signal: 2 Kinds
- Max. Speed: 500rpm
- Starting Torque: 2 x 10 -2 to 6 x 10-2 Nm (+25℃)
- Shock Resistance: 980m/s2, 6ms, twice in X Y Z directions
- Anti-Vibration: 50m/s2, 10 to 200Hz, 2h for X Y Z directions separately
- Life Span: MTBF ≥ 10000hg (+25℃, 2000rpm)
- Weight: approx. 640g

Environmental Specifications:
- Operating Humidity: 30% to 85% (Without condensation)
- Storage Temperature: -30℃ to 85℃
- Operating Temperature: -10℃ to 70℃
- Protection: Waterproof, Oil-proof, Dust-proof IP54

Package Included:
- 1 x Manual Pulse Generator
