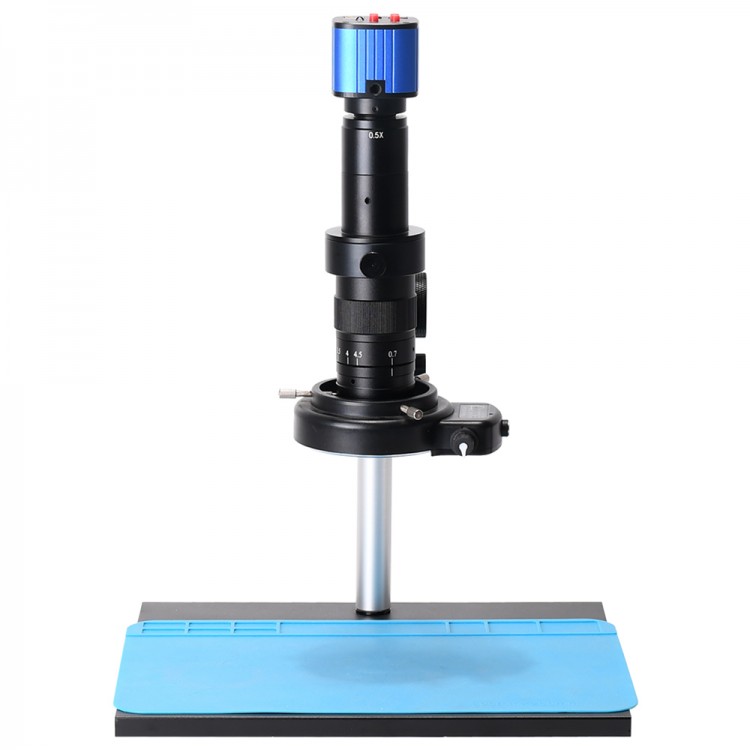

24MP 2K 1080P 60FPS Digital Microscope w/ HDMI USB Microscope Camera LED Light 180X Lens for Repair

24MP 2K 1080P 60FPS Digital Microscope w/ HDMI USB Microscope Camera LED Light 180X Lens for Repair

Camera Specifications:
- Item Type: Microscope Camera
- Module: HY-5200
- Sensor: 24MP for CMOS
- Optical Format: 1/2.3inch
- Pixel Size: 1.33μmx1.33μm
- Interface: HDMI (Type A); USB (Type B). Small memory card
- HDMI Image Resolution: 24MP
- Video Resolution: 2K at 30FPS; 1080p at 60FPS
- HDMI Resolution: 1920 x 1080p 60FPS
- HDMI Scale: Support 4:3 and 16:9 screens
- USB2.0 (Drive Free): 1920 x 1080 at 30FPS; 1280 x 720 at 30FPS; and 640 x 510 at 30FPS
- Small Memory Card: Up to 128GB (not included)
- AWB: AWB color correction/automatic/manual
- R.G.B value setting independent
- Exposure: Automatic/manual. AE value can be set
- Cross Line: 8 lines, color, width, position can be set
- Scale Line: 2 lines.
- Dotted Line: 2 lines, color, width, position can be set
- Sharpness Contrast Color Gain: Support
- Mono Negative Film: Support
- Mirror: Horizontal and vertical mirror
- Language: English/Simplified Chinese/French/Spanish/Japanese/German and other languages
- Digital Zoom: Support
- Infrared Remote Control: Support
- Camera Voltage Input: DC 12V
- Microscope Ring Light Voltage Input: DC 12V
- Power Supply Voltage: Input: AC100-240V
- Power Consumption: Maximum 0.15W 12V, 0.12A
- Lens Interface: C/CS port

180X C-Mount Lens:
- Working distance: 100mm/3.9"
- Zoom c-mount Lens
- 0.5X C-mount adapter
- Zoom ratios: 6.5:1
- Objective Magnification Power by 0.7-4.5X (about 10-180X on the display)
- Size: 180 x 50mm/7.1 x 2" (LxDia.) (180X maximum working distance 11.5cm/4.5")

56 LED Adjustable Compact Microscope Ring Light:
- Provides intense and focused shadow-free illumination
- 56 bright LED
- Lighting direction changeable
- Variable intensity control
- Intense and focused shadow-free illumination
- 100,000 hours of life
- Power input: 100-240V, 50-60HZ, automatic switching
- Inside diameter of the ring light: 27mm/1.1"
- Overall outside diameter: 45mm/1.8"
- Working Distance: 27mm-120mm/1.1-4.7"

Microscope Bracket:
- Ring Diameter: 50mm/2" (diameter)
- Material: Aluminum alloy of high quality (easy to carry)
- Color: black
- Max Diameter of Microscope's Lens Tube: 50mm/2"
- Support Height: 310mm/12.2"
- Use: Biology research electronic component precision parts jewelry identification and identification circuit board

Problem and Solution:
LCD no video or flickering
1. Check the power supply. Check if the red LED lights up. Press Power Key to move it up
2. Check the lens cover. Increase lighting

LCD has black bars and image distortion
1. Change the resolution of LCD
2. Change the camera resolution

Dirty spots
1. Check the camera and lens, find the dust, and then clean it with absolute ethanol or detergent

Package Included:
- 1 x Microscope Camera
- 1 x 180X Lens
- 1 x Power Supply
- 1 x USB Cable
- 1 x HDMI Cable
- 1 x Remote Control
- 1 x Microscope Table Stand
- 1 x 56 Adjustable LED Ring Light

Note:
- Battery is not included. A 2302 button battery is recommended for the remote control.
