| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $54.60 | $53.48 | $51.81 | $49.58 | Contact US |
HC115-5L High Quality Electronic MPG Handwheel 5V 12-Core MPG for Brother Drilling Rig Handle
$80.89
High Performance NVMPG CNC Handwheel 6-Axis MPG Manual Pulse Generator with Digital Display Screen
$91.01
CNC 4-Axis 1 & 100 Pulse MPG CNC Handwheel with Emergency Stop and Self-Reset (Plug for DDCS V3.1)
$51.82

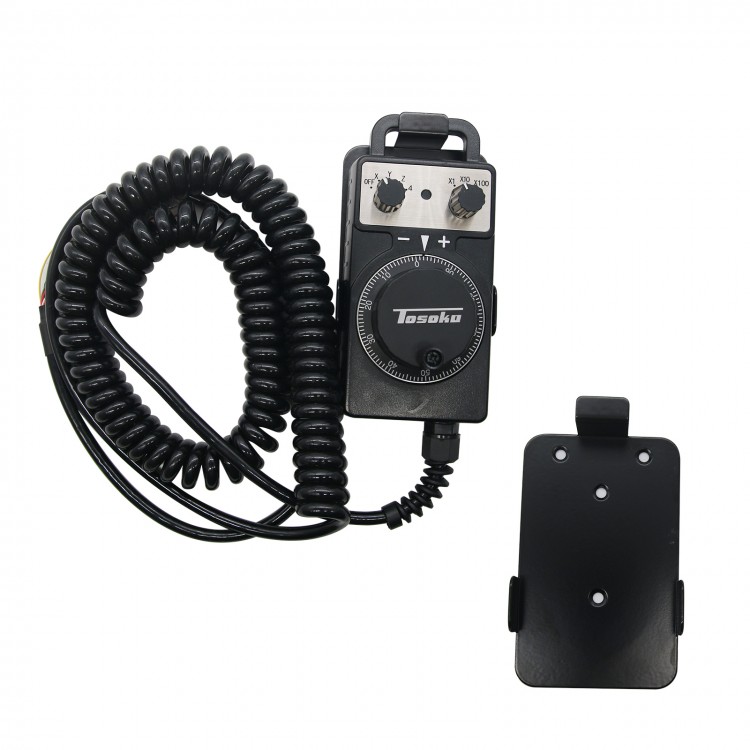

24V 100PPR CNC Manual Pulse Generator MPG CNC Handwheel Pendant Handheld Controller for PLC
Description:

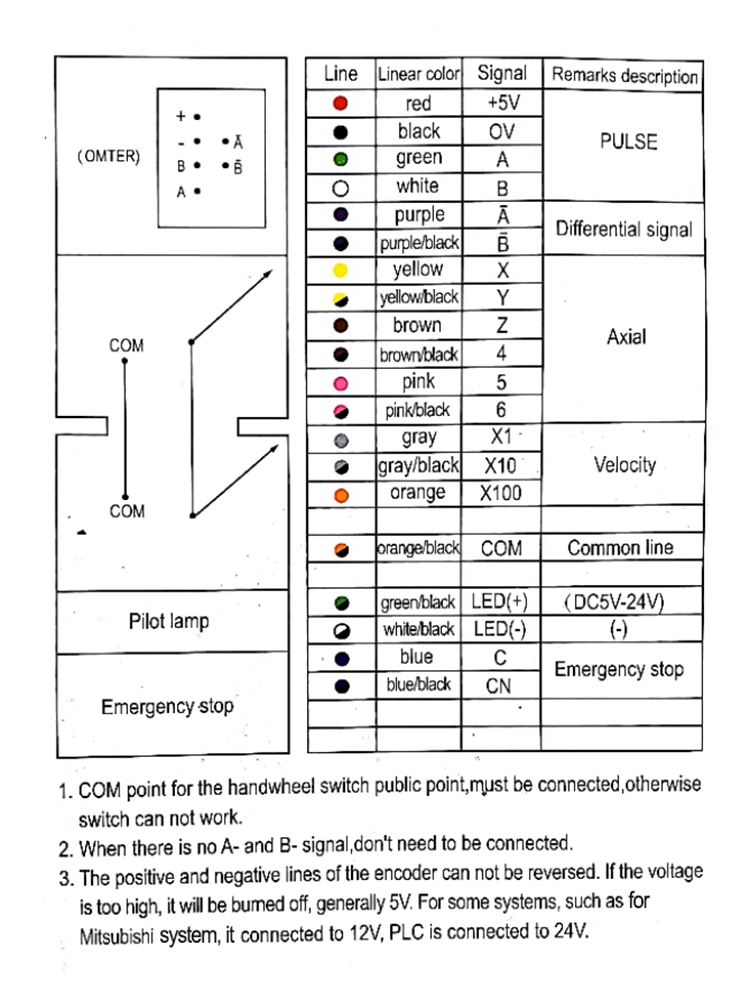

- Unconnected wires must be cut to bare copper, then one after another parcel, do not touch anything else lines, components, and housing to avoid causing a short circuit.
- Please read the manual carefully before wiring, so as not to affect the handwheel operation.
- The COM point is the handwheel switch public point, must be connected, otherwise the switch will not work properly.
- The handwheel is light to handle, the collision is easy to be damaged, the rotating code disk and the switch cannot be too hard, so as not to affect the service life.
- If you don't have A -, B - signal, you don't have to connect.
- For PLC does not have A -, B - signal, these signals are not connected.
Package Included:
- 1 x Manual Pulse Generator
