25MHz-3GHz Portable RF Signal Generator Handheld Precision Signal Generator SG3000

Availability: Out Of Stock

  • Price:$222.76
  • Price in reward points: 2228 Reward Points: 22
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $218.30 $213.85 $207.17 $198.26 Contact US
Quantity:

25MHz-3GHz Portable RF Signal Generator Handheld Precision Signal Generator SG3000

Features:

- Portable RF signal generator with a signal frequency range of 25MHz to 3GHz and a power dynamic range of -51.5dBm to 10dBm.
- Adjustable in frequency and power. It can be used for testing RF amplifiers, switches, filters, interference, etc. It can also be used for wireless communications and RF circuit research and development.
- Main Functions: CW-9KHz to 3GHz, -51.5dBm to 10dBm; frequency scanning.
- Recommended application: It can be used in the research and development of RF circuits such as RF amplifier test, RF transceiver test, and filter test, which can effectively improve operating efficiency, reduce the burden of carrying, and improve the quality of works.

Technical Parameters:
- Frequency range: 25MHz to 3GHz
- Frequency resolution: ≥ 1Hz

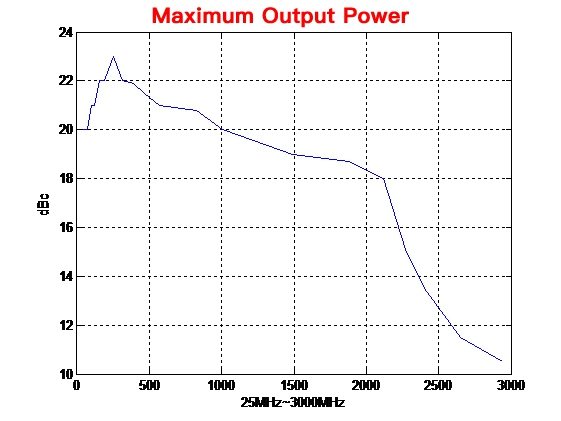

- Power range: -51.5dBm to 10dBm
- Power resolution: ≥ 1dBm
- Frequency Band 1: f ≤ 23.4375MHz
- Frequency Band 2: 23.4375MHz < f ≤ 46.875MHz
- Frequency Band 3: 46.875MHz < f ≤ 93.75MHz
- Frequency Band 4: 93.75MHz < f ≤ 187.5MHz
- Frequency Band 5: 187.5MHz < f ≤ 375MHz
- Frequency Band 6: 375MHz < f ≤ 750MHz
- Frequency Band 7: 750MHz < f ≤ 1500MHz
- Frequency Band 8: 1500MHz < f ≤ 3000MHz
- Frequency Band 9: 3000MHz < f ≤ 6000MHz
- Frequency Band 10: 6000MHz < f ≤ 12000MHz

Frequency Scanning:
- Scanning method: Step sweep (equal interval frequency step)
- Scan mode: continuous
- Scanning range: within the frequency range of the instrument
- Step change: linear
- Existence time: 20ms to 100s

Spectral Purity:

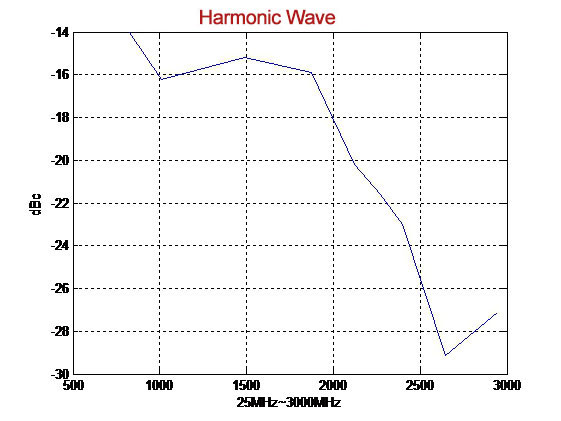

Harmonic Wave:
- 25MHz ≤ f ≤ 500MHz, output level ≤ + 0dBm
- 500MHz ≤ f ≤ 1000MHz, output level ≤ + 0dBm
- 1000MHz ≤ f ≤ 2000MHz, output level ≤ + 0dBm
- 2000MHz ≤ f ≤ 3000MHz, output level ≤ + 0dBm
Subharmonic Wave:
- 25MHz ≤ f ≤ 500MHz
- 500MHz ≤ f ≤ 1000MHz
- 1000MHz ≤ f ≤ 2000MHz
- 2000MHz ≤ f ≤ 3000MHz
Non-harmonic Wave:
- 25MHz ≤ f ≤ 500MHz
- 500MHz ≤ f ≤ 1000MHz
- 1000MHz ≤ f ≤ 2000MHz
- 2000MHz ≤ f ≤ 3000MHz
SSB Phase Noise:
- f = 100MHz
- f = 1GHz
- f = 3GHz
- f = 6GHz

General Technical Parameters:
- Display Type: TFT LCD
- Display Resolution: 800x480
- Display Size: 5-inch
- Charging Time: 2-3 hours
- Operating Temperature: -20 to 45℃
- Storage Temperature: - 20 to 70℃
- RF Connector: SMA-K
- Built-in RTC Clock: Support
- RF Connector: SMA-K
- Charging Port: Micro USB

2.4G Omnidirectional Antenna:
- Frequency Range: 2.4 to 2.5 GHz
- SWR: <= 1.5
- Gain: 6 dBi
- Characteristic Impedance: 50 ohm
- Interface: SMA-J

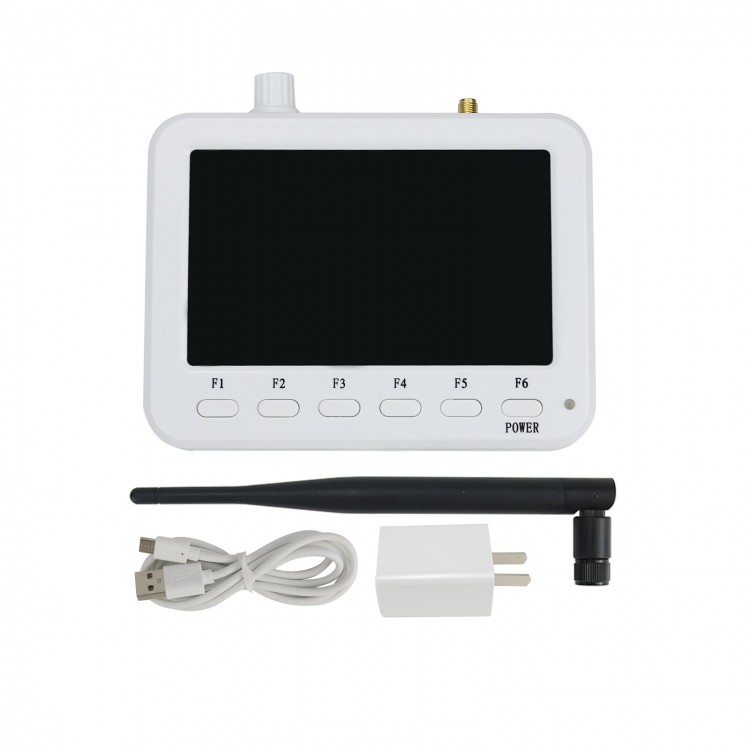

Package Included:
- 1 x Signal Generator
- 1 x Charger with Charging Cable
- 1 x 2.4G Antenna
- 1 x User Manual

Note: Professional knowledge is highly recommended.
