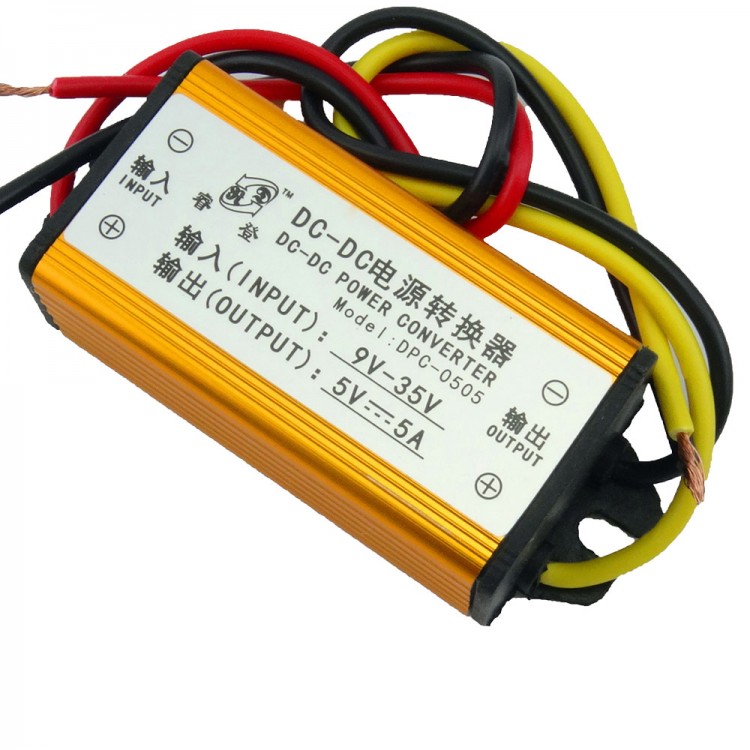

25W 9V-35V 12V 24V to 5V 5A Buck Power Converter DC Power Supply Module LED for Car
Specification:
- Input voltage: 9V-35V
- Output voltage: 5V
- Output Current: 5A (continuous operation) above the maximum instantaneous 7A
- Product Weight: about 53 grams (including packaging about 60 grams)
- Product Dimensions: 59.3mmX30.5mmX21.5mm (excluding fixed ears)
- Module Properties: non-isolated buck module (BUCK)
- Rectifier mode: synchronous rectifier
- Low pressure: 4V
- Conversion efficiency: up to 95%
- Output ripple: 50mV (MAX)
- Operating temperature: Industrial grade (-20 to + 85 ) (ambient temperature exceeds 40 degrees, lower power use, or to enhance heat dissipation)
- Load regulation: ± 1%
- Voltage regulation: ± 2%
- Short circuit protection: sustainable, self-recovery.
- Input reverse polarity protection: Yes, MOS anti-reverse circuit
- Casting process, aluminum alloy shell, waterproof, dustproof, shockproof
Package List:
- 1 x Power Supply Module
