276MHz - 10GHz UWB Ultra Wide Band Antenna Equiangular Spiral Antenna with SMA Female Connector
Description:
- This antenna is an ultra wideband equiangular spiral circularly polarized antenna, divided into left-handed circularly polarized and right-handed circularly polarized antennas.
- It can be used for direction finding, spectrum analysis, signal analysis, navigation positioning, broadband measurement, direction finding, etc., providing 3 - 6dBi circularly polarized directional gain in the frequency range of 267MHz - 10GHz.
- It is used for typical operating frequencies of 915MHz, 1090MHz ADS-B, 1268MHz-1610MHz GPS, 1420MHz, 2.4GHz, 5.8GHz VTX with low standing wave, high gain, and significant performance.
Specification:
- Working bandwidth: 276MHz - 10GHz
- Polarization method: circular polarized dextrorotatory/levorotation
- Gain: 3dBi - 6dBi
- Impedance: 50ohm
- SWR: <2.2

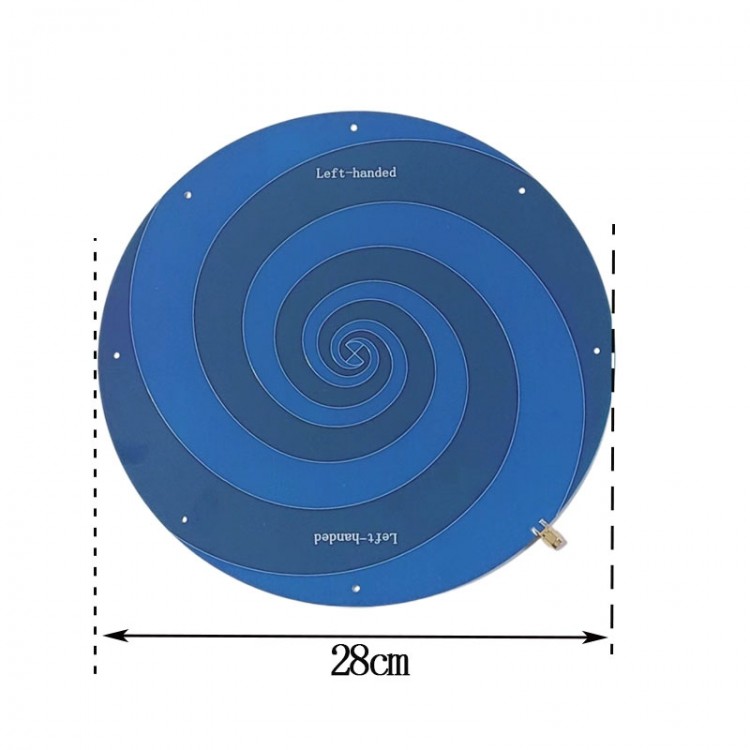

- Diameter: 28cm
Package Included:
- 1 x UWB Antenna
