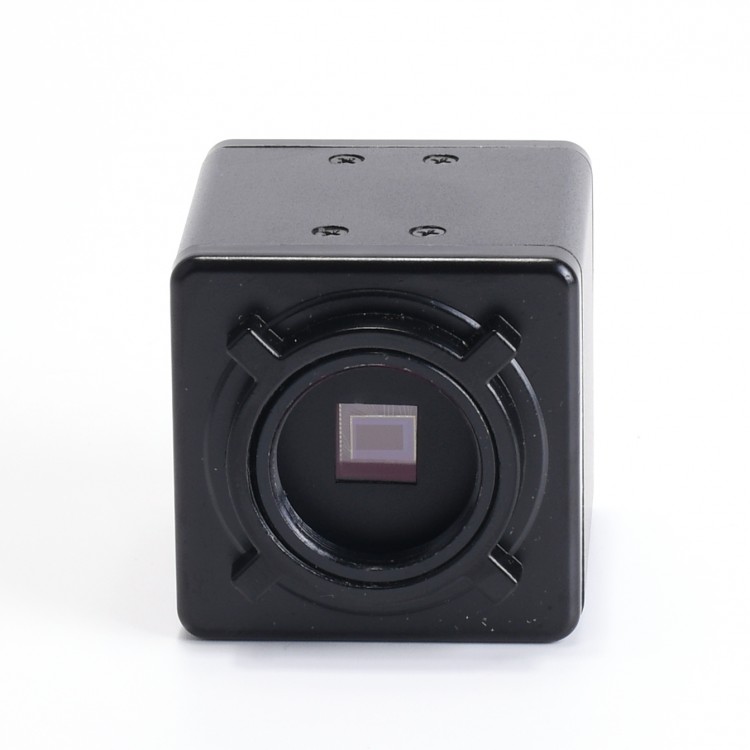

2MP Industrial Camera 1080P VGA Output Electronic Camera Magnifier PCB Inspection Repairing

Availability: In stock, usually dispatched in 1 business day

  • Price:$35.90
  • Price in reward points: 359 Reward Points: 4
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $35.18 $34.46 $33.39 $31.95 Contact US
Quantity:
2MP Industrial Camera 1080P VGA Output Electronic Camera Magnifier PCB Inspection Repairing

Features:

- VGA output mode: 1024X768 60Hz, 1280X1024 60Hz, 1600X1200 60Hz, 1920X1080 60Hz
- With CS lens mount, you can choose any CS interface shots.
- Power input: +5V DC permissible deviations 10%, the maximum operating current of 900mA, standby current of 100mA.
- 4 Cross, optional cross number, color, line width, full screen display, you can move to any location, you can hide all cross.
- Menu in English, concise, and easy to operate.
- Directly connected to the computer monitor, watch real-time video images, image clarity, stability, no Flash, close eye fatigue in watching for a long time.

Image Adjusting:
- More bright brightness of the light source, press the POWER key, on the upper left corner of the screen will display "manual exposure", "manual exposure" disappears on the screen, and then to adjust the brightness of the light, until you think is good.

Application:
- Wide range of applications in the field of electronics and precision machinery to enlarge image; Micro IC electronic components and Assembly quality testing; PCB and SMT plants production testing;
- Hospitals, schools, and scientific research departments for research, experiments, tests and analyses; production, jewelry identification, and other fields.

Camera Parameters:
- Product number: 200VGA
- Sensor type: For 1/3-inch 2 million pixel CMOS color
- Effective pixels: 1600H*1200V
- Number of data bits: 8bit
- Pixel dimensions: 2.8μm * 2.8μm
- Frame rate: 15 fps @1600X1200, 30 frames per second @1024X768
- Definition: 1024X768 60Hz resolution 600TV lines above; in 1600X1200 60Hz resolution 800TV lines
- Scanning mode: line-by-line
- Type of shutter: electronic shutter
- Dynamic range: 71dB
- Signal to noise ratio: 44dB
- Sensitivity: 1.0 V/lux-sec (550nm)
- Exposure time: 10μs-60ms, automatic exposure
- White balance: automatic
- Lens mount: C/CS
- Video interface: standard VGA interface
- VGA output resolution: 1024X768 60Hz (the default), 1280X1024 60Hz, 1366X768 60Hz; 1440X900 60Hz, 1600X1200 60Hz, 1680X1050 60Hz, 1920X1080 60Hz
- Menu functions: brightness, contrast, color saturation, brightness exposure, in English, automatic exposure, manual exposure, vertical, horizontal mirror, negative, cross number, cross colors, cross the line width
- Operating temperature: 0-60℃
- Power supply: external 5V DC allows 10% deviation
- Working current: 600mA
- Power: 3W
- Size: 50*50*60 (mm)

Package Included:
- 1 x Set of Industrial Camera
