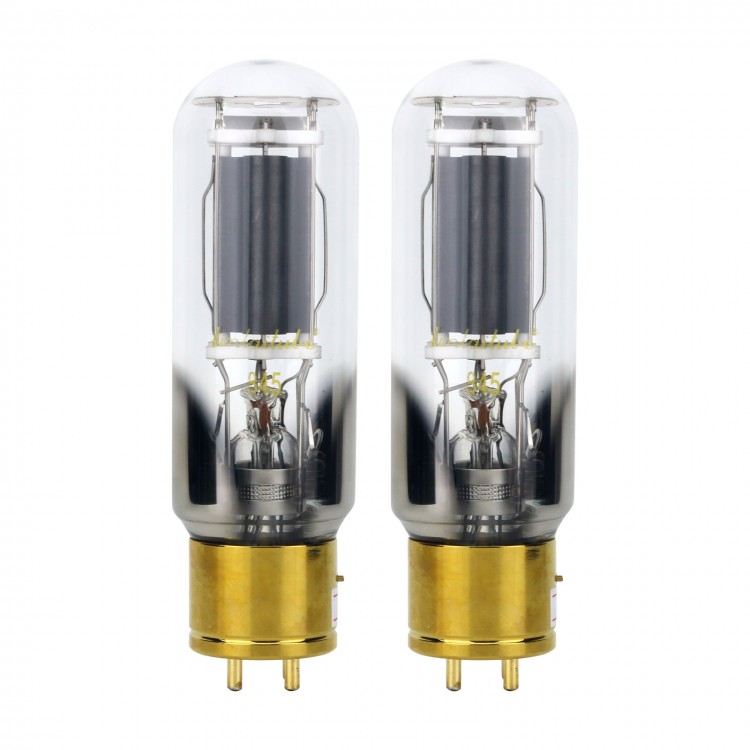

2PCS LINLAITUBE 845 Vacuum Tubes Replace Shuguang 845 Matching 115W Push-pull Class AB1 Amplifier
845 Product Parameters:
Electric parameter limit value:
- Minimum heating time: 60S
- Maximum filament instantaneous current: 5A
- Limit value of class C telegraph in working condition
- Maximum anode DC voltage: 1250V
- Maximum anode dissipation power: 100W
- Maximum signal input power: 150W
- Maximum anode DC current: 120mA
Typical working status: push-pull class AB1 audio power amplifier
- Filament voltage: 10V
- Anode DC voltage: 1250V
- Grid DC negative beat bias voltage: 225V
- Gate audio peak voltage (gate to gate): 440V
- Anode DC current at zero signal: 40mA
- Anode DC current at maximum signal: 240mA
- Anode AC load resistance (anode to anode): 6600 ohms
- Output power: 115W
Package Included:
- 2 x Vacuum Tubes
