2W 2000mW 5.8G Long Range FPV Transmitter FPV VTX Over 20KM Range for Fixed Wing Airplanes
Version Introduction:
- It has a bigger rubber antenna with a gain of 5db. It is suitable for long range flight.
Upgrades:
1. To improve the defect of SMA that is easy to be broken when there is an air crash. Now directly add a column to fix SMA on the shell.
2. Add a power-on protection circuit to eliminate the phenomenon that it is easy to burn out instantaneously when connected to power.
3. Optimize the situation of power-on interference with peers: the principle is to lock the amplifier instantaneously when connected to power so that the leaked signal is less than 1mw. The controller detects that the phase-locked loop of the RF signal is locked for 1 second and then turns the amplifier back on.
Features:
- With pillars to fasten its SMA interface
- Compact design and light weight. Weighs only 30g/0.07lb. Double-sided heat sink, one of which is equipped with a cooling fan featuring super good heat dissipation performance

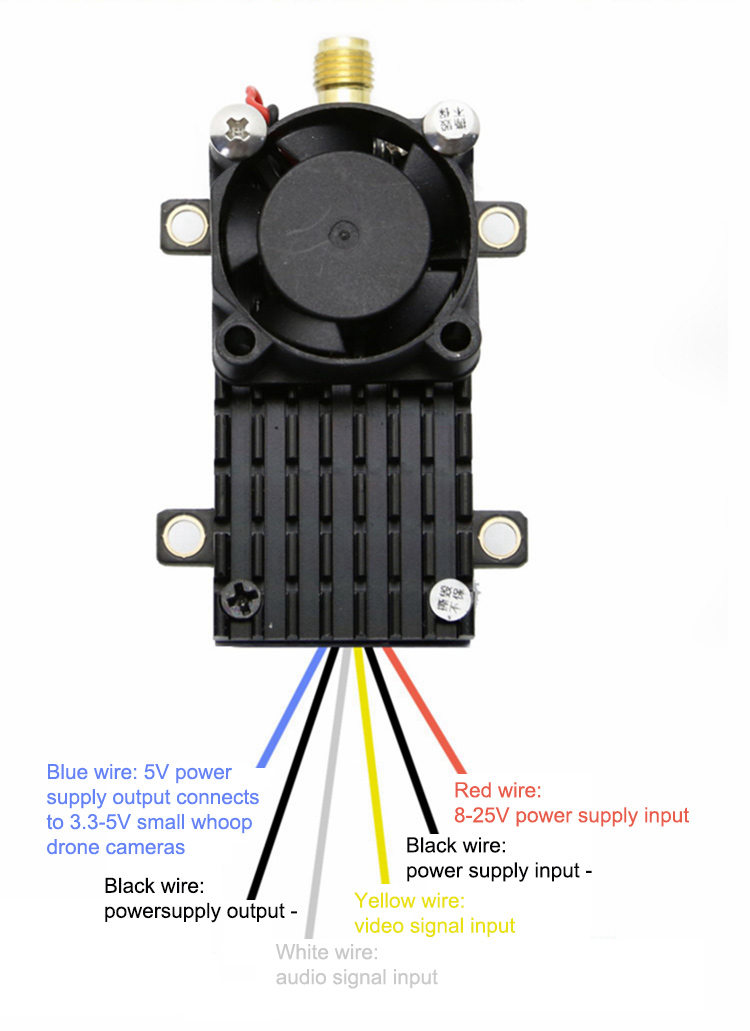

- Silicone wire is soft and not easy to break. High currents can pass through the wire
- Power supply output range of the module is 7-36V
- 5V output can supply power to 3.3-5V small whoop drone cameras. No extra power supply is needed for the camera
Transmitter Parameters:
- Weight: 30g/0.07lb (without antenna)
- Size (LxWxT): 50 x 25 x 15mm/2 x 1 x 0.6" (without the size of fan); 50 x 25 x 26.5mm/2 x 1 x 1" (with fan thickness)
- 5.8GHz video/audio synchronous transmitter (PAL and NTSC compatible)
- Compact structure, small size and large transmission power
- Using large-scale integrated circuits and premium components, with high reliability
- Working voltage: DC7V-36V (2s-8s)

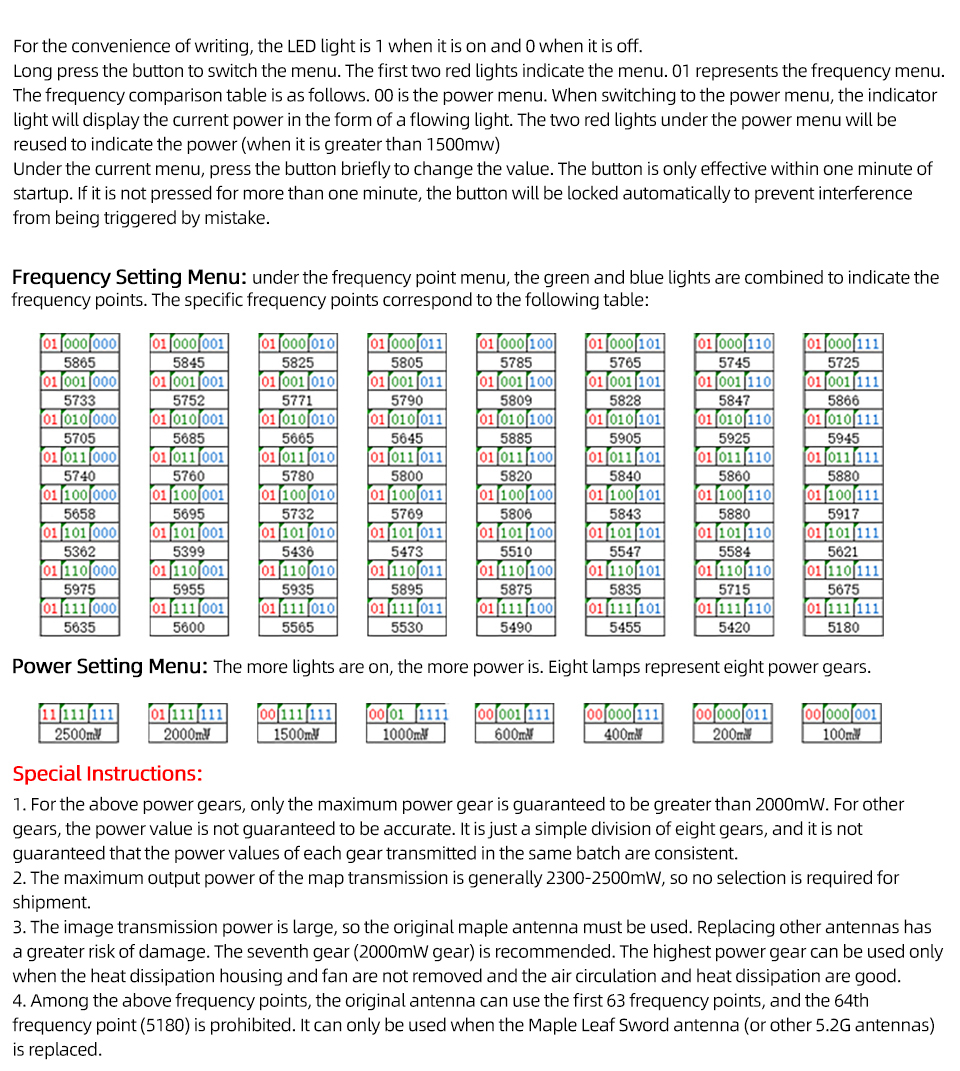

- 64 working channels can be set by button
- Built-in frequency phase-locked loop, low harmonic radiation, high reliability and stability
- Using a digital phase-locked loop circuit, there is no temperature drift

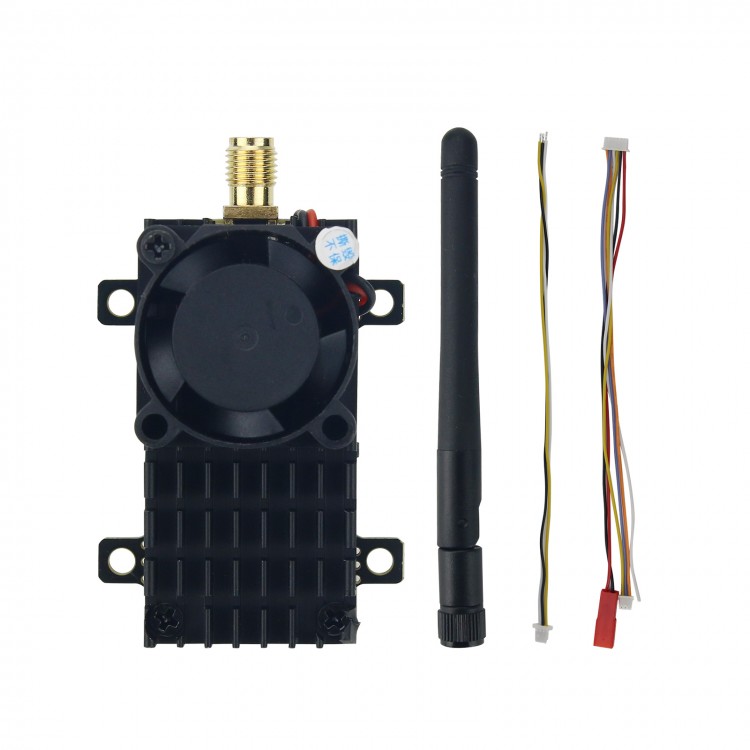

Package Included:
- 1 x FPV Transmitter
- 1 x Antenna
- 2 x Cables
