2x100W Bluetooth Audio Amplifier Class D + Mean Well 36V 160W Power Adapter + IR Remote Control
Features:
- Size: 8.3'' x 4.9'' x 1.9''
- Power supply: DC 12V to 36V
- Over / under voltage turn off
- Over current protection
- Over temperature protection
Applications:
- Desktop amplifier
- Enhanced amplifier for TV or TOPBOX system
- Wireless audio receiver and amplifier
- Great partner for Apple TV or other devices

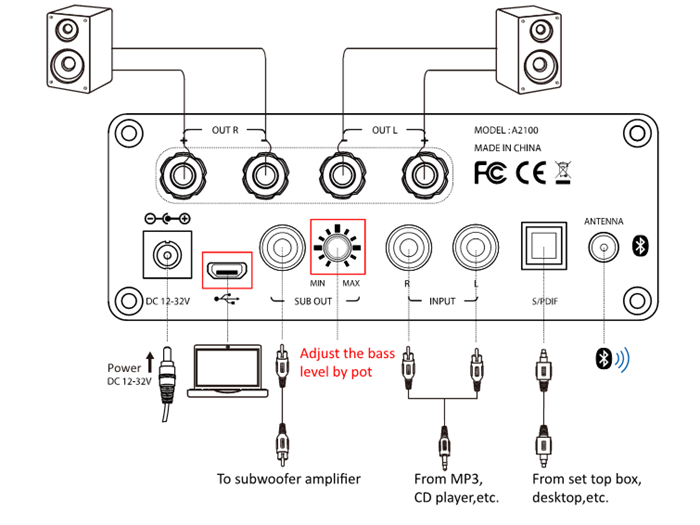

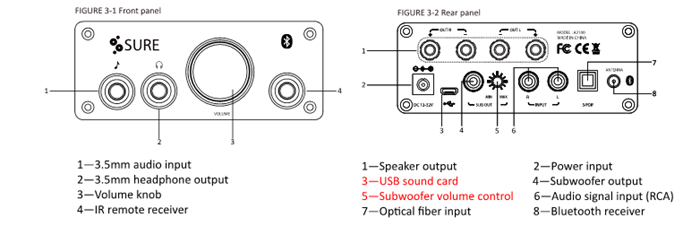

Connections:
Power Connection:
- A voltage-regulated power of high-performance is necessary to provide basic and enough power so that this product could work stably, otherwise any problem caused by poor power is out of the warranty.

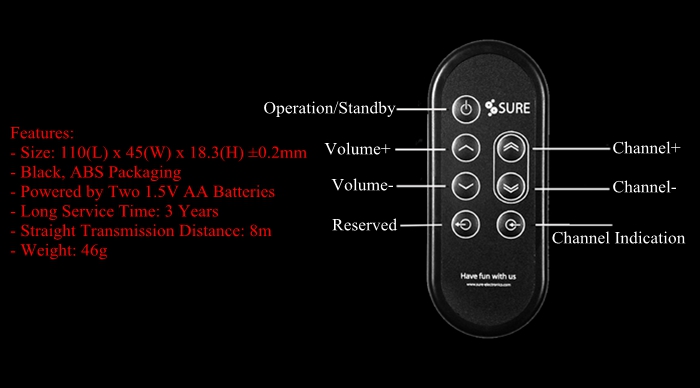

IR Remote Controller:
- With the remote controller, several functions can be realized:
A) Switching audio signal channel.
B) Volume control.
C) Input channel switch

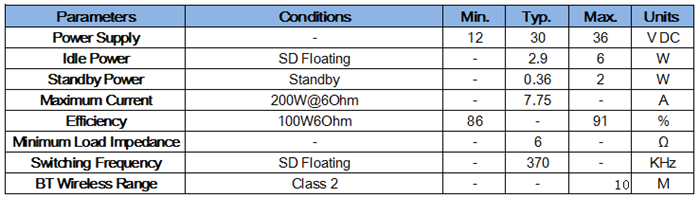

Electrical Parameters:
- Typical parameter values @+25℃, powered by 30V DC. Other conditions will be mentioned. The parameters can be adjusted without a statement.

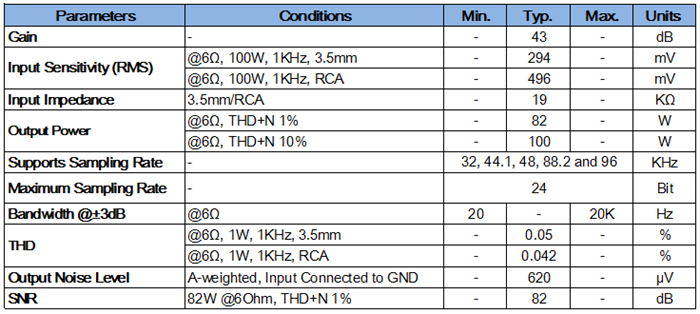

Audio Performance:
- Typical parameter values @+25℃, powered by 30V DC. Other conditions will be mentioned. The parameters can be adjusted without a statement.

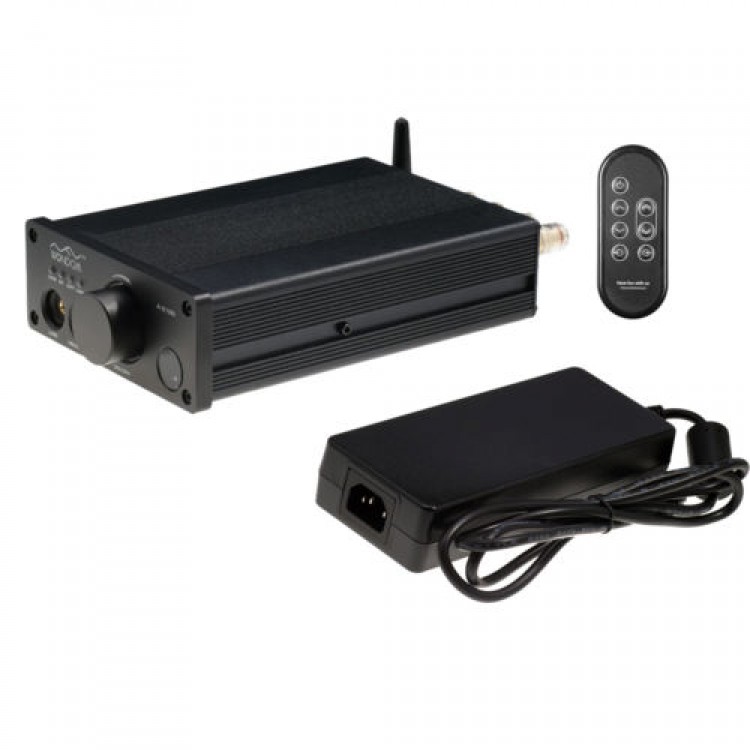

Package Included:
- 1 x Bluetooth Audio Amplifier Class D
- 1 x IR Remote Controller
- 1 x Power Adapter 36V 160W
