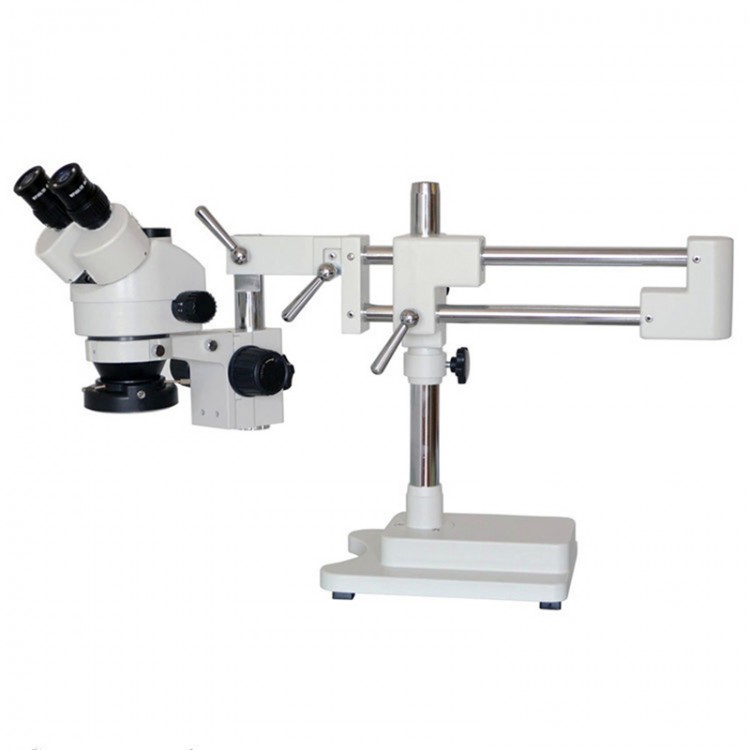

3.5X 7X 45X 90X Double Boom Stand Zoom Simul Focal Trinocular Stereo Microscope+41MP Camera Microscope For Industrial PCB Repair

3.5X 7X 45X 90X Double Boom Stand Zoom Simul Focal Trinocular Stereo Microscope+41MP Camera Microscope For Industrial PCB Repair

Feature:
- An excellent stereo inspection microscope with intensity-adjustable 56-LED ring light
- 7x-45x super wide zoom magnification power
- Bright cool light 56-LED illumination system
- High resolution with great flatness and contrast, giving sharp and clear images
- Binocular head with 45 degree inclined 360 degree swiveling eye tubes
- Sharp stereo erect images with a wide field of view
- Crystal clear original true color microscope images
- Dual eye tubes with adjustable diopters
- Large working distance
- Sturdy all-metal table stand
- Accurate alignment reduces eye strain for longer periods of viewing
- Full optical glass elements
- Precise ground glass lenses
- Full metal chrome-plated mechanical components
- Adjustable interpupillary distance
- Rubber eye-guards included
- Expand the scope of operations,any orientation and angle observed the objectives.
- Vertical Pillar: high 380mm,Diameter 32mm
- Horizontal moving:235mm
- Base size: 210x260x40mm
- Steel Gears on Focusing Holder.
- Standard Size Focusing Holder - Will Fit Scope Heads with Diameter of 76mm
- 56 bright white LED bulbs
- 100,000 hours of life
- Intense and focused shadow-free illumination
- The brightness of 0-100%Adjustable,high brightness
- Variable intensity control
- Power input: 100-240V, 50-60HZ
- Suit for the dia of the lens: 30mm-63mm

Specifications:
- Module:66018
- Sensor :41 MegaPixel, 21 million pixels CMOS
- Optical format:1/2.3 inch
- pixel size:1.335μm x1.335μm
- Interface:HDMI(Type A).USB(Type B).TF Card
- Image resolution:41MegaPixel
- Video resolution: 1080p@60FPS
- HDMI resoltion:1920*1080p 60FPS
- Can output with USB at the same time
- HDMI scale:Support 4:3,16:9,16:10 screen
- USB2.0(Drive free):1920*1080@30FPS 1280*720@30FPS 640*480@30FPS
- Can output with HDMI at the same time
- TF card:MAX 64GB
- AWB:WB color correction/Auto/Manual
- R.G.B value setting independent
- Exposure:Auto/Manual.AE value can set
- Cross lines:8lines.Can set color& width& position
- Scale mark lines:2lines.
- Dotted lines:2lines.Can set color& width& position
- Sharpness Contrast Color gain:Support
- Mono Negative:Support
- Mirror:Horizontal vertical mirror
- Language:English/simplified Chinese
- Digital Zoom:Support
- IR remoter:Support
- Voltage in:DC 12V 55-21mm size
- Power consumption:MAX 0.15W 12V,0.12A
- Lens interface:C/CS口
- Net weight:180g
- Gross weight:400g
- Camera size:74*74*35mm
- Packaging size:160*100*80mm
- Questions Solutions:
- LCD no video or flicker
- 1.Check power supply. Check green LED be onlight. Press PowerKey to Up it.
- 2.Check lens cover. Increase the lighting.
- LCD have black bar Image warp
- 1.change resolution of LCD
- 2.change resolution of camera
- Have dirty spot
- 1.Check camera and lens, find the dust, then clean using absolute ethyl alcohol or cleanser

Package Included:
1 x Trinocular Stereo Zoom Head
1 x Pair of Super Widefield 10X20MM Eyepieces
1 x 56-LED Ring Light
1 x Double Boom Microscope Bracket
1 x Focusing Rack
1 x C-mount Adapter
1 x Pair of Eye-Guards
1 x Dust Cover
1 x Microscope Camera
1 x Power Adapter (US plug+EU adapter)
1 x IR remoter
1 x Usb Lines
1 x HDMI Lines
1 x Paper Manual
1 x 0.5X Microscope Auxiliary Objective Lens(Working Distance 165 mm)
1 x 2.0X Microscope Auxiliary Objective Lens(Working Distance 40 mm)
1 x SZMCTV 1/2 Lens
1 x High Temperature Resistant Working Pad
