3 Axes Metal Robot Arm Robotic Claw Grab Mechanical Manipulator Toys Android Wireless Control

3 Axes Metal Robot Arm Robotic Claw Grab Mechanical Manipulator Toys Android Wireless Control

Product details:

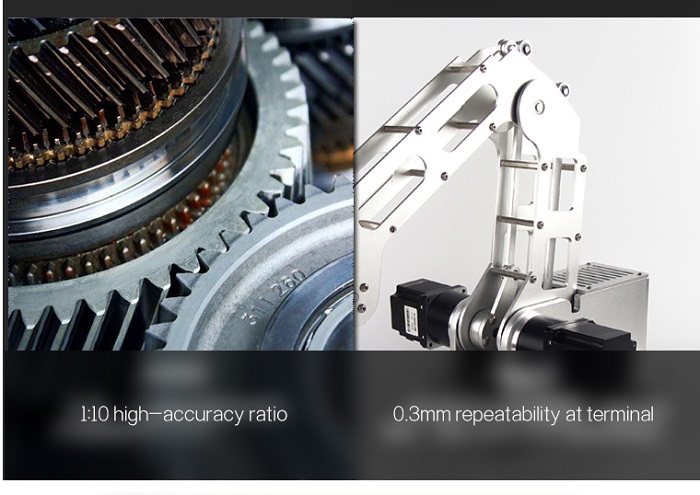

- Equipped with 57 planetary reducer with 1:10 high-accuracy ratio, provides excellent repeatability at terminal with 0.3mm.

- Made of superior 6060 Aluminium alloy with surface anodic oxidation treatment, combined with high quality bearing in all joints, which makes it sturdy and durable.

- Extremely strong load-bearing, which can grab objects weight up to 0.8kg.

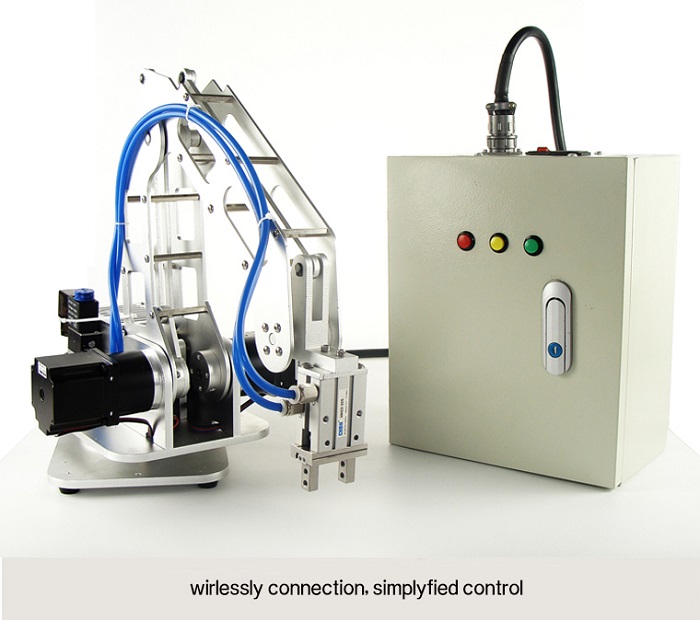

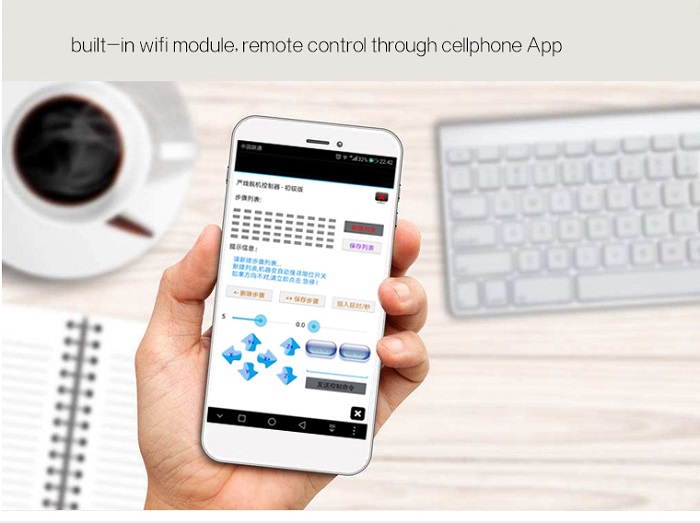

- Built in IR sensor, wirelessly control its movement on your phone App, convenient to grab or drop item.

- 270 degree rotation base with 3 axes arm brings amazing untrammeled and flexible experience.

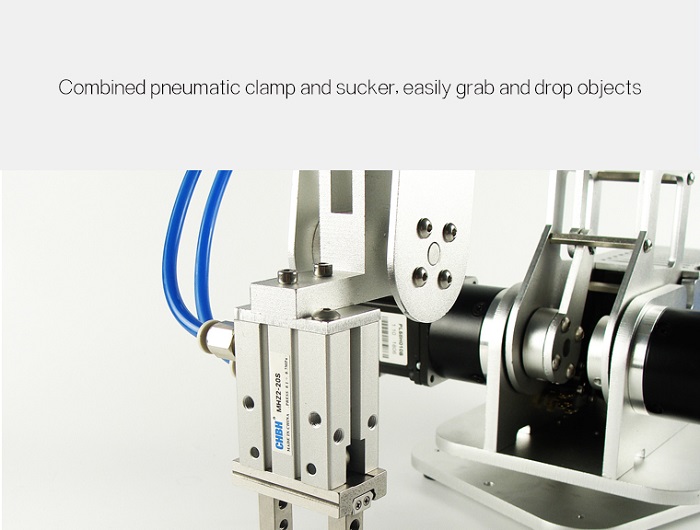

- Combined pneumatic clamp and sucker, easily remove small objects with robot arm, great helper in DIY or robotic smart car racing by custom actions.

Specifications:

- Item Name: Robot Arm

- Material: Aluminium alloy

- Color: As showed

- Net Weight: 9.5kg

- Quantity of Axe: 3

- Load-bearing: 0.8kg

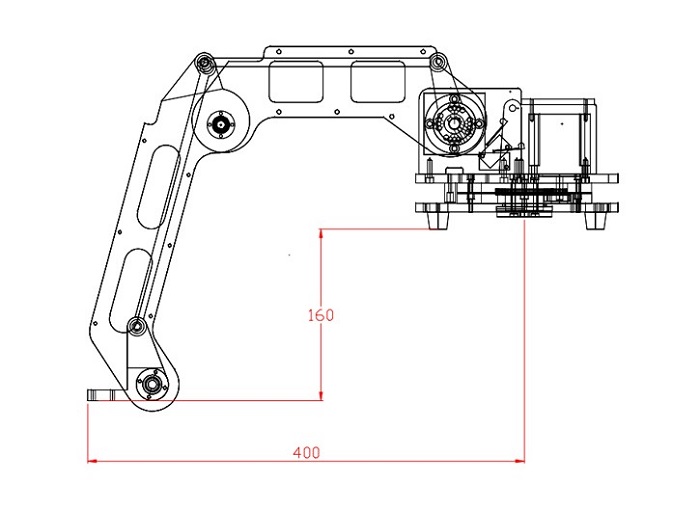

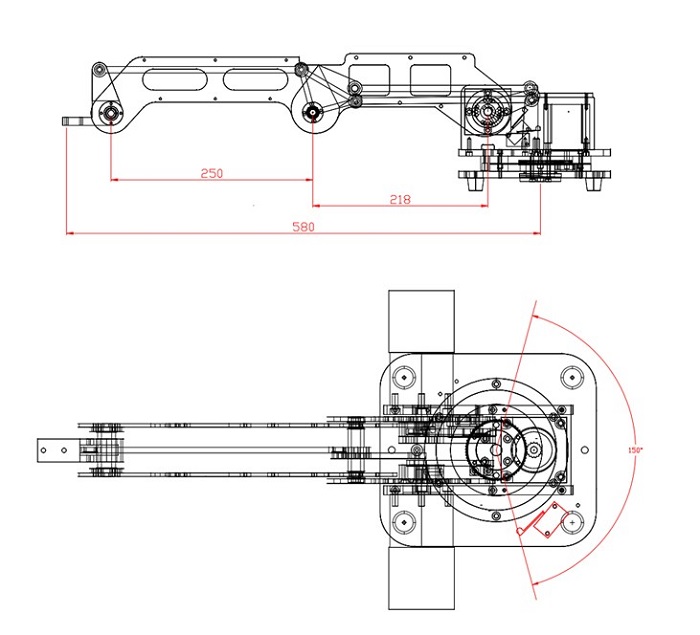

- Maximum Extension Distance: 580mm

- Repeat Positioning Accuracy: 0.3mm

- Communication Interface: Wifi

- Voltage: 100-240V, 50/60HZ

- Input Current: 12V/5A DC

- Power: 60W Max

- Working Temperature: -10℃-60℃

- Axe Motion Parameter: 0°- 85°, 320°/s (Max)

- Base Motion Range: -10° to + 95°, 320°/s (Max)

- Arm Motion Range:  -90° to + 90°, 480°/s (Max)

- Axe Rotation Range: -90° to + 90°, 480°/s (Max)

- Claw Sucker Diameter: 20mm

- Claw Pressure: -35Kpa

- Sucker Mouth Size: 27.5mm

- Drive Mode: Pneumatic

- Force: 8N

Package Included:

- 1 x Robot Arm (With claws and sucker)

Notice:

Wirelessly control function supports Android device with Bluetooth only, such as cellphone, tablet, etc.
