3-Axis Mechanical Arm 3DOF Industrial Arm + Motors for Laser Engraving 3D Print
Description:

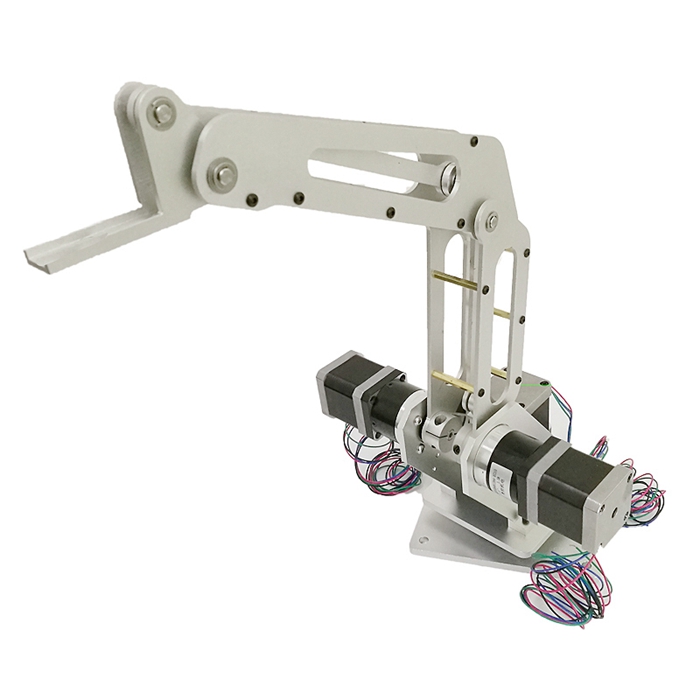

This mechanical arm is made of aluminum alloy CNC, which has high precision, solid and reliable performance. It comes with 3 high precision stepper motors. At present, we have completed cases such as mechanical arm writing, laser engraving, 3D printing, teaching, palletizing and color recognition. It can be used for simple handling of small-scale factories and to replace labor in certain positions.
This item including 3DOF Mechanical Arm + Motors (The arm is already assembled!)
Optional Color: Light Gray, Black
Video: http://v.youku.com/v_show/id_XMzgwMDY2MTA5Mg==.html
Features:
1. The material is aluminum alloy, the surface is blasted by the surface, the appearance is beautiful, the processing precision is high, and all the joints are designed with miniature bearings;

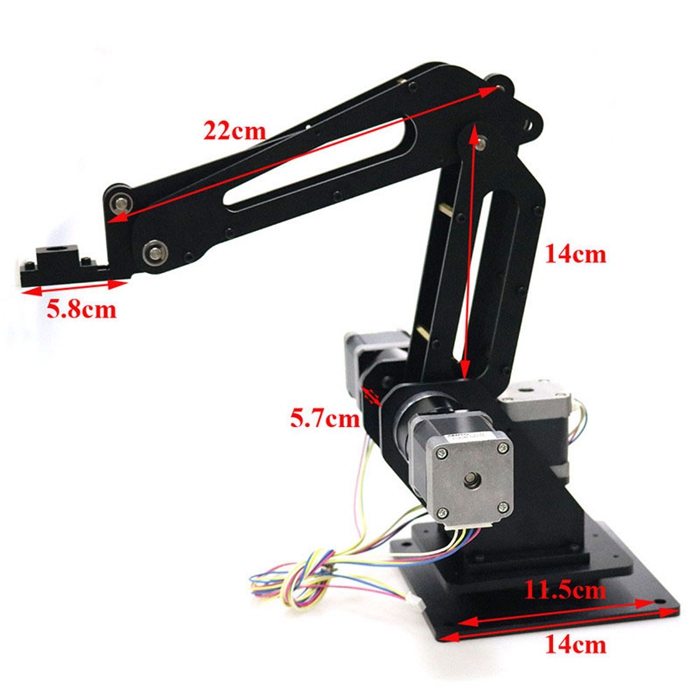

2. The material of the arm is thickened to eliminate the deformation caused by the machining, and the overall strength and precision are improved. The maximum radius of rotation of the arm is 400 mm.
3. The base rotary motor installation is no longer affected by the length of the motor, and motors of any length can be installed.
4. The robot arm can directly install the higher precision inductive proximity switch and angle sensor.
5. The end can be equipped with 3D print head, suction cup, air chuck, steering gear, pen holder, etc.
6. The control system has matching PC software, which is easy to control.
7. The mechanical arm repeat positioning accuracy is 0.2mm
Applied To:
- Writing and Painting
- Laser Engraving
- Pallet Handling
- 3D Printing
- Teaching
- Automatic Handling
- Color Recognition Acquisition
Motor Parameters:
- Reduction Ratio: 1: 50
- Motor Length: 41mm
- Rated Load: 3.5Nm
- Max. Load: 6Nm
- Efficiency: 96%
- Backlash: ≤15arcmin
- Working Voltage: 12-36DCV, Recommended Working Voltage: 24V DC
- Weight: 0.4 kg
Package Included:
- 1 x 3-Axis Mechanical Arm with Motors
- 1 x User Manual
Note:
- Please leave a message about your desired color when purchasing.
- Source code and the user manual will be provided after purchasing. Thank you!
