Features:
- High performance maximum power point tracking (MPPT)
- Reverse power transmission
- Intelligent monitoring management
- Input /output is fully isolated to protect the electrical safety
- Multiple parallel stacking
- Digital control system
- Simplify maintenance (user serviceable)
- Operation and maintenance costs low
- Flexible installation
- Use the wireless 433MHz communication mode

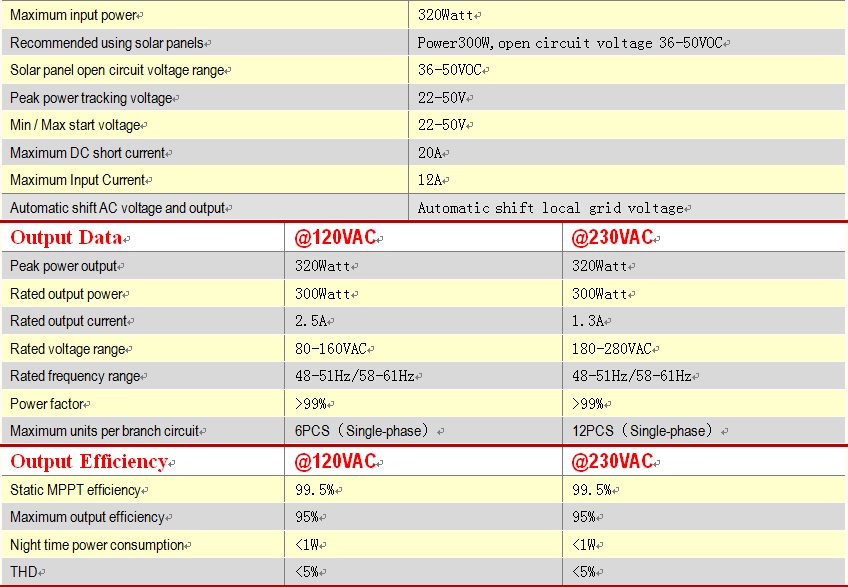

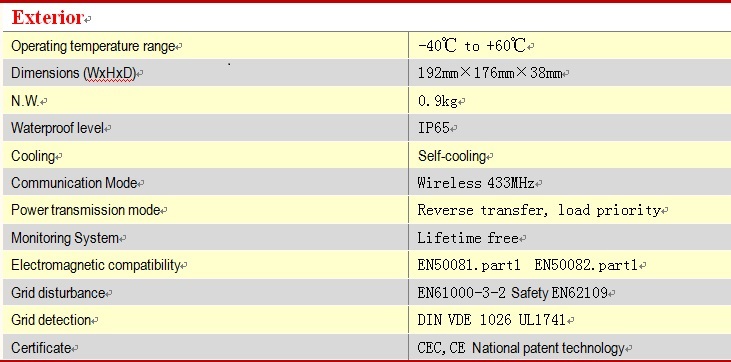

Parameters:

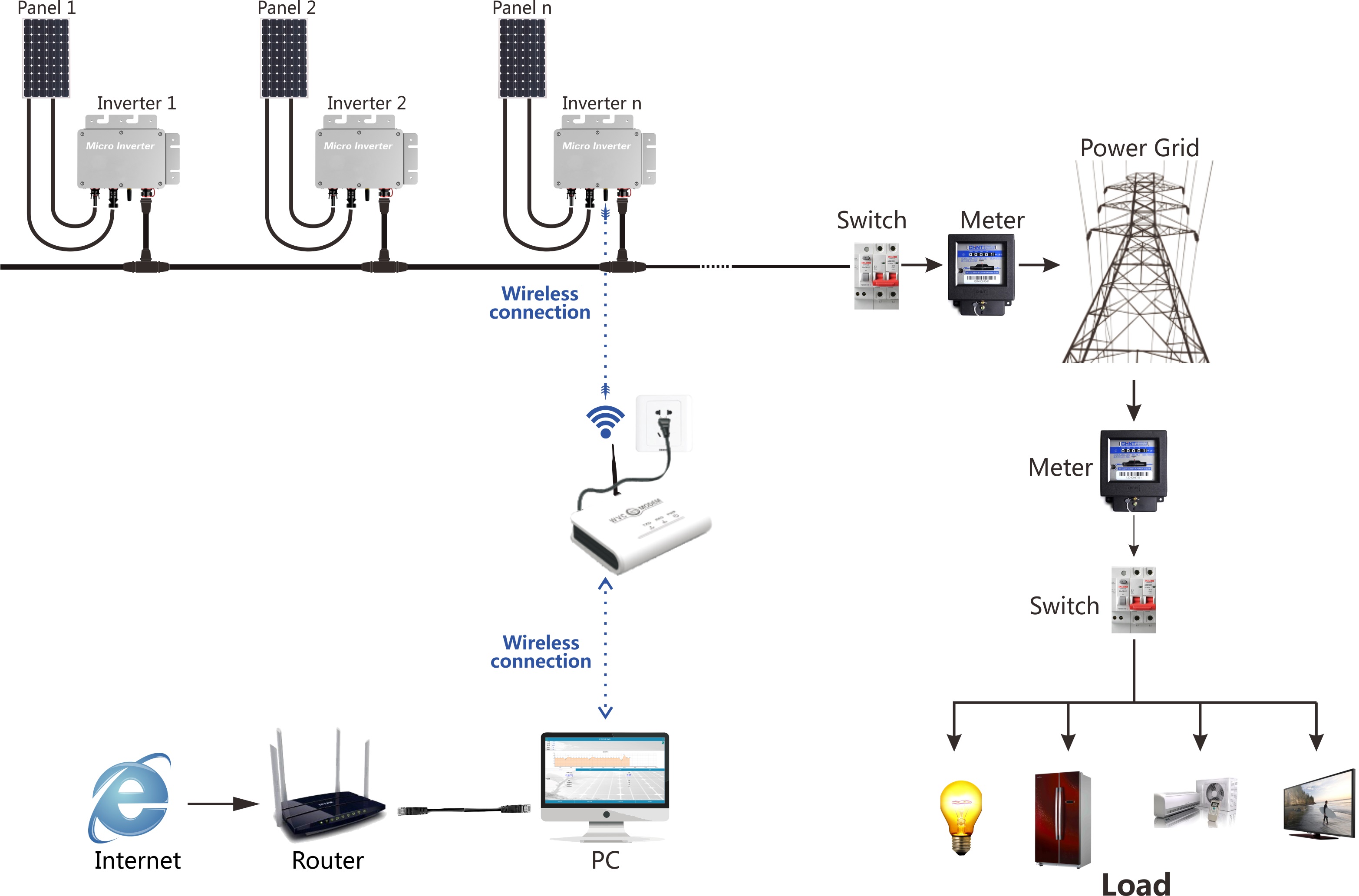

System Block Diagram:

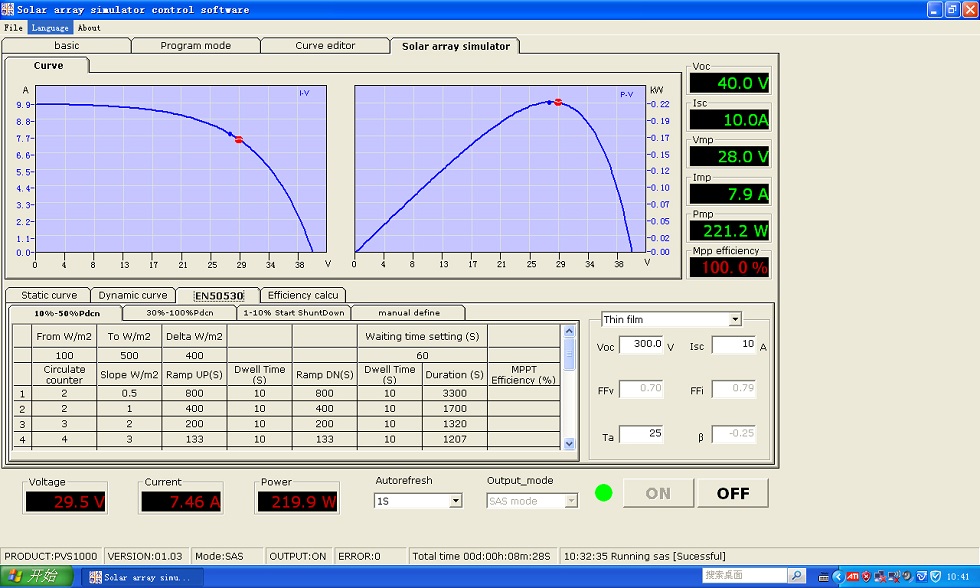

High Performance Maximum Power Point Tracking (MPPT):
Powerful MPPT algorithm，optimize the power from the solar panels to collect，accurately collect and lock the maximum output power point, a substantial increase in output power greater than 25% or more.
Power Output:(Reverse Power Transmission):
Reverse efficient power transmission technology，patented technology，the inverter power transmission in the reverse direction，automatic detection circuit load and using priority，
additional power transmitted to the grid，power transmission rate up to 99.9%. Higher output efficiency in photovoltaic application system manipulation.
