• 30KV Rectangular Version HF Static Electricity DC High Voltage Module Boost Module Step-up Transformer Support 24-Hour Operation

30KV Rectangular Version HF Static Electricity DC High Voltage Module Boost Module Step-up Transformer Support 24-Hour Operation

Availability: In stock, usually dispatched in 1 business day

  • Price:$23.06
  • Price in reward points: 231 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $22.60 $22.14 $21.45 $20.52 Contact US
Quantity:

30KV Rectangular Version HF Static Electricity DC High Voltage Module Boost Module Step-up Transformer Support 24-Hour Operation

Description:

- The cylindrical model has a stable working time of 0.5 hours, which is more cost-effective and stable than other products of the same type.
- The rectangular style, which truly achieves 24-hour work, is the most stable product in our store, strongly recommended.
- Unlike the common 1-minute arc pulling module on the market, this product is expensive and comes with high stability, high efficiency, and low heat, especially for the 24V input type (rectangular type), which can truly achieve 24-hour continuous discharge. This product is mainly used for scientific research experiments, voltage resistance testing, electrostatic discharge, ionized gas, negative ions, corona ozone, ion wind, electrostatic generation, etc.

Specification:
- Product size:

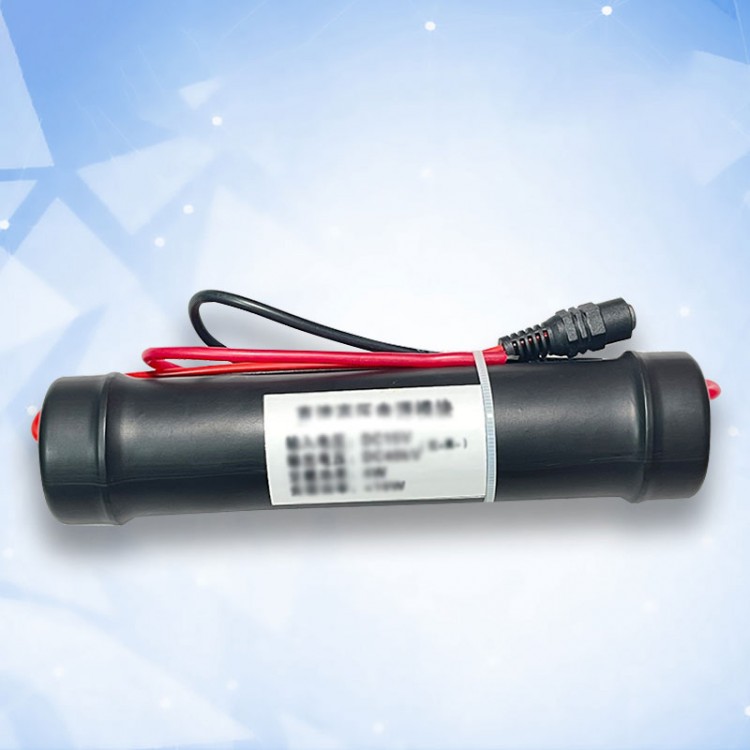

  Cylindrical version: 32 x 130mm for 30KV version; 32 x 150mm for 40KV version
  Rectangular version: 120 x 55 x 32mm (40/30KV)
- No-load power: 4W
- Load power: < 8W (long time working)
- Maximum load power: < 16W (short time working)
- Input voltage: 15V (cylindrical version)/ 24V (rectangular version)
- Load current: < 1A
- Output voltage: 30kV/40kV
- Arc length: 2cm/3cm
- Output current: <1mA (The 30kV/40kV modules have the same power, so the 40kV current is slightly lower)
- Pulse frequency: 3 - 10 times/second (Due to the output current of this product being less than 1mA, it is mainly corona discharge and should not generate arcs. During no-load operation, a 1G-3G ohm resistor should be connected in parallel at the high-voltage output end.)

Package Included:
- 1 x Module
