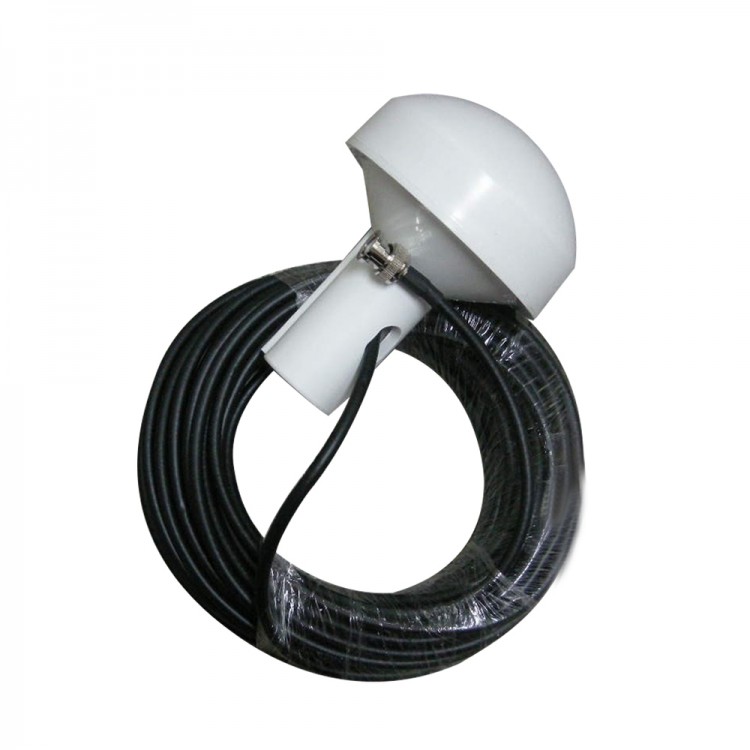

30M/98.4FT GPS Antenna Cable Timing Antenna Clock Antenna For NTP Server GPS Beidou II GLONASS
Description:
30M/98.4FT antenna can be connected to clocks and other devices that require GPS signals to provide high-quality GPS signals.
The cable length can be extended to more than 100m/328.1ft. A cable amplifier can be added when cable length exceeds 50m/164ft.
Specifications:
- Frequency Range:
* 1575±5MHz (GPS)
* 1561±4MHz (for Beidou II)
* 1609±8MHz (GLONASS)
- Polarization method: Right-hand circular polarization
- Antenna gain: ≥3.5dB
- Amplifier gain: ≥37dB
- Noise figure: ≤1.5dB
- Reflection loss: -14dB (i.e. standing wave ratio≤1.5)
- P-1: ≥ 10dBm
- Interference suppression: ≥25dB (f0±100MHz)
- Power supply: 3V/5V DC
- Connector: N type (female) or BNC; SYV-50-3 cable 30m or optional
- Installation method: threaded (M24×1.5) connection
- Volume: Diameter 96 × 126mm/3.8 x 5"
- Working temperature: -45℃ to 85℃
- Storage temperature: -50℃ to 90℃
- Humidity: 100%
Package Included:
- 1 x Set of Antenna
