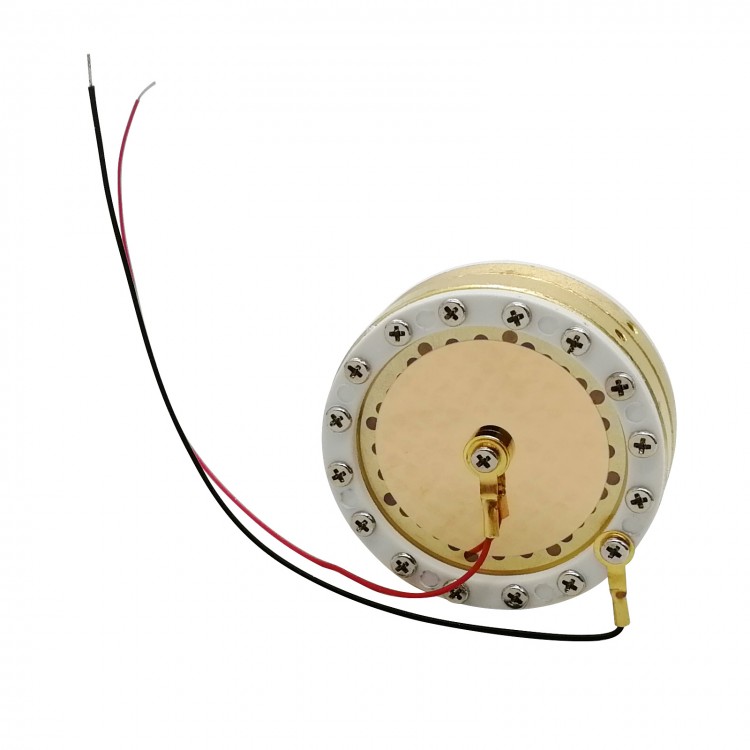

34mm Capsule Large Diaphragm Condenser Mic Capsule for Recording Microphone Studio ISK Mic
Features:
- 34mm capsule for large diaphragm condenser microphone
- Gold-plated layer made of gold wire with a purity of 99.99%, not a 24K imitation gold
- Gold-plated film enables high sound reproduction degree, delicate and natural sound, and wide frequency response
- Perfect recording studio accessory
- Powered by 48V Phantom power
- Works with microphone circuit board
Technical Parameters:
- Element: Pressure Gradient Transducer
- Gold-Plating: Single-faced
- Frequency Response: 20Hz-20KHz
- Sensitivity: -33dB±3dB (0dB=1V/Pa at 1KHz)
- Max. Input SPL: 138dB (at 1KHz= 1% T.H.D.)
- Power Requirement: 48V Phantom Power
- Operating Temperature: 5℃ to 35℃
- Storage Temperature: -10℃ to 55℃
- Microphone Capsule Diameter: 34mm
Wiring:
- Red Cable: + (Signal Wire)
- Black Cable: GND (Connect to the GND port of microphone circuit board or "-")
Package Included:
- 1 x 34mm Capsule
- 1 x Storage Box
Note:
- Please not touch the gold-plated film and the back film with your hands.
- Please not loose screws.
- Please not blow wind or spray water to it.
- Please keep it dry. Cover it with wind-shield cotton or anti-spray shield while using.
- Please place and use it carefully.
