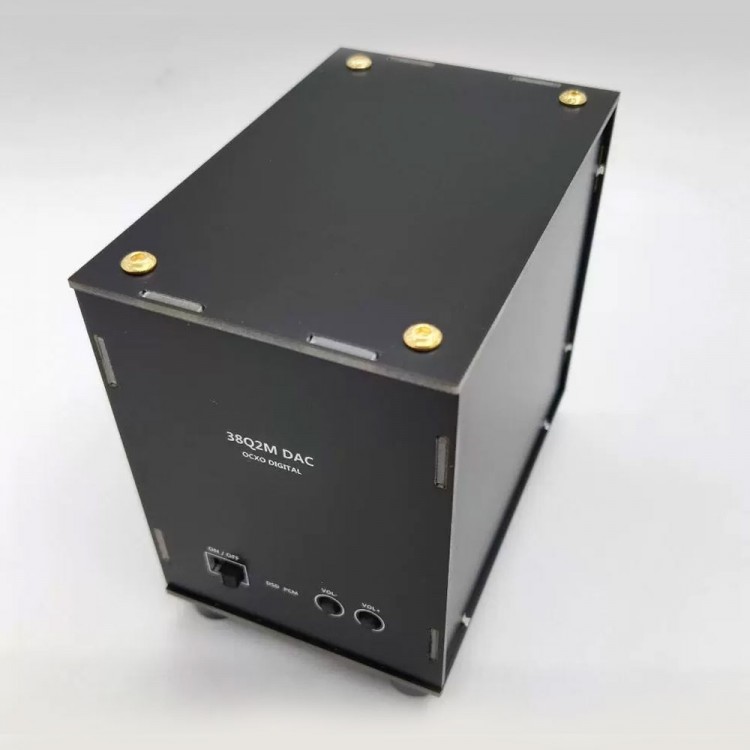

38Q2M DAC ES9038Q2M Audio DAC OCXO Audio Decoder Coffee Color for 768KHz PCM DSD256 DOP128 Input

38Q2M DAC ES9038Q2M Audio DAC OCXO Audio Decoder Coffee Color for 768KHz PCM DSD256 DOP128 Input

Features:
- 38Q2M is a DAC based on ES9038Q2M, with HDMI I2S interface.
- Its built-in high-frequency low-phase noise OCXO reshapes the input data.Generally speaking, for CCHD950/575 femtosecond crystal oscillator, 10HZ phase noise performance is about -90dbc/Hz. The OCXO used by the 38Q2M is better than 108dbc/Hz at 10HZ. With the help of OCXO, it upscales and resamples the input signal.
- Its I/V conversion circuit and LPF filtering use the fully discrete transistor circuit of foreign mature circuits, Class A working state, a total of 4-way I/V and 2-way LPF, and RCA socket output. Specially designed positive and negative regulation provides power to this part of the circuit.
- Its RCA output voltage is up to 3.8V, which is very effective for low gain amplifier stages. Users can also adjust the output voltage by using buttons on the front panel. Built-in delay relays prevent shock noise during power-up. The sound output will not occur until 10 seconds after the power is turned on.
- Input signal formats include: PCM up to 768KHz, DSD native up to DSD256 (DSD512 lock will be slower) and DOP up to DOP128.
- The working voltage of the whole machine is 9V, and the current should be 1A or above.
- There is a 9V high-quality switching power supply.
- Dimensions: 100x95x65mm/3.9x3.7x2.6".
- The polarity of the HDMI interface signal is +-/+-/+-/+-. If this polarity is not I2S, the opposite channel will occur.

Package Included:
- 1 x DAC
- 1 x Switching Power Supply
