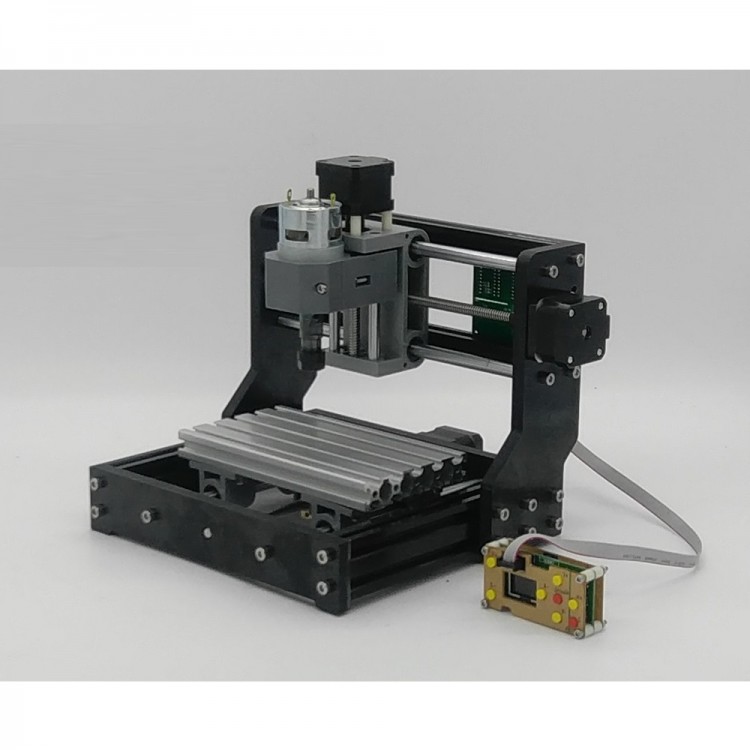

3Axis Mini CNC Engraving Machine CNC Laser Engraver 18*10cm GRBL Control USB Port Finished 1610PRO

Availability: In stock, usually dispatched in 1 business day

  • Price:$214.39
  • Price in reward points: 2144 Reward Points: 21
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $210.10 $205.81 $199.38 $190.81 Contact US
Quantity:

3Axis Mini CNC Engraving Machine CNC Laser Engraver 18*10cm GRBL Control USB Port Finished 1610PRO

Description:

The machine can be used for CNC engraving as well laser engraving. It is for materials, including wood, plastics, PCB, carbon fiber, Acrylic, and MDF.

Specifications:

- Dimension: 300 x 260 x 250mm
- Travel (Engraving Range): 180 x 100 x 45mm
- Working Area: 180 x 100mm
- Diameter of Guide Rail: 10mm
- Stepper Motor: 42 Stepper Motor 1.3A/0.3N.m
- Supported Operation System: for Widows XP/7/8/10/Mac OS
- Power Supply: AC 110-240V
- Control System: GRBL (USB Interface)
- N.W.: 5kg

For 3Axis CNC Engraving with Spindle Motor:

- Spindle: 45mm in Diameter; 10000r/min; 120W Max.
- Collect: ER11-3.175mm (Can be replaced with 0-7mm)
- Design Software: No Included
- Control Software: GRBL Control (Candle)
- Supported Files: G-code (.nc.txt.tap.gcode, etc.)
- Processing Accuracy: around 0.2mm
- For Materials: Including Wood, Plastics, PCB, Carbon Fiber, Acrylic, and MDF

For 2-Axis Laser Engraving:

- Laser Port: 12V, Supporting PWM
- Optional Laser Power: 500mW/2.5W/5.5W/7W/15W
- Design Software: Any CAM (Computer Aided Manufacturing) Software
- Control Software: Laser GRBL
- Supported Files: G-code/Graphics
- Processing Accuracy: 0.1mm
- For Materials: Including Wood, Plastics, Leather, and Paper

Package Included:

- 1 x Finished CNC Engraver Machine

Note: Laser module is not included. Optional Laser Power: 500mW/2.5W/5.5W/7W/15W. If it is needed, please contact us. Thank you!
