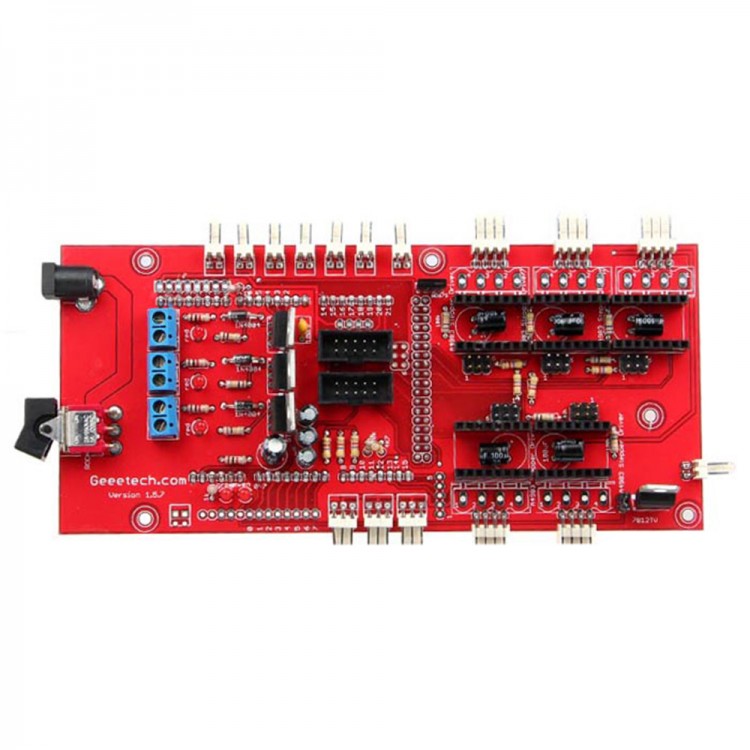

3D Printer Control Panel Module for Arduino MEGA Ultimaker MPU Board Circuit Board
Specification:
- Size:184mm*85mm
- Weight:68g
- Compile environment:A-duino IDE
- Firmware:Marlin
- PC software:Printrun Repetiter-Host
- Power input: 12V-20V
- Supoort motor: 5pcs
- Motor drive support: A4988 DRV8825
- Screen support: LCD2004 LCD12864
- Compiler environment: Arduino IDE
Features:
- Based on Aduino Mega
- Adopt four channels JST plug connection
- Suitable for Ultimaker's Ultistepper driver
- Compatible with Pololu stepper driver boards
- Support 5 motors
- Can configure the step through change wire
- Three pieces 55Amp MOSFET pipe(have led Indicator light,The actual output ability being limited by the PCB and connector)
- Working voltage:15v-19v
- Three channels thermocouple(or thermistor) input(suggest 100k thermistor)
- Support external LCD 12864module and LCD 2004 Module,Backlight can be adjusted by software
- Support external sd card module
- Support the thermocouple wiring
- 12V Voltage chip,support power to fan
- Support bluetooth module and Ethernet module
Package included:
- 1 x 3D Printer Control board
