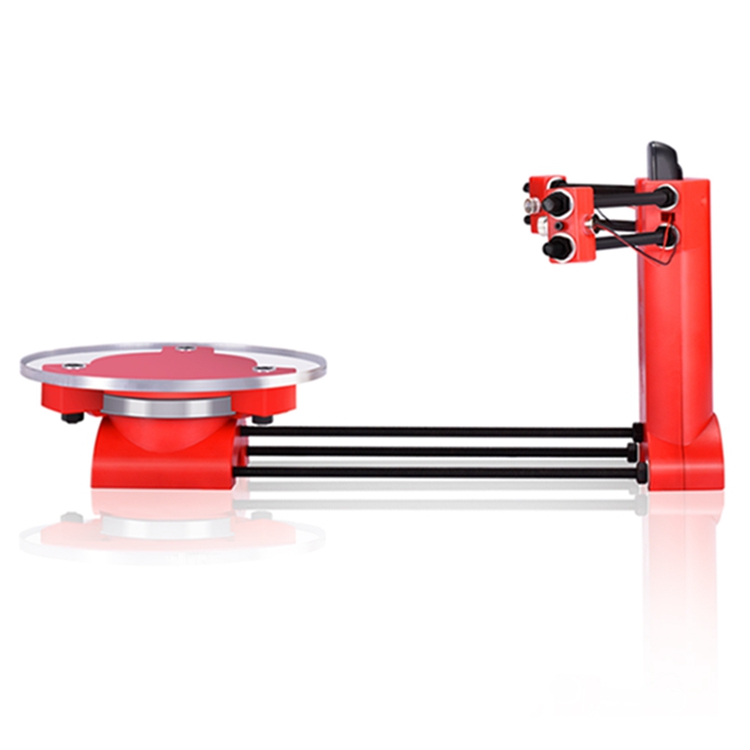

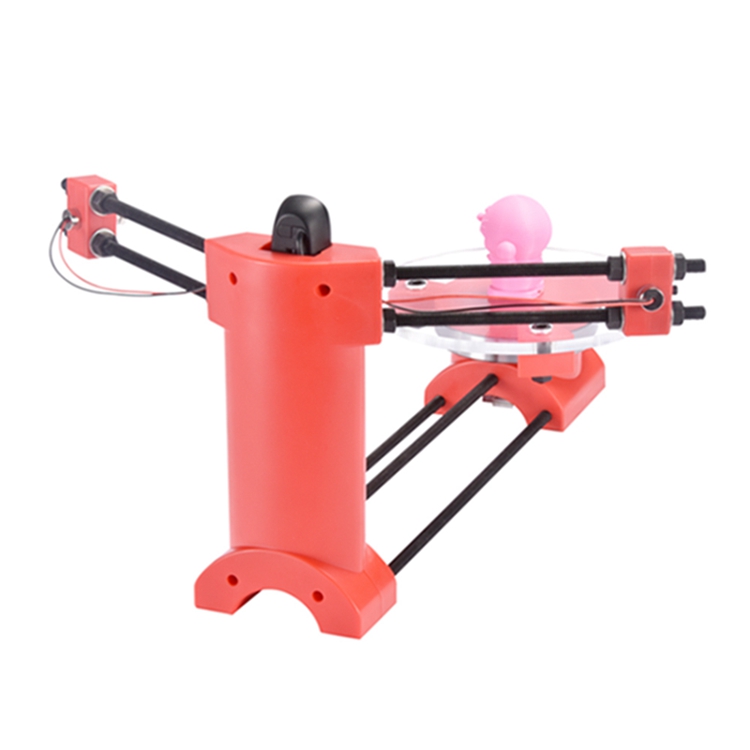

3D Scanner Parts Kit Open Source DIY Advanced Laser Scanner Red Plastic Injection Moldling

3D Scanner Parts Kit Open Source DIY Advanced Laser Scanner Red Plastic Injection Moldling

Description:
Ciclop belongs to desktop 3D scanners, which can not match with industrial standard scanners, and it is not suitable for scanning irregular and complex objects, only scan nearly cylindrical object, the effect will be more ideal, there are many factors affect scan result like scanned objects, environment and light. There is a big relationship between them, so we recommend you scan in Constant Light Studio, scanning results will be better.

This Scanner is Easy to Scan:
1. Object space volume is bigger than 5*5*5 cm
2. Object space volume is small than 20.3cm*20.3*20.3cm
3. Object weight is less than 3kg
4. Still object
5. Opaque object

FAQ: Which things are hard to scan or can not be scanned?
1. Object space volume is smaller than 5*5*5cm
2. Transparent object (glass or organic plastics)
3. Luminous object or highly reflective objects
4. Dark object and fuzzy objects (such as plush toys)
5. Object space volume is bigger than 20.3*20.3*20.3cm
6. Object weight is more than 3kgs
7. Moving objects

3D Scanner Firmware:https://www.dropbox.com/sh/58ooxy4kujjw28l/AAAYBIn65zsbVBPMmpNbrSGFa?dl=0

Specifications:
- Product Name: 3D Ciclop Scanner
- Precision: 0.5 mm
- Scanning time (configurable): 2-8 min
- Steps per rotation: 1600 max
- Scan volume: 203mm x 203 x 203mm
- Maximum supported weight: 3Kg

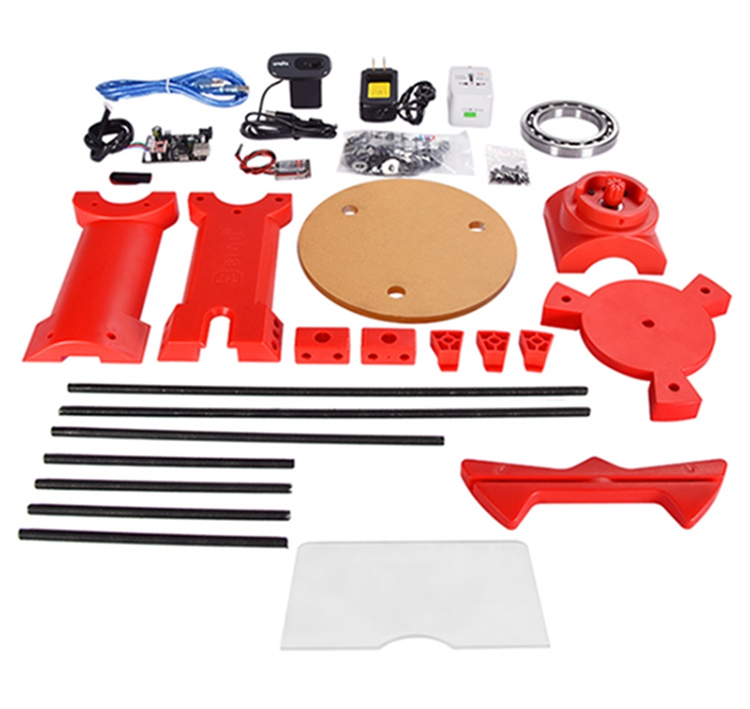

Package Included:
- 1 x ZUM Scan Expansion board
- 1 x A4988 stepper drive chip
- 1 x 720 HD camera
- 2 x Lasers
- 1 x 42 stepper motor

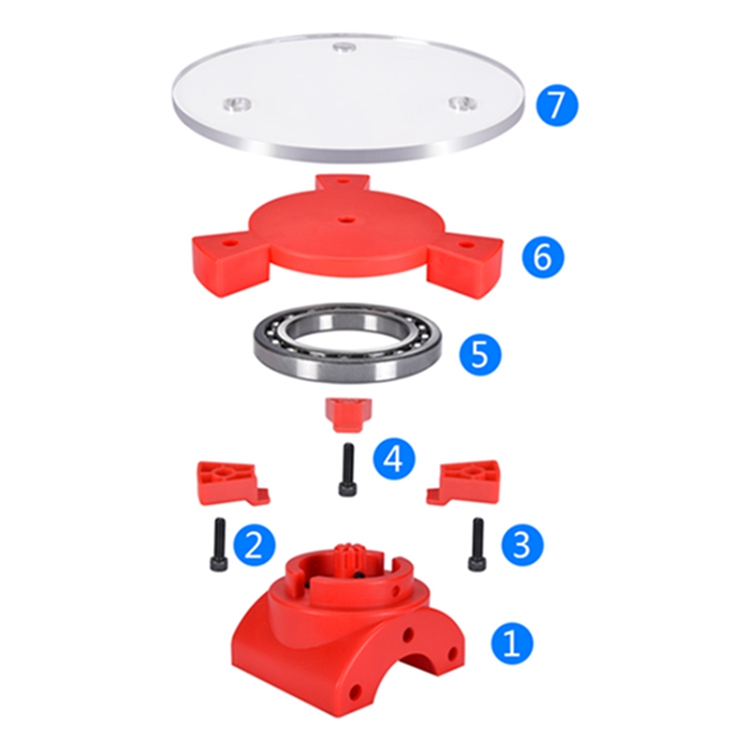

- 1 x 16014 bearing
- 1 x 12V, 2A adapter
- 1 x 200mm acrylic chassis
- 1 x acrylic Calibration board

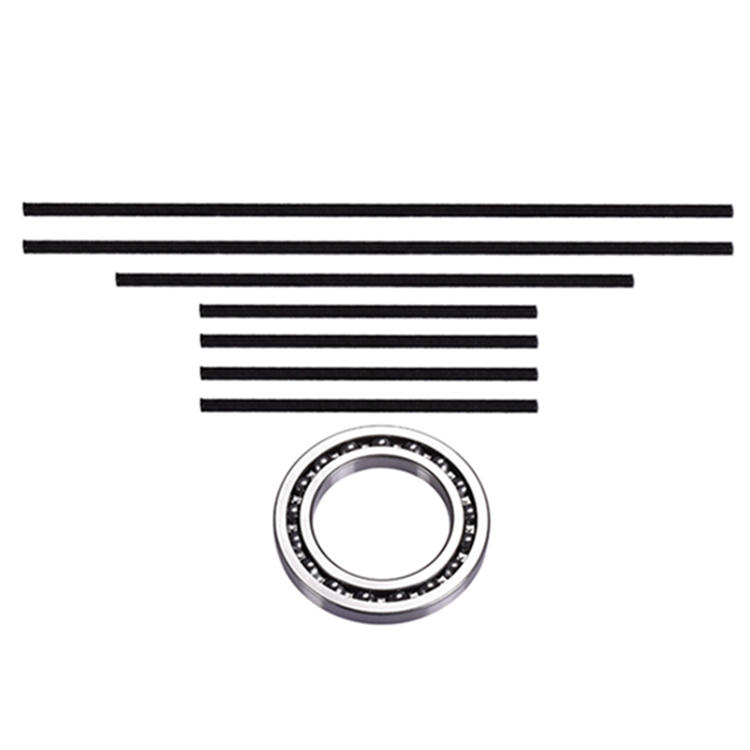

- 2 x M8*400mm screws
- 4 x M8*170mm screws
- 1 x M8*292mm screw
- 10 x M3*10 screws
- 10 x M3 nuts
- 3 x M8*10mm screws
- 28 x M8 nuts
- 18 x M8 washers
