BPF-10.7M Bandpass Filter 10.7M+/-0.5M 50ohms High Quality RF Accessory with SMA Female Connector
$21.59
OC3-ADJ 75ohms 5.0Vpp 3-Channel Adjustable Frequency Standard OCXO 10K-150M High Quality RF Accessory
$134.75
OC3-ADJ 75ohms 3.3Vpp 3-Channel Adjustable Frequency Standard OCXO 10K-150M High Quality RF Accessory
$134.75

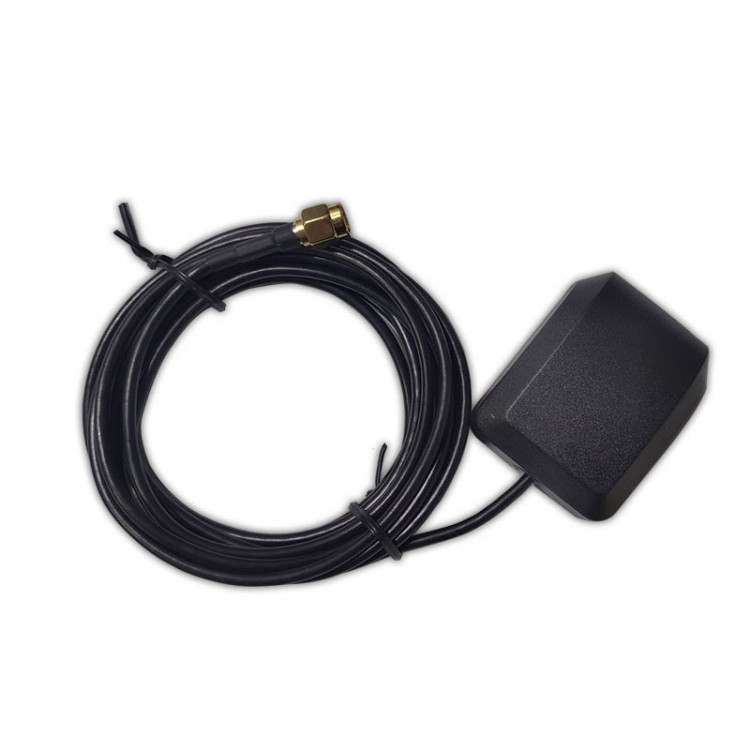

3M/9.8FT Car Antenna GPS Beidou Vehicle Active Antenna with SMA Interface
Features:
- Antenna for GPS and Beidou
- Designed with SMA male connector
- 3m/9.8ft car antenna
- Easy installation
Specifications:
- Frequency range: 1575±5MHz (GPS)
- Polarization mode: right-handed circular polarization
- Antenna gain: -3dBic at 10°; 3.5dBic at zenith
- Amplifier gain: 27dB
- Noise figure: 1.5dB
- Power loss: 5±0.5vdc at 12mA
- Interference Suppression: 20dB (fo±140MHz)
- Weight: 115g/0.3lb
- Connector: magnetic adsorption or other
- Connection: 3-5m/9.8-16.4ft cable (the shielding layer of the core is pure copper) (SMA-F, TNC-F, or other)
- Operating temperature: -45°C to 85°C
- Storage temperature: -50°C to 90°C
- Humidity: 100%
Package Included:
- 1 x Antenna
