Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $25.95 | $25.42 | $24.63 | $23.57 | Contact US |

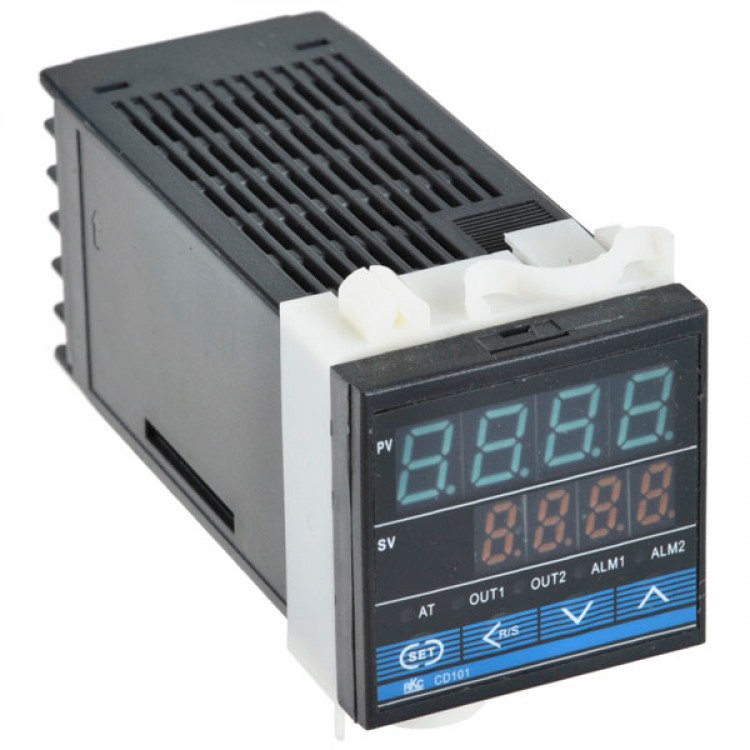

4 Digit Universal RKC CD101 Temperature Controller Temperature Controller Relay
Description:
- CD Series Intelligent Temperature Controller adopts 100-240VAC wide range input switch power supply and SMT,with multiple input signal, control output mode and alarm mode. Artificial Intelligence and expert PID control function, PID self-adjustment function and self diagnose function.
Specifications
- Input Signal(general input,sotware setting)
- TC K,J,R,S,B,E,N,T,
- RTD Pt100,Cu50,
- Voltage Signal DC0-50mV,DC0-5V,DC1-5V
- Current Signal C0-20mA,DC4-20Ma
- Resistance Signal 0-400Ω
- Measure Precision ±0.5%FS
- Main Control Output Mode
- Main Contact SSR,SCR Cross Zero trigger,SER shit phase
- Standard Voltage Signal(0.5V,1-5V)
- Standard Current Signal(0-20mA,4-20mA)
- Alarm Output 11 kinds of alarm mode(choose idle function,software setting)
- Input Power Supply AC100V-240V 50/60Hz
