| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $19.95 | $19.55 | $18.93 | $18.12 | Contact US |
BPF-10.7M Bandpass Filter 10.7M+/-0.5M 50ohms High Quality RF Accessory with SMA Female Connector
$21.59
OC3-ADJ 75ohms 5.0Vpp 3-Channel Adjustable Frequency Standard OCXO 10K-150M High Quality RF Accessory
$134.75
OC3-ADJ 75ohms 3.3Vpp 3-Channel Adjustable Frequency Standard OCXO 10K-150M High Quality RF Accessory
$134.75

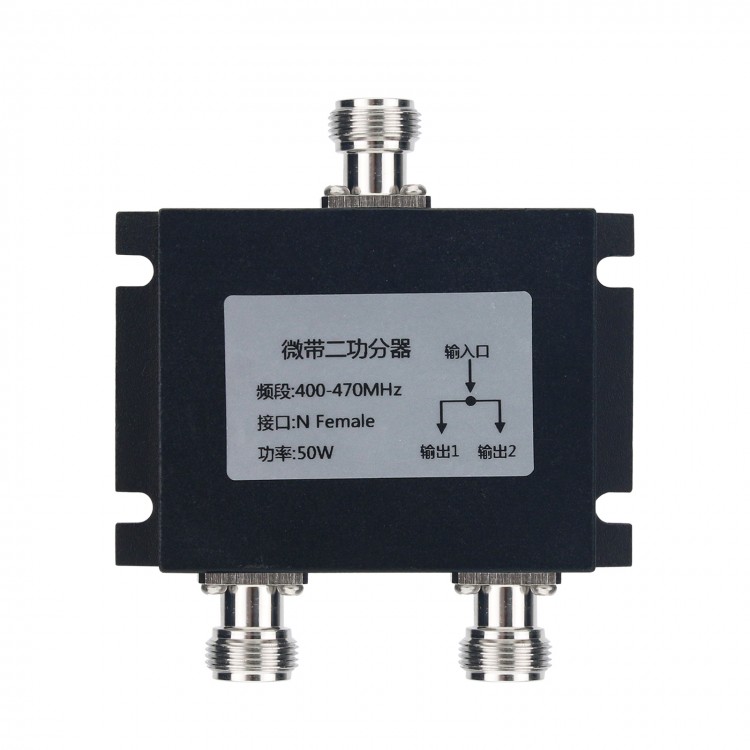

400-470MHz 2-Way Microstrip Power Divider RF Power Splitter Designed with N-Female Connectors
Features:
- 50W 2-way microstrip power divider
- Designed with N-female connectors
- Quality materials: Copper (connector) and aluminum alloy (cavity)
- Uses: Indoor distribution system, repeater, communication engineering coverage, system network splitting and merging
Technical Data:
- Frequency Range: 400-470MHz
- Split Loss: 3.0 dB
- Insertion Loss: ≤ 0.4 dB
- VSWR: ≤ 1.3
- Isolation: ≥ 20 dB
- Impedance: 50Ω
- RF Connector: N-F
- Average Power: 50W
- Temperature: -20 to +70 ℃
- Weight: 0.22Kg/0.5Lb
- Product Size: 96 x 88 x 21mm/3.8 x 3.5 x 0.8"
Package Included:
- 1 x RF Power Divider
