4000W AC Electronic Voltage Regulator w/ Imported SCR Shell For Light Speed Temperature Control
Product Parameters:
- Product name: 4000W AC voltage regulator
- Thyristor model: BTA41-800B

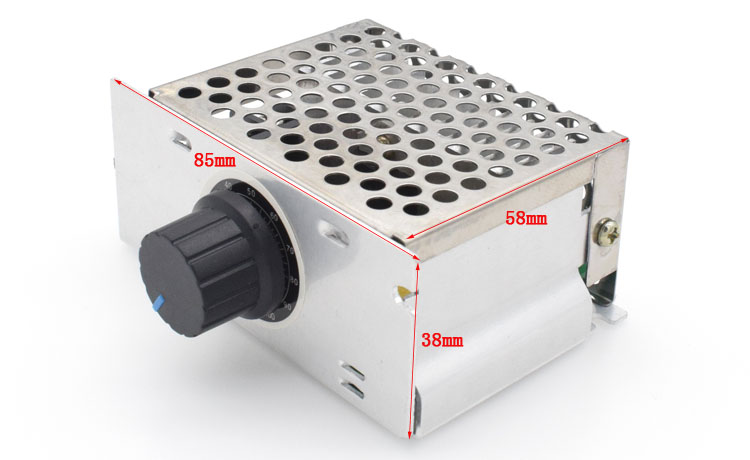

- Size: 85*58*38mm (LxWxH). The inner hole of the knob is 6mm.
- Suggested power: 4000W (resistive load limit power). The power should be reduced for a long run. It is recommended to use at room temperature resistive load within 2000W
- Efficiency: more than 90%
- Working voltage: AC 220V
- Regulated voltage: AC 0-220V (up to more than ten volts under resistive load, zero volts can be adjusted back)
- Product features: Knob with switch function
Attention:
- The voltage must be measured under load, and the no-load voltage remains the same
Package Included:
- 1 x AC Voltage Regulator
