40A MPPT Solar Charge Controller Tracer4210A + MT-50 + Remote Temperature Sensor

Availability: In stock, usually dispatched in 1 business day

  • Price:$175.75
  • Price in reward points: 1758 Reward Points: 18
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $172.24 $168.72 $163.45 $156.42 Contact US
Quantity:

40A MPPT Solar Charge Controller Tracer4210A + MT-50 + Remote Temperature Sensor

Features :

- Advanced MPPT technology
- High tracking efficiency no less than 99.5%
- Peak conversion efficiency of 98%
- Ultra-fast tracking speed
- Accurately recognizing and tracking of multiple power point
- Multi-function LCD displays system information intuitively
- User programmable for battery types, load control etc.
- 3-Stage charge with PWM output
- Common positive grounding design
- RS485 port with industrial standard MODBUS open architecture
 - Fully programmable function via PC software or remote meter


MT-50:
Features:

- Automatic identify  the controller, and display the type, model and relevant parameter data
- Large-screen multifunction LCD displays all the operational data and system working status in digital, graphic and textual forms
- With six navigation function keys, the  operation is direct, convenient and rapid
- Real-time energy statistics recording
- Both data and data flowing on the same lead ,no need for  external power
- Real-time monitoring and acoustic alarm of failure information of the controller
- Longer communication distance based on RS485

More powerful function Via MT50
- Diversified load control modes:manual, light ON/OFF, Light ON+ Timer, Time Control
- Battery type selection: Gel, sealed, flooded and USER type
- Real-time monitor
- Programmable parameters
- Energy  display function

Spefication:
- Self-consumption:Backlight and acoustic alarm on<65mA, Backlight on<23mA,Backlight off <15mA
- Faceplate dimensions:98×98 mm / 3.86×3.86 in
- Frame dimensions:114×114 mm / 4.49×4.49 in
- Connector type:RJ45
- Meter cable:Standard 2m, max .50m
- Meter weight:0.190 Kg
- Ambient Temperature:-20 -+70C/-4-158

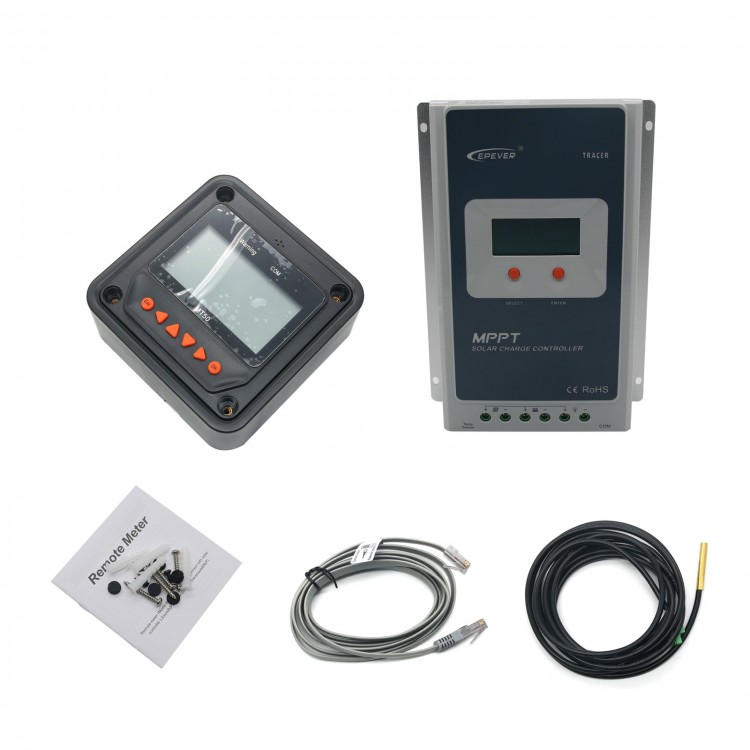

Package Contents:
- 1 x Tracer4210A
- 1 x MT-50
- 1 x Remote Temperature Sensor
