• 433MHz 30W Version RF Power Amplifier Module RF Power Amp with SMA Female Connector for DIY Use

433MHz 30W Version RF Power Amplifier Module RF Power Amp with SMA Female Connector for DIY Use

Availability: In stock, usually dispatched in 1 business day

  • Price:$233.85
  • Price in reward points: 2339 Reward Points: 23
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $229.17 $224.50 $217.48 $208.13 Contact US
Quantity:

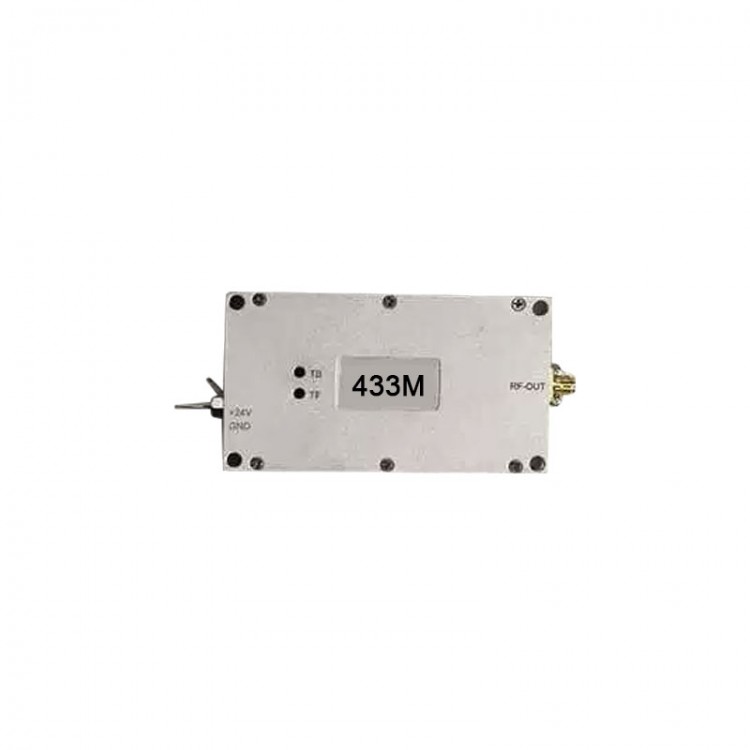

433MHz 30W Version RF Power Amplifier Module RF Power Amp with SMA Female Connector for DIY Use

Features:

- Durable RF power amplifier module
- With simple appearance
- Portable to carry
- Can be used for DIY projects

Specifications:
- Optional frequency bands: 433MHz/900MHz/1.2GHz/1.5GHz/2.4GHz
- Customizable frequency range: 400MHz-3000MHz
- Average output power: 30W
- Antenna connector: SMA female
- Module dimensions: 121 x 53 x 20mm/4.8 x 2.1 x 0.8"
- Hole spacing: 89 x 46mm/3.5 x 1.8"
- Operating current: 2.8-3.2A
- Working voltage: DC24-32V
- Operating temperature range: -30°C to +80°C

Package Included:
- 1 x RF power amplifier

Note:
- Non-professionals please not debug the calibration port, otherwise it will affect the performance of the product.
