433MHz Wireless Barcode Collector Laser Reader Terminal Inventory Data Scanner

433MHz Wireless Barcode Collector Laser Reader Terminal Inventory Data Scanner

TIPS: Please choose express delivery because the product includes battery.

Description:
Wireless data transmission using 433M wireless data transmission technology, with wireless transmission, automatic storage, automatic retransmission, data screen display and other functions, two-way communication, 99 wireless channels, each channel can support up to 255 collector. Can be more than a fat collection, you can also send a multi-collection, the same location can be set at the same time using multiple wireless collector without disturbing each other. Wireless transmission of data automatically check the check function to ensure that the collector and the host computer between the reliable wireless data transmission. Data acquisition and computer connections do not need to install any driver software, upload data directly simple, very convenient.

The data collection can be widely used in commercial and retail management; logistics; drug supervision; food regulation; library management; publications management; mail management; blood bank management; warehouse management; enterprise fixed assets management; banking, insurance; ; Railway; military; public security and other fields; industrial control; catering a la carte; hospital IC card, ordering and other fields.

Main Parameters:
- Operating system.:NETUM inventory system
- CPU count: single core
- CPU frequency: 72MHz
- Keyboard type: T9 numeric keypad

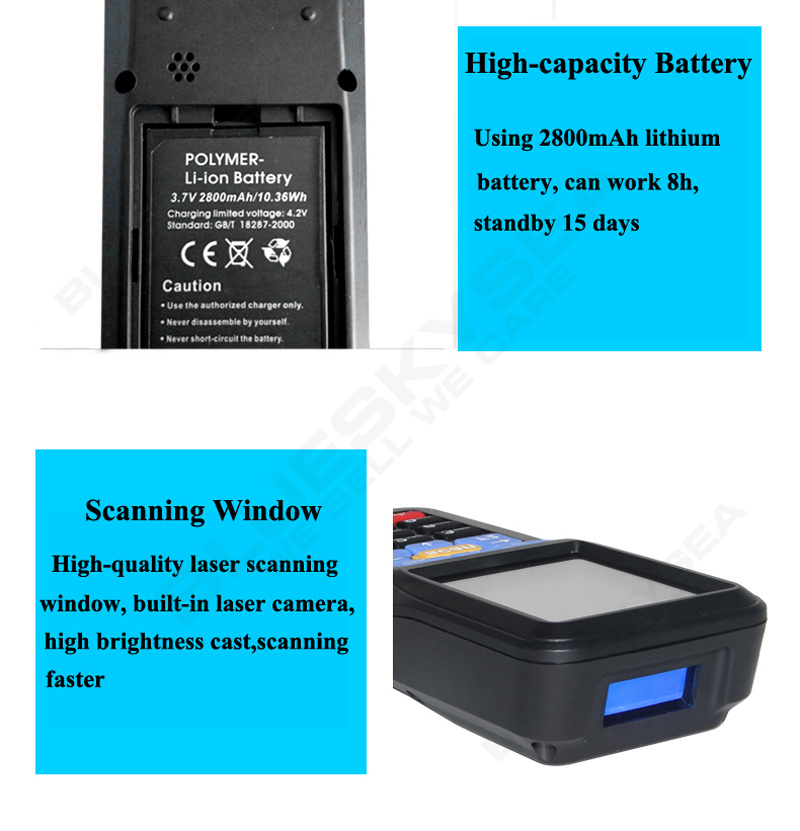

- Power:2800mAh lithium battery(Rechargeable)

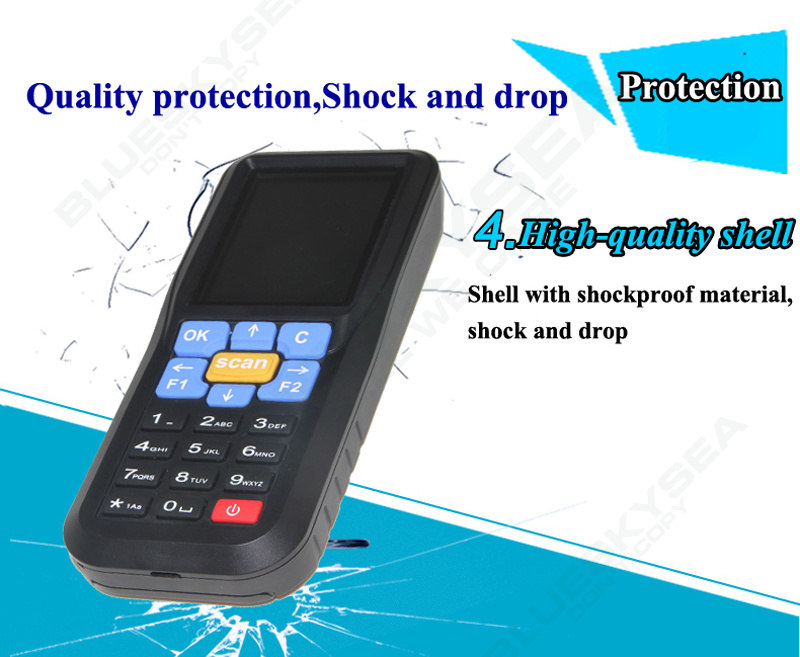

- Material:ABS + silicone
- Working current: 160mA
- Standby current: 8mA

Scan parameters
- Light source type: red laser diode, wavelength 650nm
- Scan mode: Single line scan
- Scanning speed: 48 ± 2 times per second
- Scanning accuracy: 3mil
- Scan width: 20mm window, 220mm  200mm
- Scanning depth of field: 0 ~ 250mm (0.33mm, PCS 90%)
- Bit error rate: 1/5 million

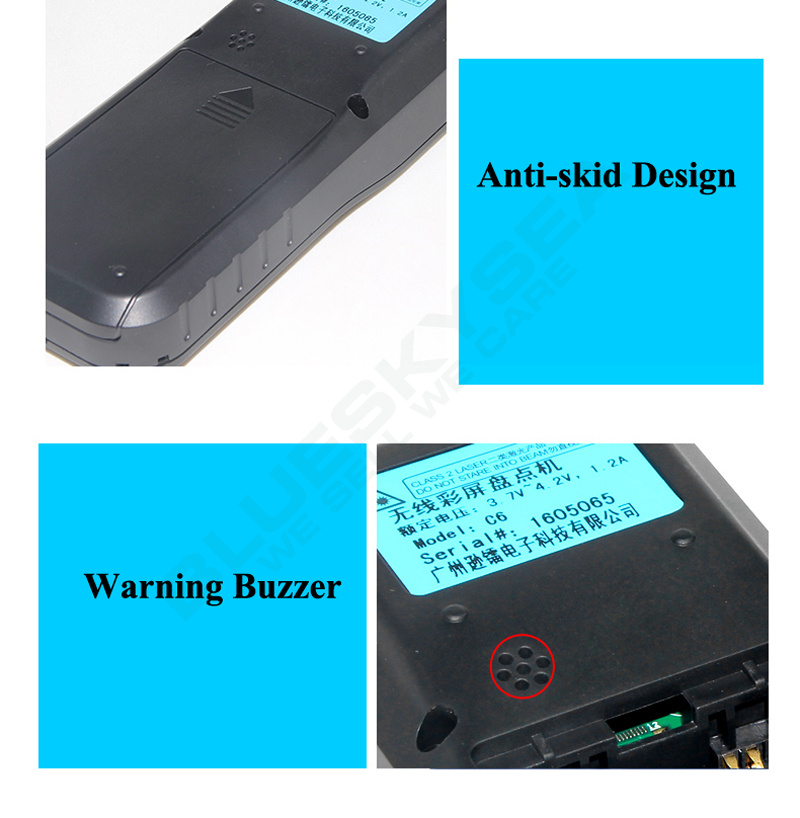

- Prompt mode: buzzer, LCD direct display
- Decoding capability: EAN-8, EAN-13, UPC-A, UPC-E, Code 39, Code 93, Code 128, EAN128, Codaber, Industoal 2 of 5, Interleave 2 of 5, Matrix 2 of 5 and MSI.

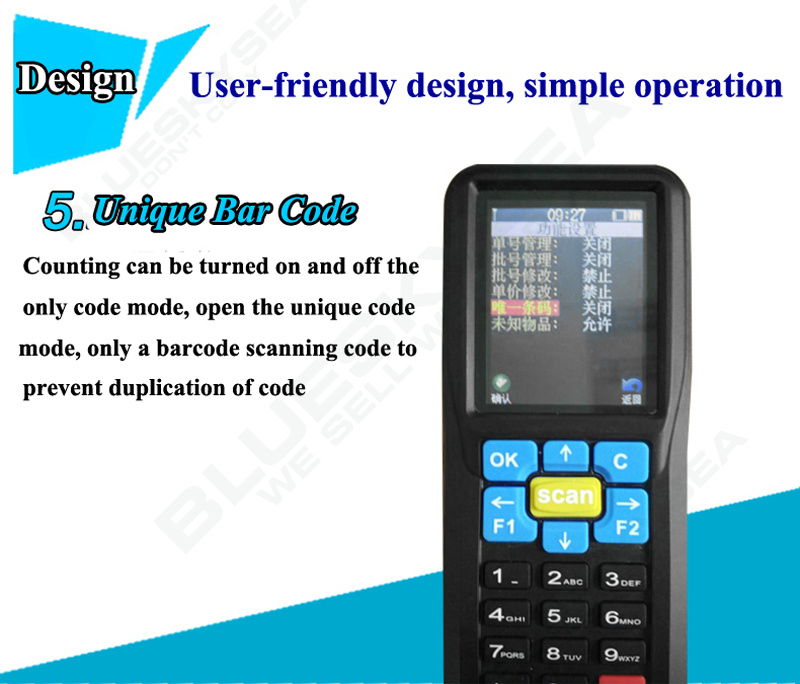

Display:

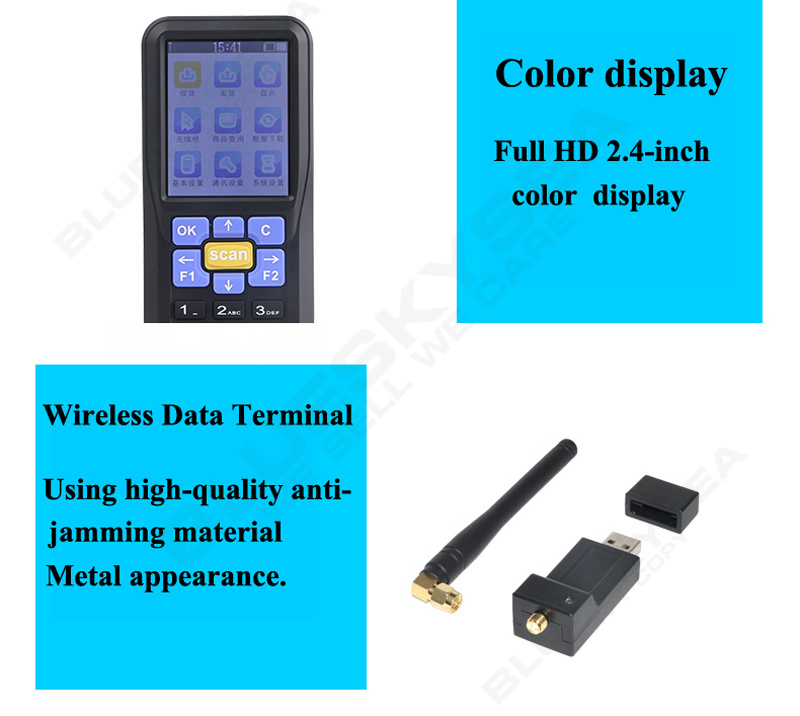

- Screen size: 2.4 inches
- Screen color: color (65,536 colors)
- Resolution: 240 * 320
- Touch screen: not supported

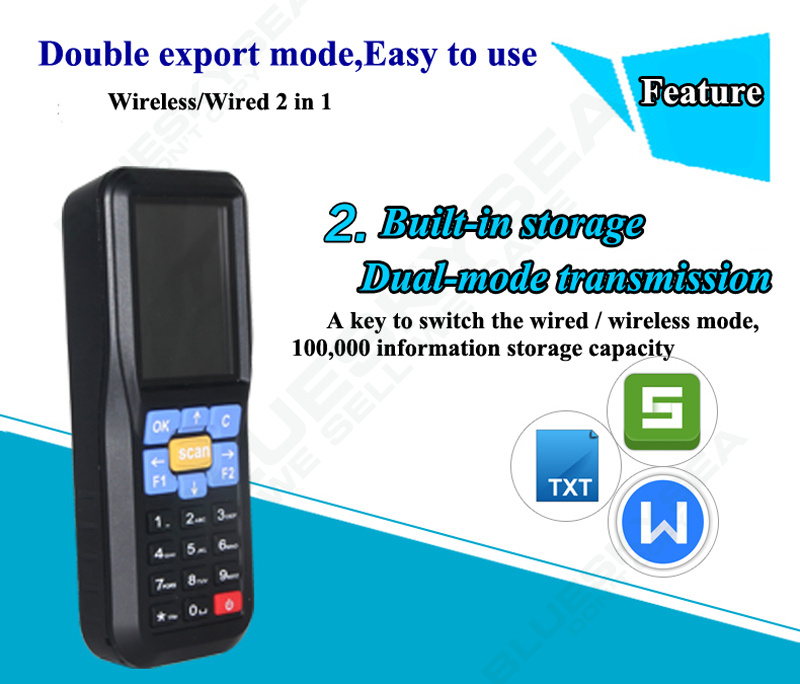

Transmission function
- Data cable USB 2.0
- Wireless transmission wireless 433MHz, visual distance of up to 300 meters

Environmental parameters
- Storage temperature -20 ~ 60 degree C
- Operating temperature 0 c ~ 45 degree C
- Humidity 5% to 95% relative humidity (non-condensing)
- Environmental Brightness Max.5,000 Lux (Fluorescence)
