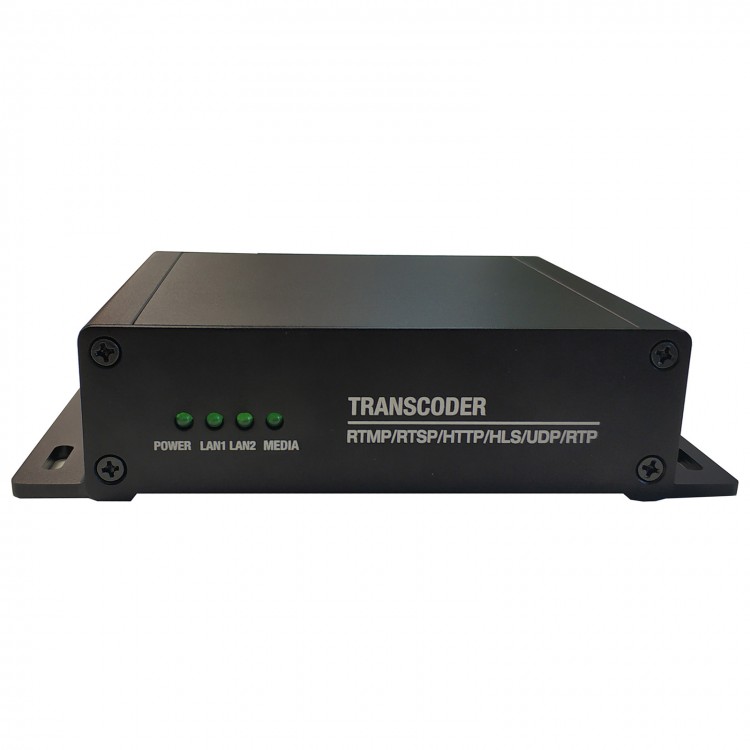

4K Video Transcoder H.265 RTSP To RTSP Max Resolution 3840x2160 8-Way Network Video to Webcast XT3

Transcoder, Video Transcoder

4K Video Transcoder H.265 RTSP To RTSP Max Resolution 3840x2160 8-Way Network Video to Webcast XT3

Advantages:
- Network transcoding + live streaming
- Live broadcast on platforms for RTMP
- For Standard ONVIF connects with NVR for Hikvision & Dahua
- 8 channels 1080P@30 network stream transcoding at the same time
- H.265/H.264/MJPEG
- UDP LAN Multiplayer Live Broadcast
- For TS/FLV/RTSP/UDP/RTMP to TS/FLV/HLS/RTSP/UDP/RTMP
- 7*24 hours stable operation

Specifications:
Audio and video input:
- Video input: 8 network streams
- Audio input: 8-channel network stream built-in audio, 2 external audio reserved

Video transcoding:
- Encoding type: H.264/H.265 optional
- Encoding frame rate: 5-60 adjustable
- Key frame interval (frame): 5-300 adjustable
- Bit rate (kbit): 32-32000 adjustable
- Resolution after encoding: 3840x2160/1920x1080/1680x1056/1280x720/1024x576/850x480/720x576/720x540/720x480/720x404/704x576/640x480/640x360/608x448/544x480/480x480/480x384/480x360/480x320/480x272/480x270/400x320/400x224/352x480/352x228/320x256/320x240/320x180/240x180/176x144/same as input resolution
- H.264 level: baseline profile/main profile/high profile
- Stream control: CBR/VBR optional
- Streaming: Support for RTMP/ RTSP/HTTP TS/HTTP FLV/HLS/UDP multicast/RTP multicast

Audio transcoding:
- Encoding sampling rate: 44100/48000 optional
- Coding method: AAC /AAC+/AAC++/MP3/MP2/ AC3 optional
- Encoding bit rate: AAC: 48000-320000 adjustable/AAC+: 24000-48000 adjustable/AAC++: 12000-32000 adjustable/MP3: 64000-320000 adjustable/MP2: 64000-320000 adjustable/ AC3: 40000-640000 adjustable
- Digital volume: -50 to 50 adjustable
- RTSP stream uses G711A encoding: disabled/enabled optional

OSD:
- Transparency: 0-128 adjustable
- Type: Text/Picture/Scrolling Text/Time
- Area: 4 areas available
- X coordinate: 0-1920
- Y coordinate: 0-1080
- LOGO: Can upload 4 LOGO for selection
- Font size: 8-72
- Background color: transparent/white/black
- Font color: RGB color optional

General:
- Network: Dual Gigabit network
- Configuration management: configuration management through WEB
- For ONVIF: Support for ONVIF to find and browse videos
- Power supply: 12V/DC, 2A
- Power consumption: 5W
- Working temperature: -20℃+60℃
- Operating humidity: <90%, no condensation
- Product Size: 14.1 x 3.5 x 10.2 cm

Package Included:
- 1 x Set of Video Transcoder
