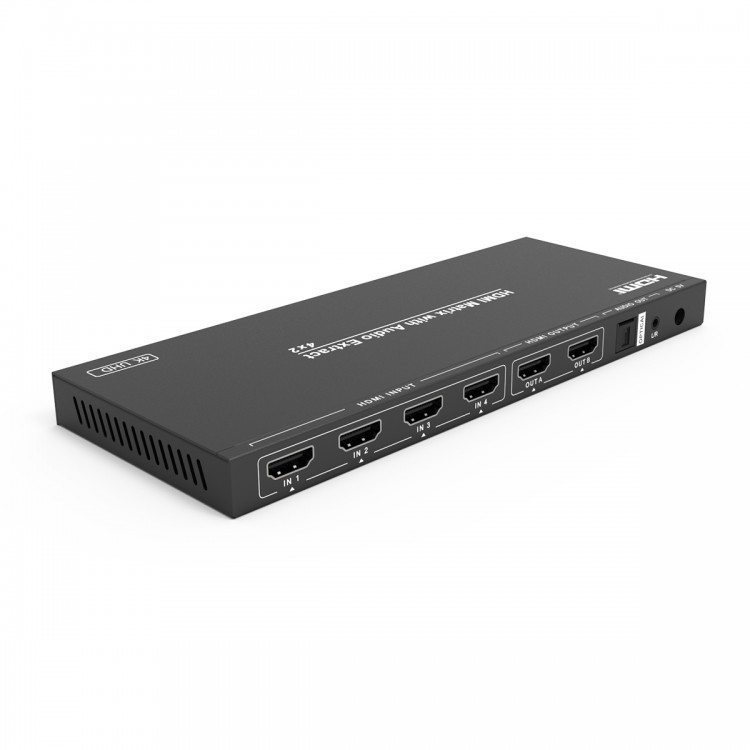

4x2 HDMI Matrix 4K Switch Splitter with Audio Extractor IR Remote Control HDM-A42A
Description:
The 4x2 HDMI Matrix simultaneously four routes HDMI sources to two HDMI displays. It supports resolution up to 4K2K@50/60Hz YCbCr 4:2:0 and HDCP 2.2. This product supports audio extract from output A or output B port to optical and analog output and can be selected AUTO, COPY and STD modes EDID control. It features flexible control through on-panel buttons, IR remote control.
Features:
- HDMI 1.4b, HDCP2.2/HDCP1.4 and DVI 1.0 compliant.
- Supports HDMI resolution the maximum up to 4K2K@50/60Hz (4:2:0).
- Supports digital and analog audio extract output from output A or output B.
- EDID can be selected AUTO, COPY and STD mode via selector on panel.
- Supports analog audio PCM 2.0.
- Supports optical audio pass-through format including LPCM 2.0/2.1CH, Dolby 5.1, Dolby True HD, Dolby DD+, DTS 5.1, DTS-ES 6/DTS-HDMA 5.1, DTS HD-HRA 5.1.

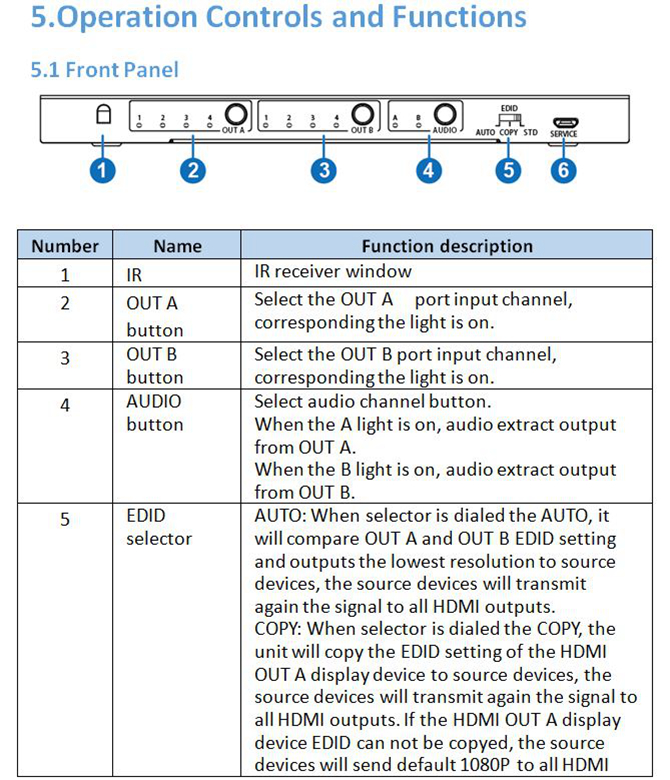

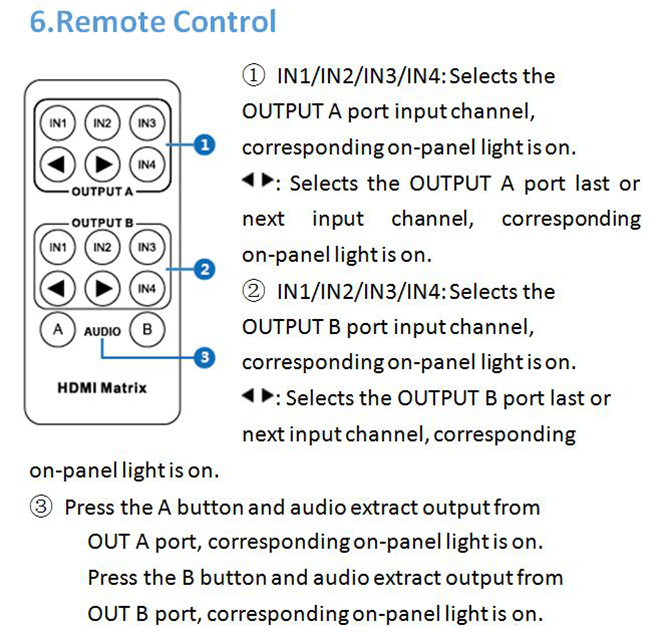

- Control via on-panel Button and IR remote control.
Package Included:
- 1 x HDMI Matrix 4x2 with Audio Extractor
- 1 x 5V/1A Power Adapter
- 2 x Mounting Ears
- 1 x Matrix IR Remote Control
- 1 x User Manual
