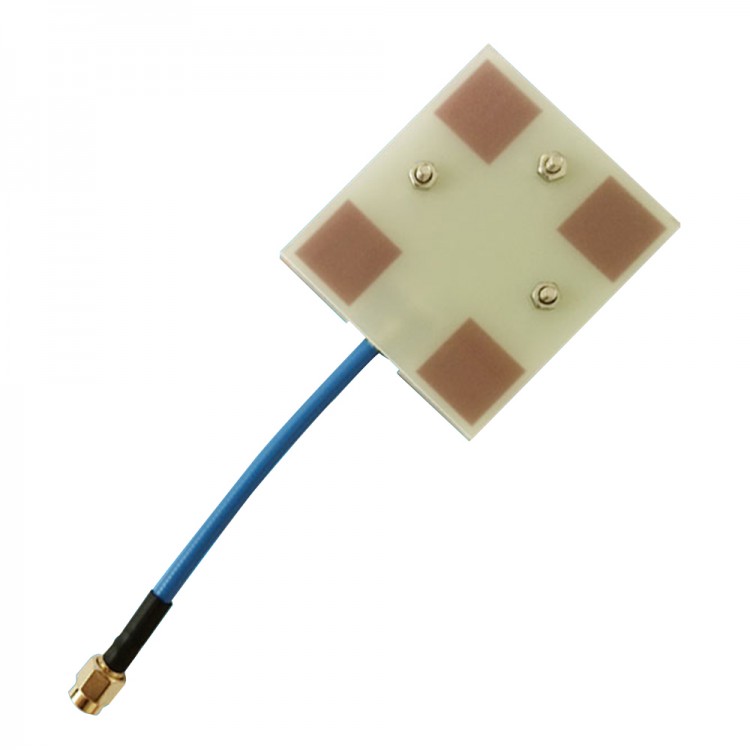

5.8g 14dbi Pad Antenna Fixed Wing Multicopter Telemetry Array Antenna High Gain (Hole Connector)

Availability: Out Of Stock

  • Price:$10.90
  • Price in reward points: 109 Reward Points: 1
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $10.68 $10.46 $10.14 $9.70 Contact US
Quantity:

5.8g 14dbi Pad Antenna Fixed Wing Multicopter Telemetry Array Antenna High Gain (Hole Connector)

Description:

- 5.8g 14dbi pad antenna is a 5100-5900MHz customized pad antenna, applicated in 5.8GHz telemtry system, line polarity design, can be used as horizental or prependicular polarity use.
- Especially designed for multicopter, designed for 5100-5900MHz band, high gain low standing-wave ratio , impact antenna, imported feeder line can be bent at any angles, high strength easy operation, adopting wide band technology design
- 5.8G video image transmission system
- H and E side wide covering angle
- High gain
- Meet RoHS standard

Parameters:
- Type: 14DB pad antenna
- Frequency range: 5100-5900MHz
- Gain: 14dBi
- Standing wave ratio:<=1.5
- 3dB horizental lobe width: 40degree
- 3dB prependicular lobe width: 37degree
- Polarity mode: horizental or prependicular polarity
- Front to back ratio: 25dB
- First side lobe supression: >13dB
- Max power: 50W
- Resistance: 50ohm
- Lightening protection: DC Grounded
- Interface type: RPMSA male or Client specify
- Antenna dimension: 61.5*55*9mm
- Antenna weightL 30g
- Antenna material: compound elecromagnetic material board
- Working temp: -40---65degree
