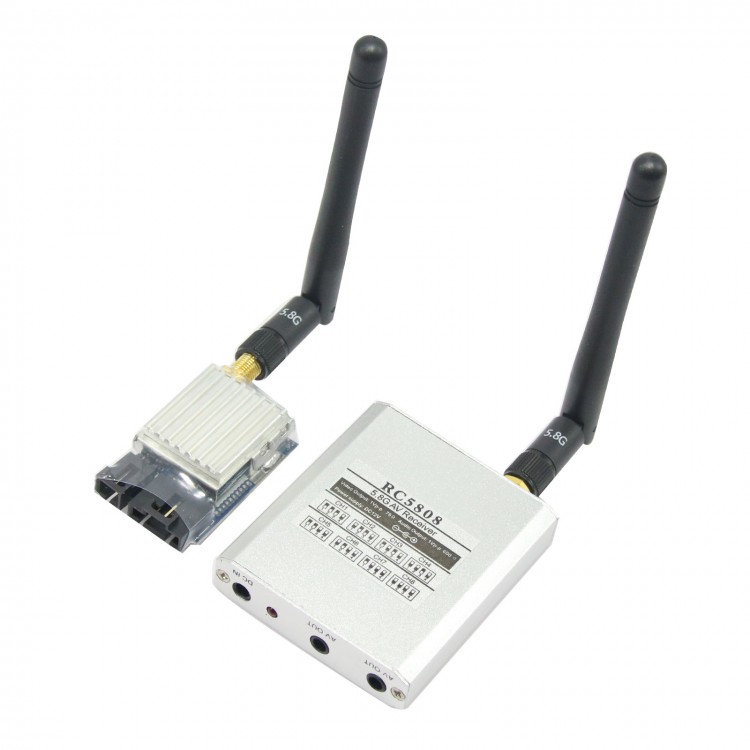

5.8G 200mw Video AV Audio Video Transmitter + RC5808 Receiver Sender FPV 2.0Km Range
Transimtter- TS351
- 5.8G broadband audio and video synchronization FM transmitter
- Small size SMD package: 55 × 26 × 17 mm
- Low power consumption: 12V 150mA
- High Output Power: 23dBm (typical)
- Built-in high-frequency PLL stability
- Low harmonic radiation
- Direct input analog audio and video signals
- 8-channel transmitter
- Light weight: 30 grams with antenna
Receiver -RC5808
- Receive Frequency: 5725-5865MHz; 8 channels
- Receiver sensitivity:-90dBm
- Frequency Control: Built-in PLL
- Dual AV output: output analog audio and video signals directly
- Antenna interface: SMA (the pin)
- Supply voltage: 6.5-15V
- Supply Current: 150mA
- Dimension: 61 * 52 * 13mm; aluminum alloy
Working frequency:
- CH1:5705 CH2:5685
- CH3:5665 CH4:5645
- CH5:5885 CH6:5905
- CH7:5925 CH8:5945
Applications
- Rc Hobbies
- Remote control aircraft
- Remote spacecraft
- Remote control toys
